301JDN36

301JDN36

SKU PRE6480767
by Precision Twist Drill
Primary Use: Possible Use:

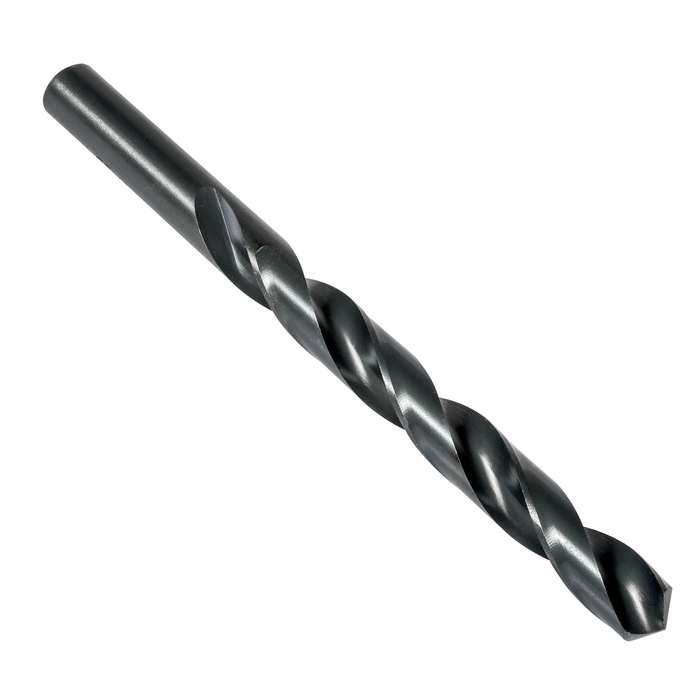

Jobber length drill with straight shank, diameter 0.1065" (N36) with an overall length of 2.1/2" and flute length of 1.7/16" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$1.01 - $1.01
$1.01
$1.01 - $1.01
$1.01
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1065

Cutting Diameter - mm (DC): 2.71

Drill Point Angle - deg: 118

Flute Length: 1.4375

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.5

Connetion Diameter: 0.1065

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 46480767

EAN: 8032744126502

MFG Part Number: 6480767
