301JDN32

301JDN32

SKU PRE6480772
by Precision Twist Drill
Primary Use: Possible Use:

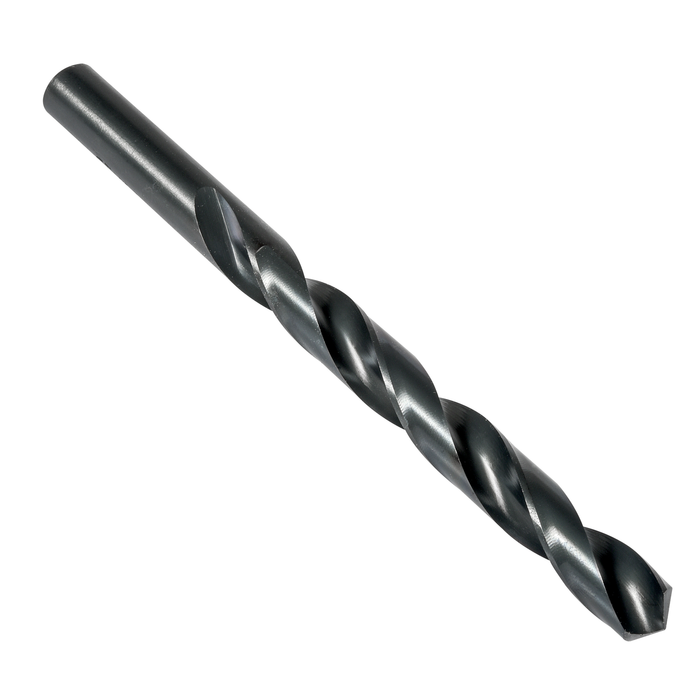

Jobber length drill with straight shank, diameter 0.1160" (N32) with an overall length of 2.3/4" and flute length of 1.5/8" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$1.01 - $1.01
$1.01
$1.01 - $1.01
$1.01
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.116

Cutting Diameter - mm (DC): 2.95

Drill Point Angle - deg: 118

Flute Length: 1.625

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.75

Connetion Diameter: 0.116

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 46480772

EAN: 8032744126557

MFG Part Number: 6480772
