301JDB

301JDB

SKU PRE6480813
by Precision Twist Drill
Primary Use: Possible Use:

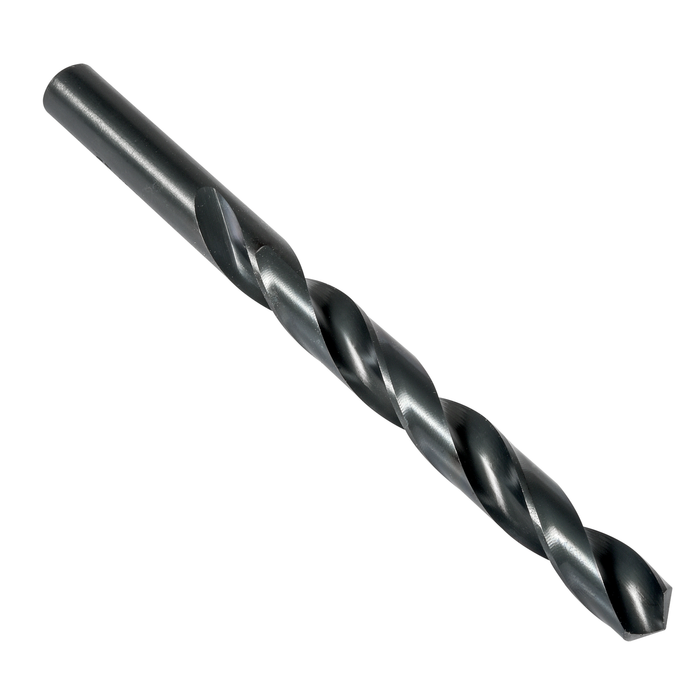

Jobber length drill with straight shank, diameter 0.2380" (B) with an overall length of 4" and flute length of 2.3/4" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$2.39 - $2.39
$2.39
$2.39 - $2.39
$2.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.238

Cutting Diameter - mm (DC): 6.05

Drill Point Angle - deg: 118

Flute Length: 2.75

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.0

Connetion Diameter: 0.238

Tool Direction: Right

Shank: Cylindrical shank

Letter: B

Grade: Steam Tempered

EDP: 46480813

EAN: 8032744126960

MFG Part Number: 6480813
