301JD17/64

301JD17/64

SKU PRE6480820
by Precision Twist Drill
Primary Use: Possible Use:

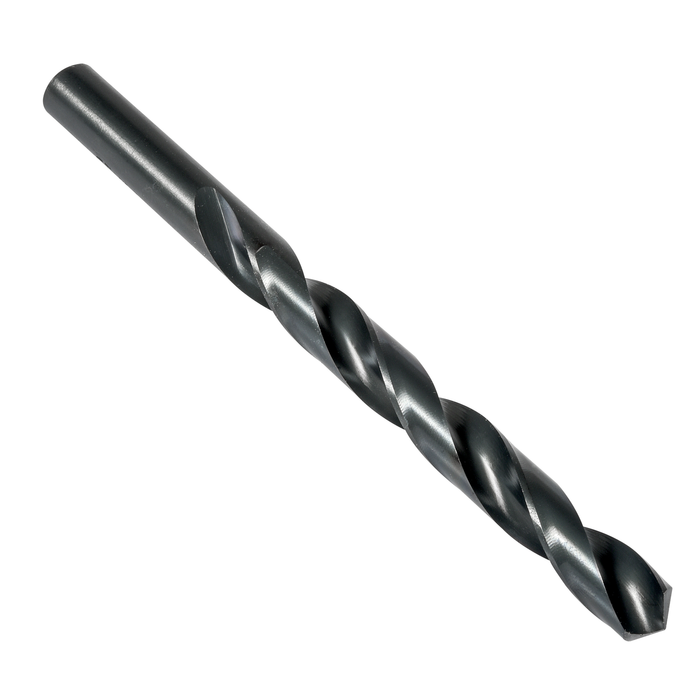

Jobber length drill with straight shank, diameter 0.2656" (17/64) with an overall length of 4.1/8" and flute length of 2.7/8" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$2.40 - $2.40
$2.40
$2.40 - $2.40
$2.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.2656

Cutting Diameter - mm (DC): 6.75

Drill Point Angle - deg: 118

Flute Length: 2.875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.125

Connetion Diameter: 0.2656

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 17/64

Grade: Steam Tempered

EDP: 46480820

EAN: 8032744127035

MFG Part Number: 6480820
