301JDX

301JDX

SKU PRE6480845
by Precision Twist Drill
Primary Use: Possible Use:

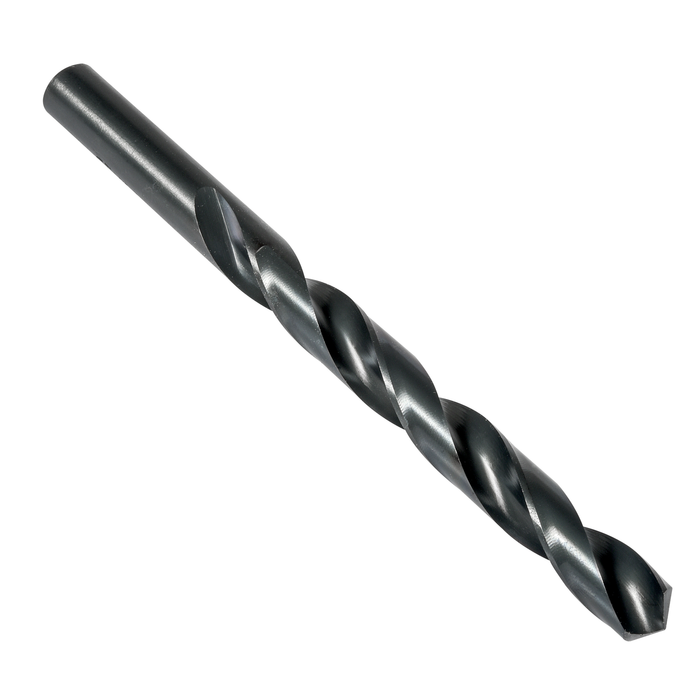

Jobber length drill with straight shank, diameter 0.3970" () with an overall length of 5.1/8" and flute length of 3.3/4" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$6.81 - $6.81
$6.81
$6.81 - $6.81
$6.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.397

Cutting Diameter - mm (DC): 10.08

Drill Point Angle - deg: 118

Flute Length: 3.75

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 5.125

Connetion Diameter: 0.397

Tool Direction: Right

Shank: Cylindrical shank

Letter: X

Grade: Steam Tempered

EDP: 46480845

EAN: 8032744127288

MFG Part Number: 6480845
