311SM7/64

311SM7/64

SKU PRE6480883
by Precision Twist Drill
Primary Use: Possible Use:

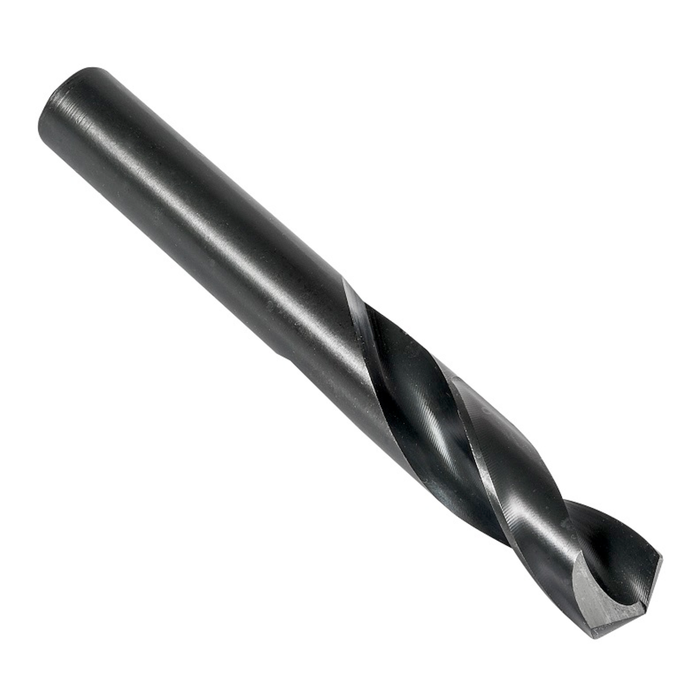

Stub length drill with straight shank, diameter 0.1094" (7/64) with an overall length of 1.13/16" and flute length of 13/16" according to ANSI standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$1.17 - $1.17
$1.17
$1.17 - $1.17
$1.17
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1094

Cutting Diameter - mm (DC): 2.78

Drill Point Angle - deg: 135

Flute Length: 0.8125

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.8125

Connetion Diameter: 0.1094

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 7/64

Grade: Steam Tempered

EDP: 46480883

EAN: 8032744127660

MFG Part Number: 6480883
