A002S5/32

A002S5/32

SKU DOR6524838
by Dormer Pramet
Primary Use: Possible Use:

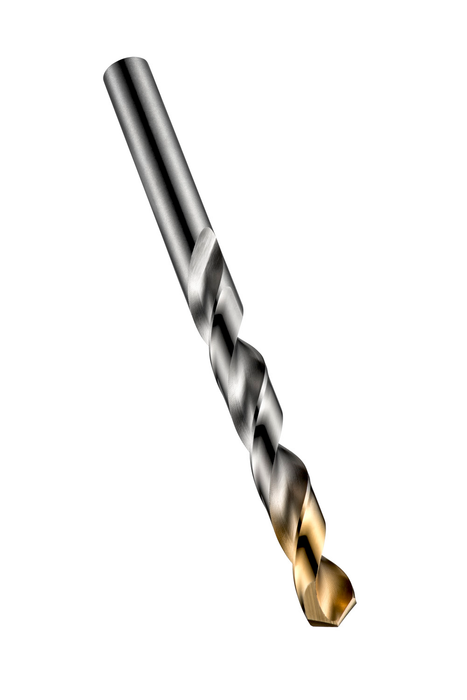

Jobber length drill with straight shank, diameter 0.1563" (5/32) with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel supplied in 2 piece blister

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$7.99 - $7.99
$7.99
$7.99 - $7.99
$7.99
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1563

Cutting Diameter - mm (DC): 3.97

Drill Point Angle - deg: 118

Flute Length: 1.6929

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.9528

Connetion Diameter: 0.1563

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/32

Grade: Bright/TiN

EDP: 46524838

EAN: 7320760673607

MFG Part Number: 6524838
