A002S3/16

A002S3/16

SKU DOR6524863
by Dormer Pramet
Primary Use: Possible Use:

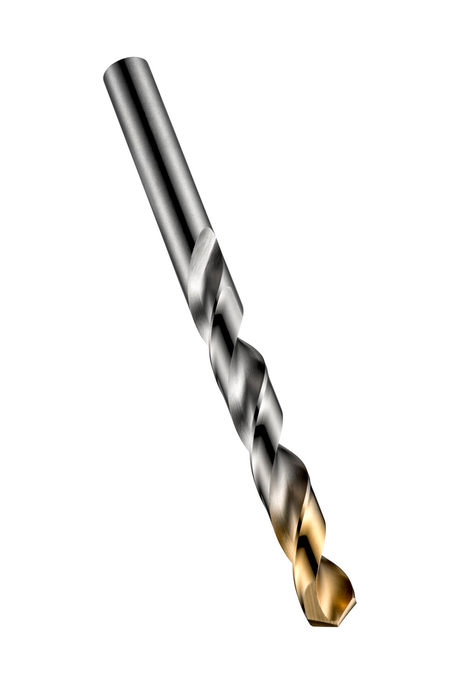

Jobber length drill with straight shank, diameter 0.1875" (3/16) with an overall length of 86mm and flute length of 52mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel supplied in 2 piece blister

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$8.37 - $8.37
$8.37
$8.37 - $8.37
$8.37
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Drill Point Angle - deg: 118

Flute Length: 2.0472

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.3858

Connetion Diameter: 0.1874

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/16

Grade: Bright/TiN

EDP: 46524863

EAN: 7320760673652

MFG Part Number: 6524863
