S2313.0XD6

S2313.0XD6

SKU DOR6706489
by Dormer Pramet
Primary Use:

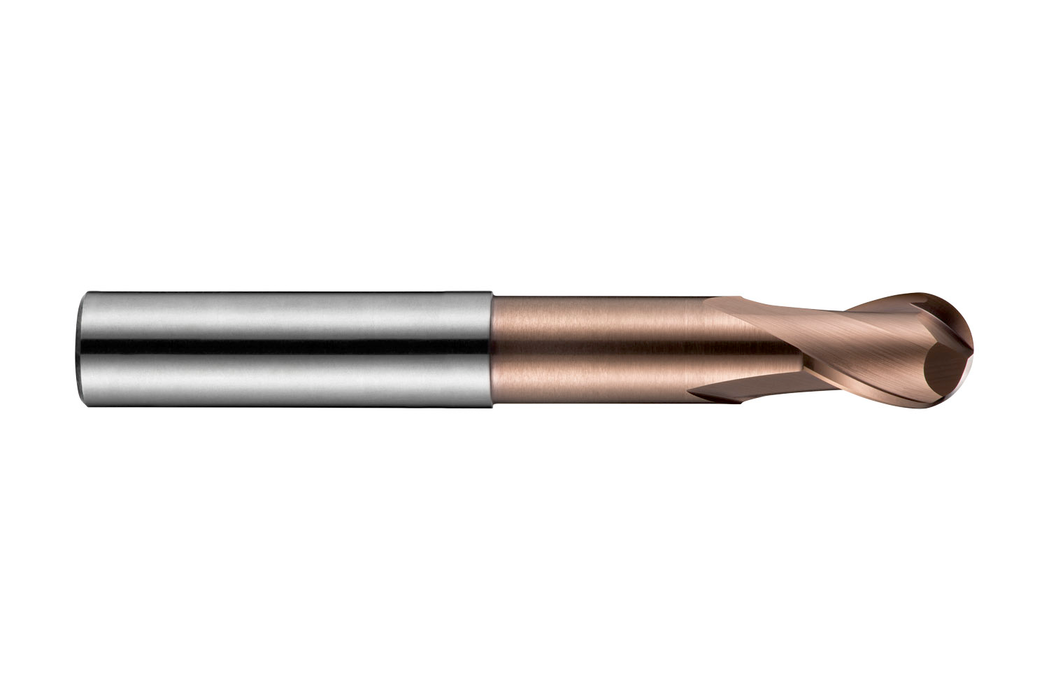

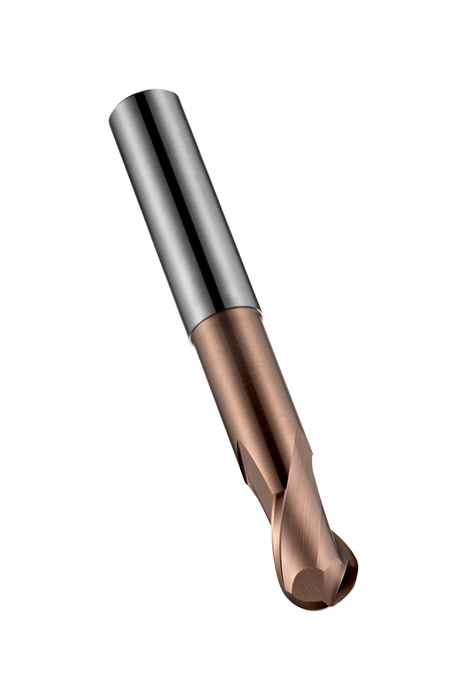

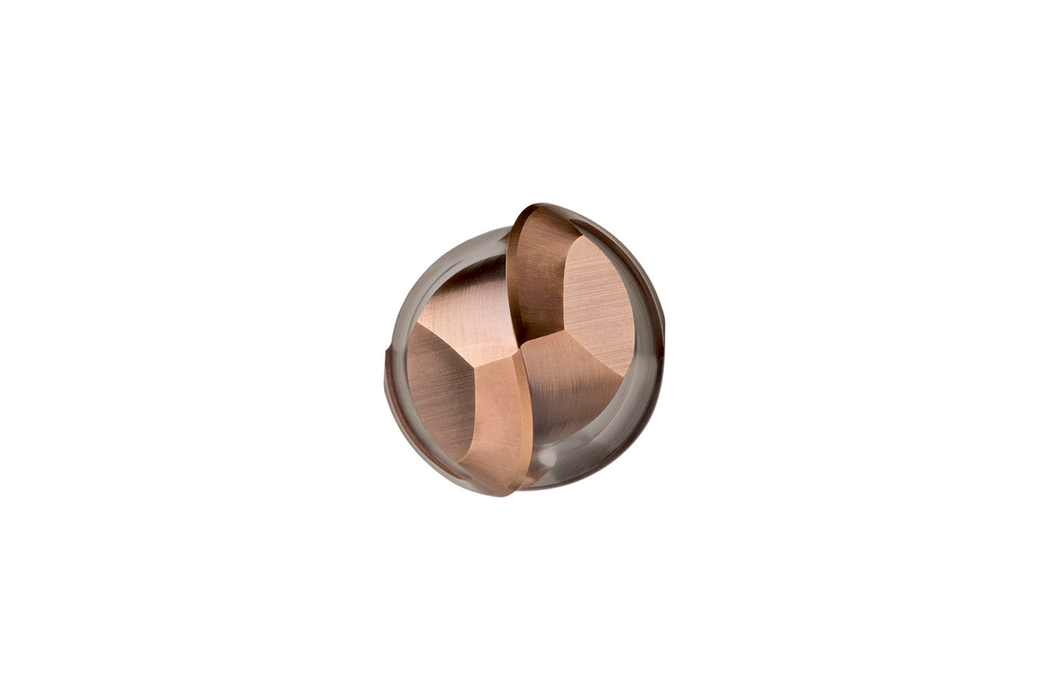

Extra short series ball-nose end mill with 2 flutes, diameter 3mm with 5mm length of cut, 75mm overall length, 21mm reach with neck relief and 1.5mm full profile radius, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 30° helix and 3° rake angle for copy milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$76.11 - $76.11
$76.11
$76.11 - $76.11
$76.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

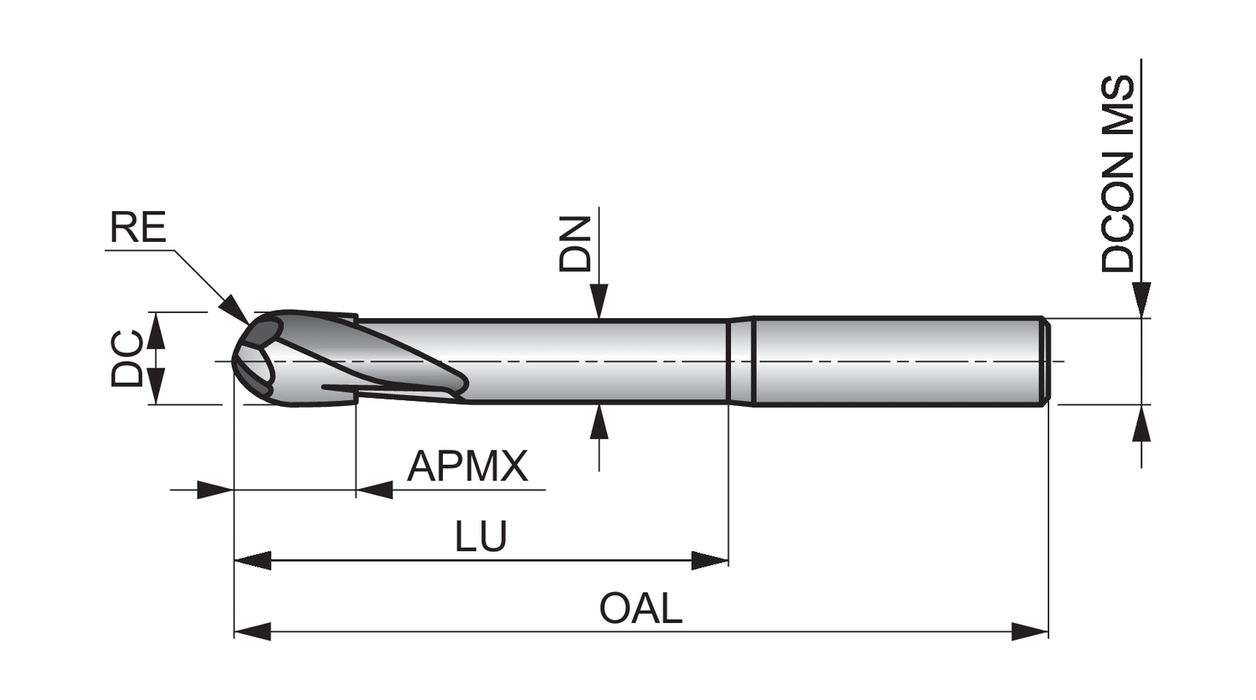

Material: HM

Cutting Diameter - in (DC): 0.1181

Cutting Diameter - mm (DC): 3.0

Overall Length (OAL): 2.9528

Connetion Diameter: 0.2362

Max. Depth of Cut: 0.1969

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

Corner Radius - in: 0.0591

Corner Radius - mm: 1.5

Cutting Edge Count: 2

EDP: 46706489

EAN: 7320760680384

MFG Part Number: 6706489
