S23116.0

S23116.0

SKU DOR6706498
by Dormer Pramet
Primary Use:

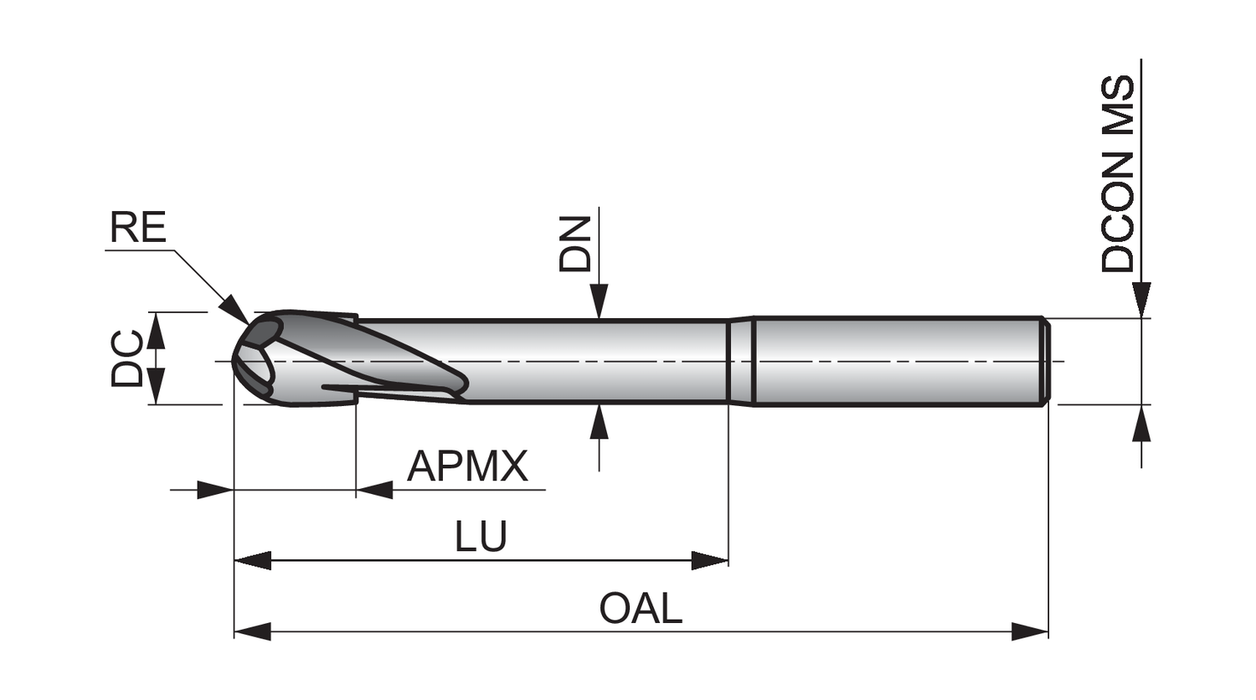

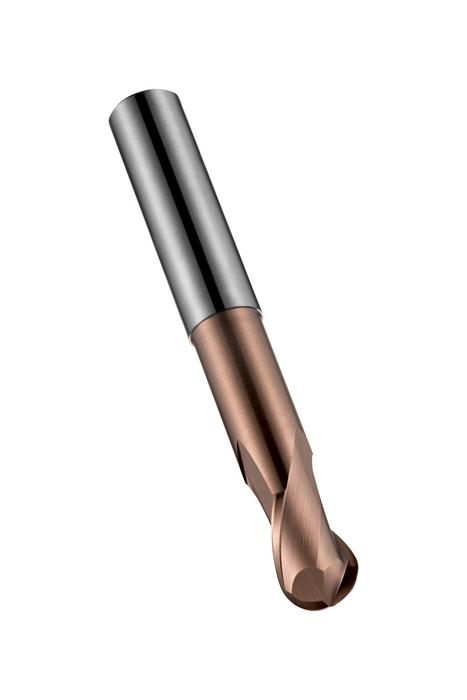

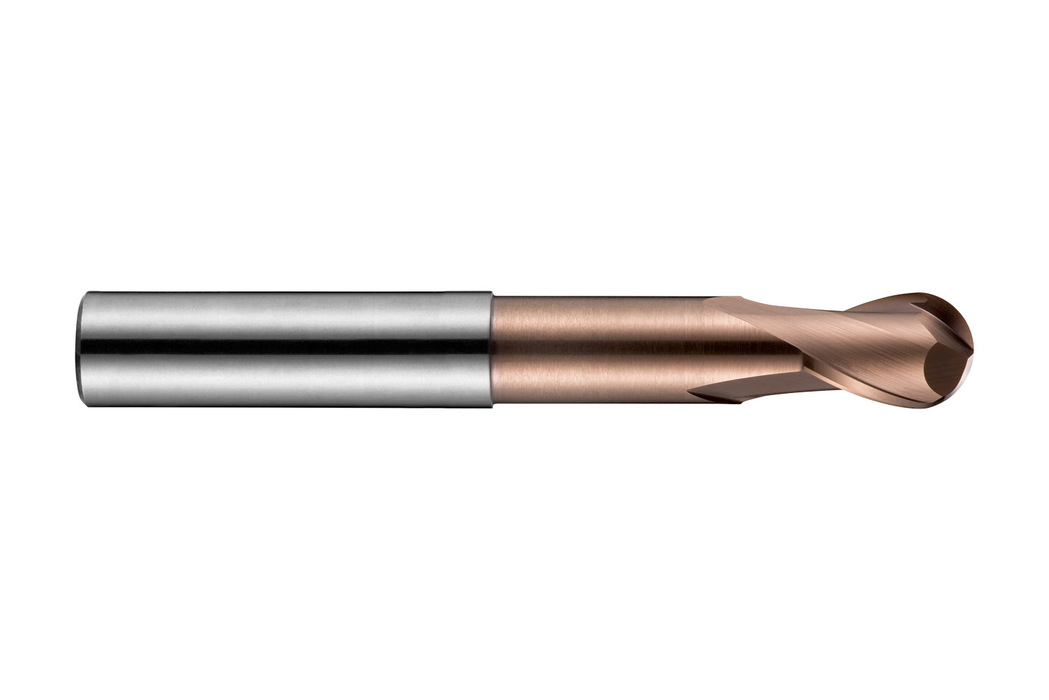

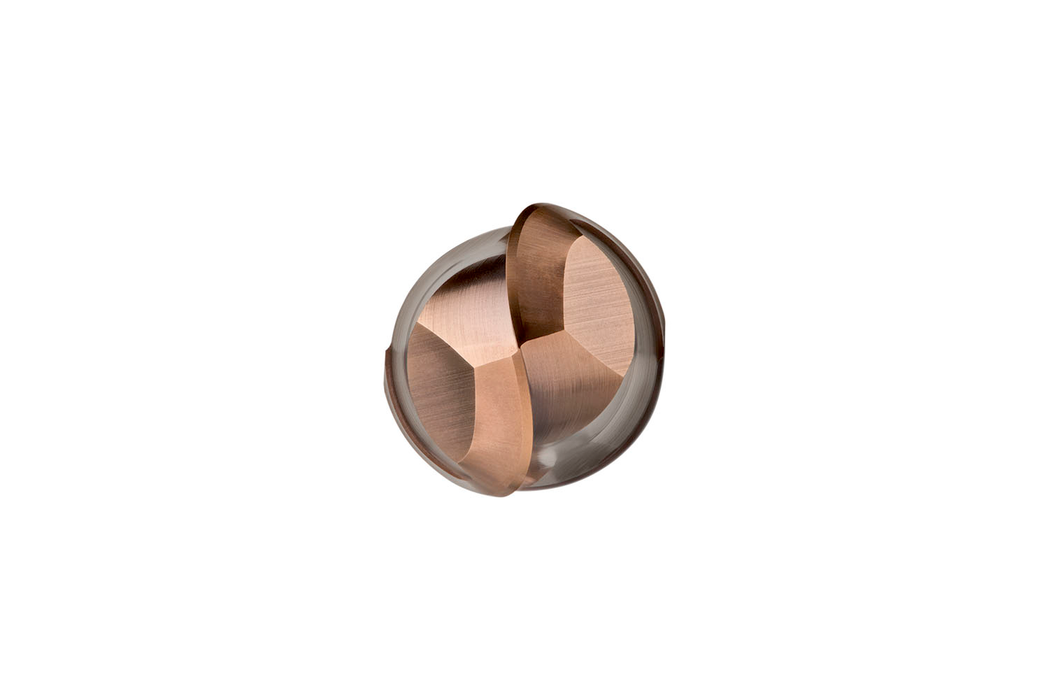

Extra short series ball-nose end mill with 2 flutes, diameter 16mm with 32mm length of cut, 125mm overall length, 80mm reach with neck relief and 8mm full profile radius, according to DORMER standard with a 16mm plain shank, solid carbide with TiSiN coating, 30° helix and 3° rake angle for copy milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$355.73 - $355.73
$355.73
$355.73 - $355.73
$355.73
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Overall Length (OAL): 4.9213

Connetion Diameter: 0.6299

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

Corner Radius - in: 0.315

Corner Radius - mm: 8

Cutting Edge Count: 2

EDP: 46706498

EAN: 7320760680476

MFG Part Number: 6706498
