S6294.0

S6294.0

SKU DOR6706531
by Dormer Pramet
Primary Use:

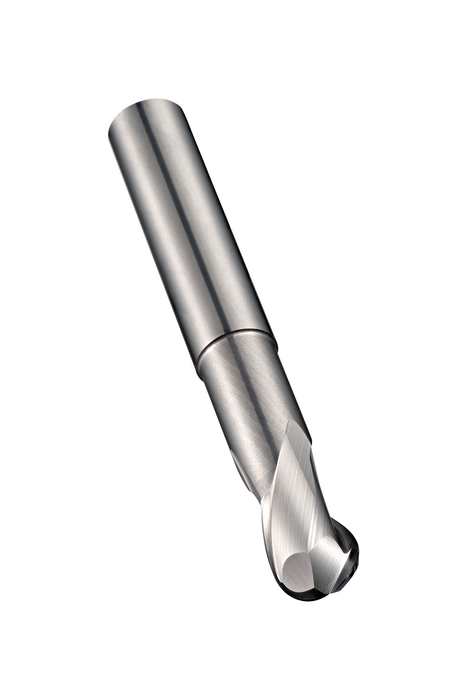

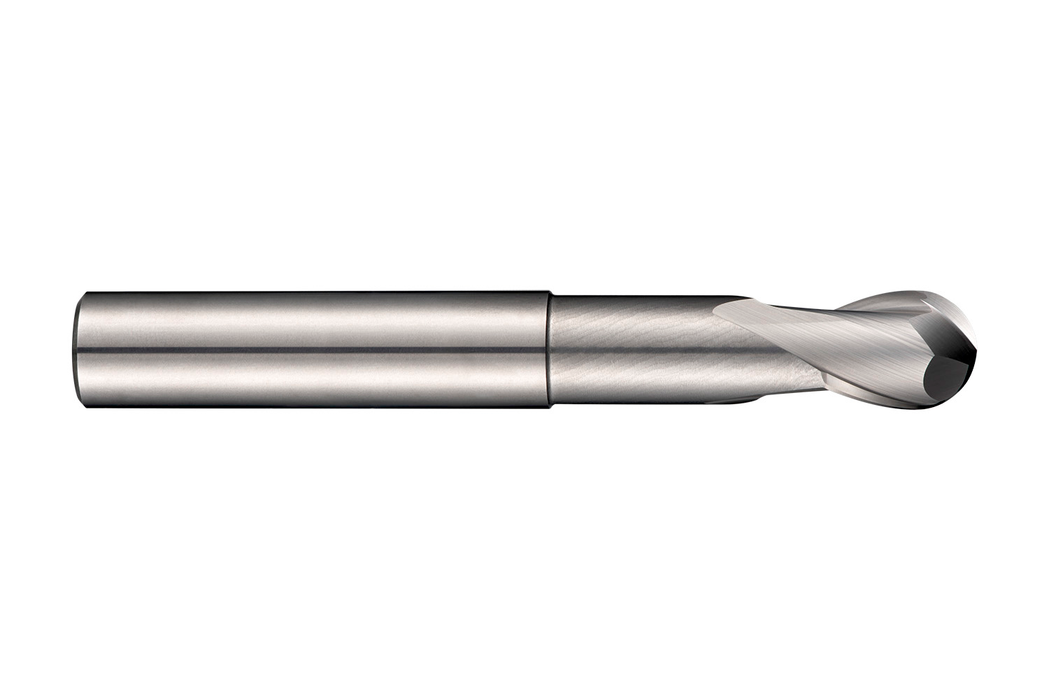

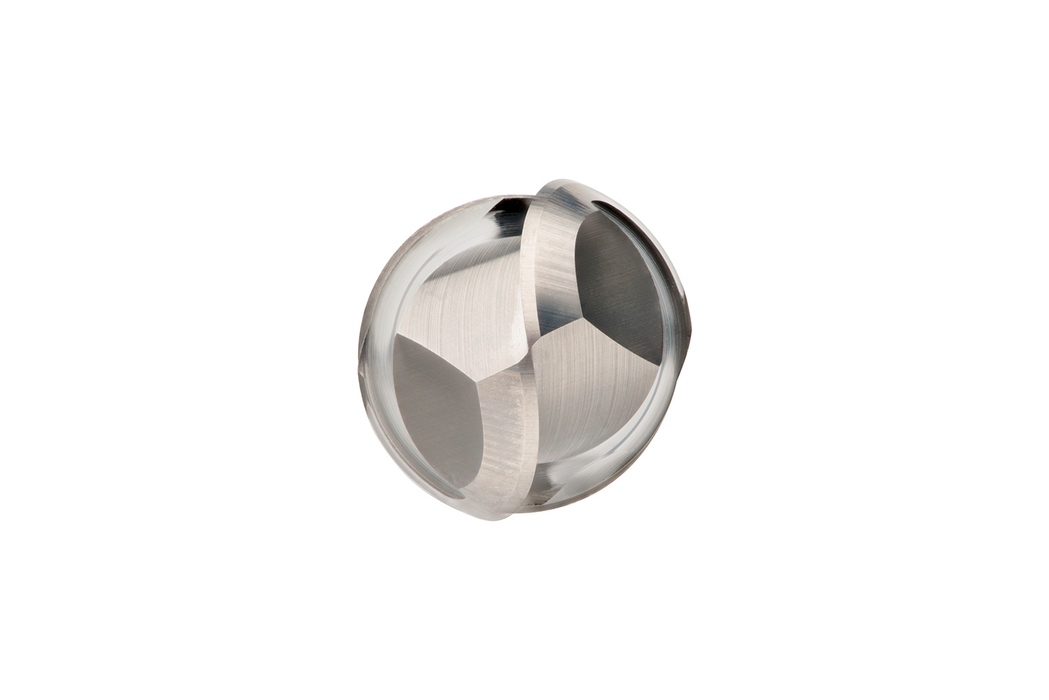

Extra short series ball-nose end mill with 2 flutes, diameter 4mm with 6mm length of cut, 57mm overall length, 20mm reach with neck relief and 2mm full profile radius, according to DORMER standard with a 6mm plain shank, solid carbide with polished finish, 30° helix and 15° rake angle for copy milling in non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$68.71 - $68.71
$68.71
$68.71 - $68.71
$68.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

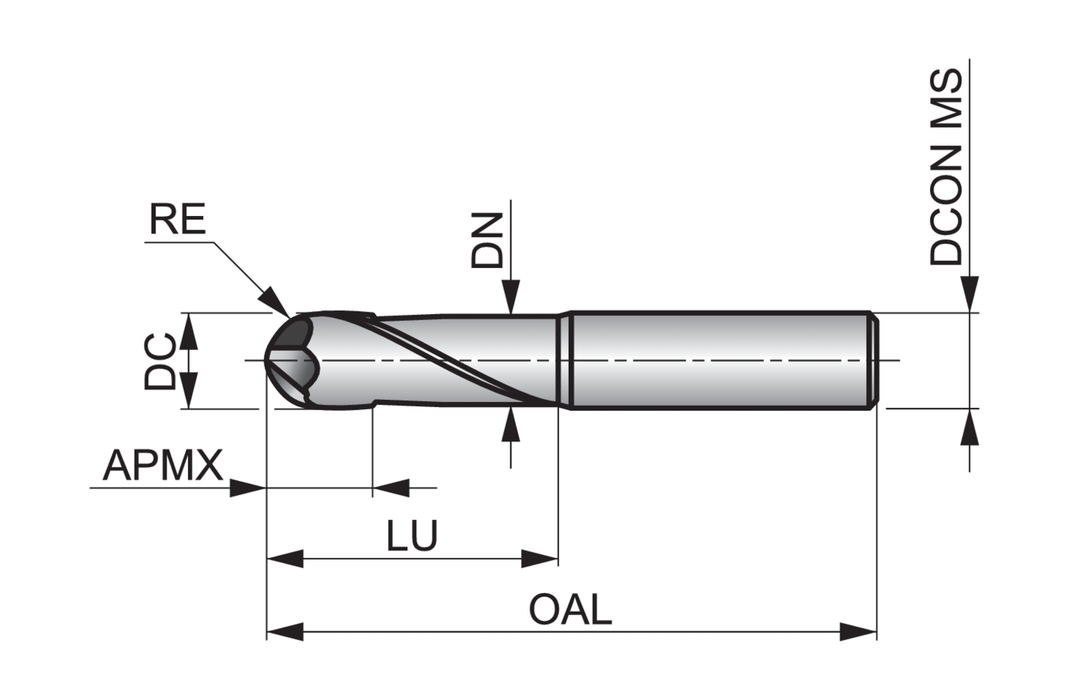

Material: HM

Cutting Diameter - in (DC): 0.1575

Cutting Diameter - mm (DC): 4.0

Overall Length (OAL): 2.2441

Connetion Diameter: 0.2362

Max. Depth of Cut: 0.2362

Shank: Cylindrical shank DIN 6535 HA

Grade: Bright

Corner Radius - in: 0.0787

Corner Radius - mm: 2

Cutting Edge Count: 2

EDP: 46706531

EAN: 7320760680803

MFG Part Number: 6706531
