S62920.0

S62920.0

SKU DOR6706538
by Dormer Pramet
Primary Use:

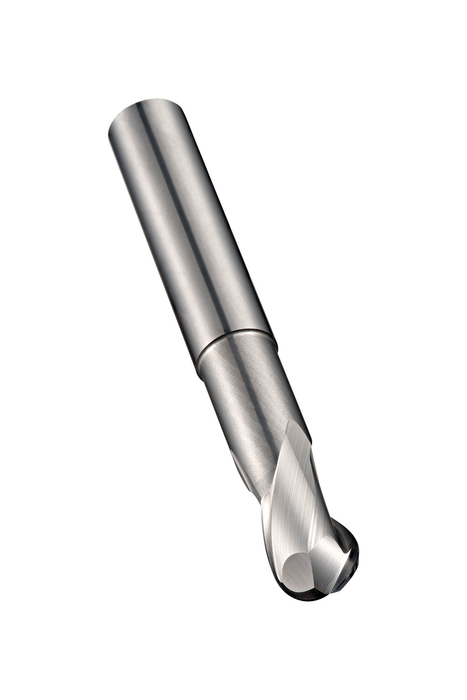

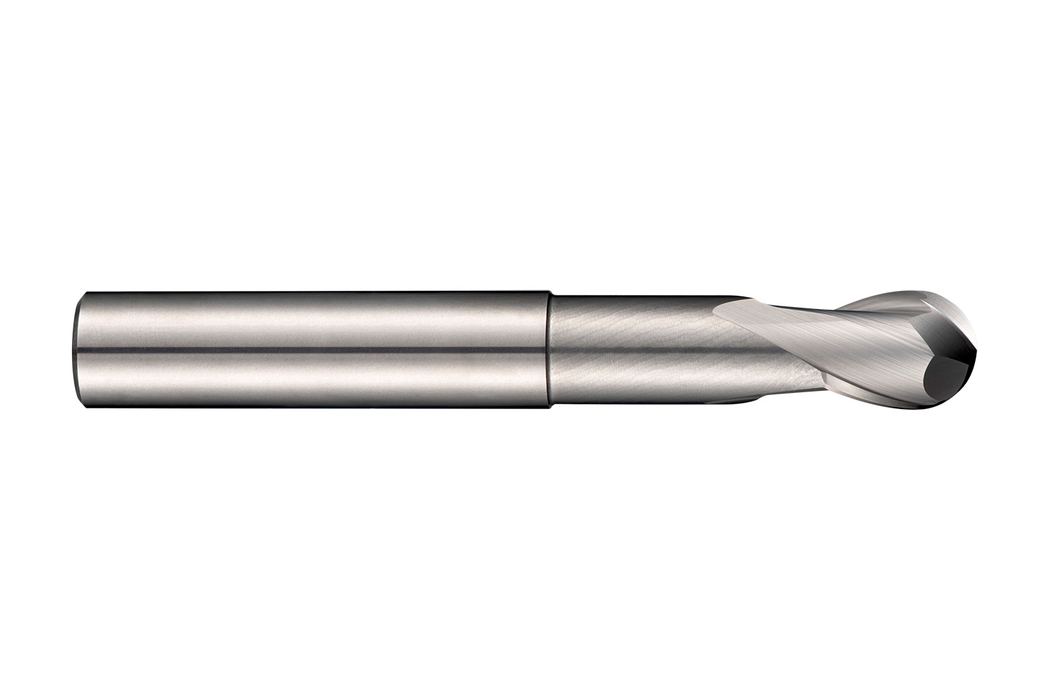

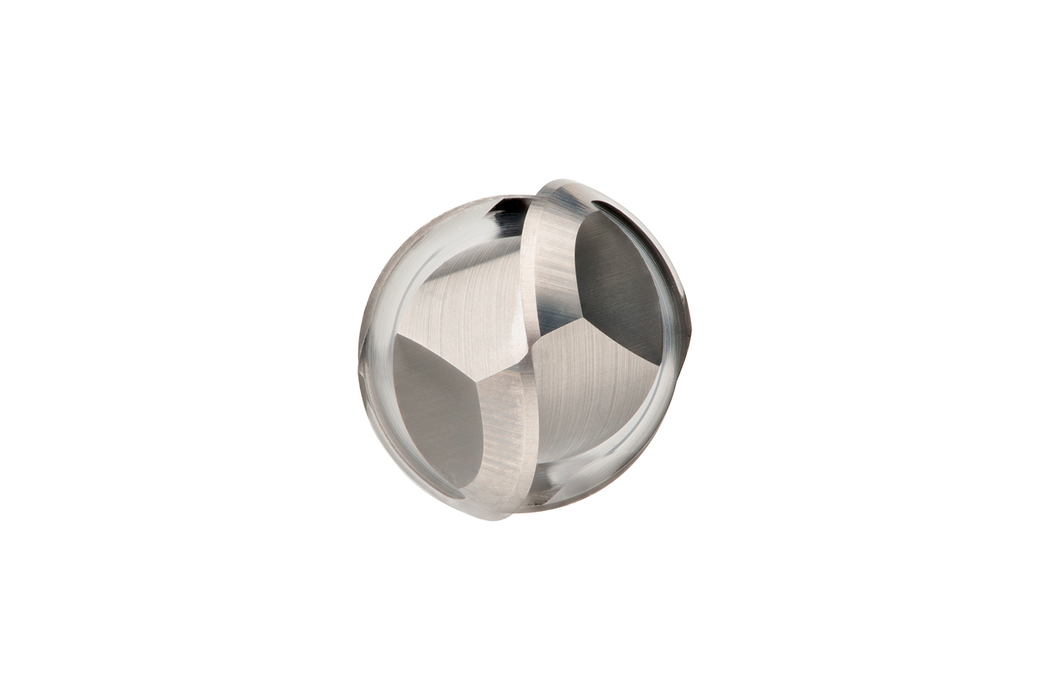

Extra short series ball-nose end mill with 2 flutes, diameter 20mm with 22mm length of cut, 100mm overall length, 50mm reach with neck relief and 10mm full profile radius, according to DORMER standard with a 20mm plain shank, solid carbide with polished finish, 30° helix and 15° rake angle for copy milling in non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$455.10 - $455.10
$455.10
$455.10 - $455.10
$455.10
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

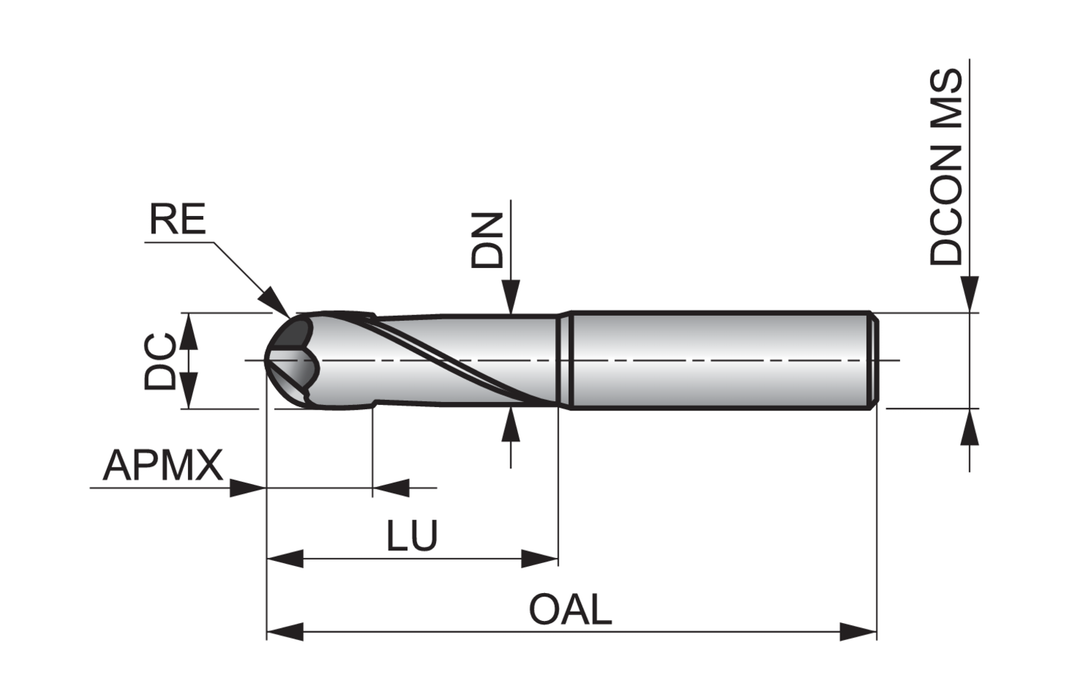

Material: HM

Cutting Diameter - in (DC): 0.7874

Cutting Diameter - mm (DC): 20.0

Overall Length (OAL): 3.937

Connetion Diameter: 0.7874

Max. Depth of Cut: 0.8661

Shank: Cylindrical shank DIN 6535 HA

Grade: Bright

Corner Radius - in: 0.3937

Corner Radius - mm: 10

Cutting Edge Count: 2

EDP: 46706538

EAN: 7320760680872

MFG Part Number: 6706538
