S6122.0

S6122.0

SKU DOR6706607
by Dormer Pramet
Primary Use:

Short series end mill with 4 flutes, diameter 2mm with 6.5mm length of cut and 50mm overall length, according to DORMER standard with a 3mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$129.50 - $129.50
$129.50
$129.50 - $129.50
$129.50
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

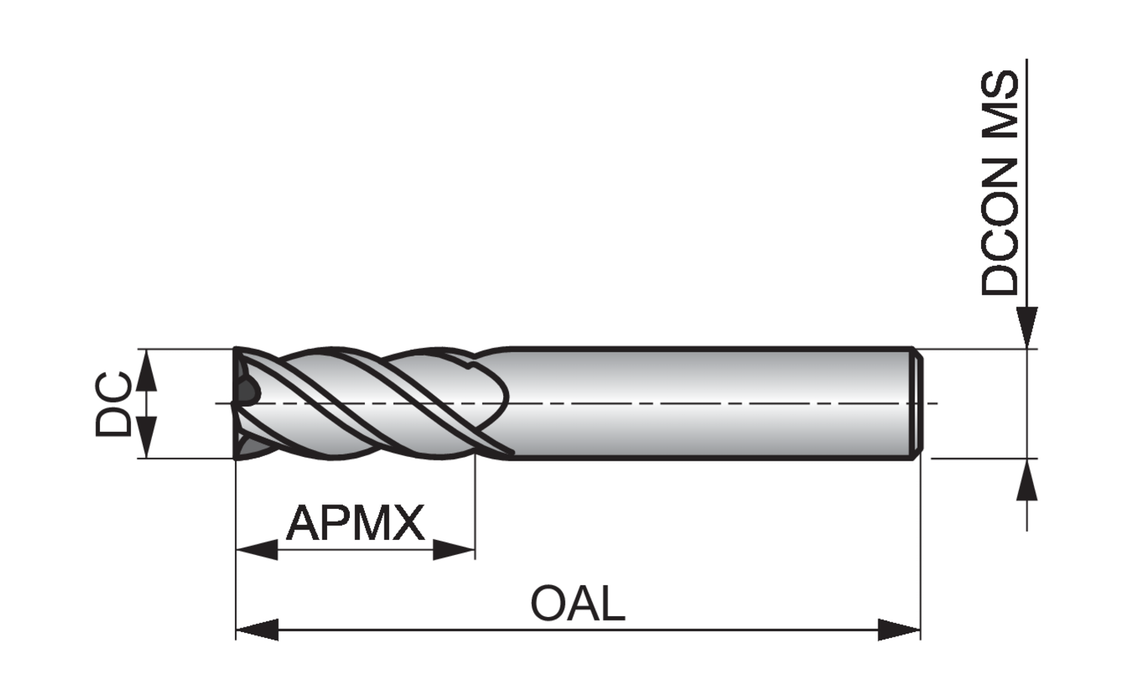

Material: HM

Cutting Diameter - in (DC): 0.0787

Cutting Diameter - mm (DC): 2.0

Overall Length (OAL): 1.9685

Connetion Diameter: 0.1181

Max. Depth of Cut: 0.2559

Shank: Cylindrical shank DIN 6535 HA

Grade: Diamond

Cutting Edge Count: 4

EDP: 46706607

EAN: 7320760681565

MFG Part Number: 6706607
