S6123.0
S6123.0
S6123.0
S6123.0

S6123.0

SKU DOR6706609
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$129.50 CAD - $129.50 CAD
$129.50 CAD
$129.50 CAD - $129.50 CAD
$129.50 CAD

Sold in packs of: 1

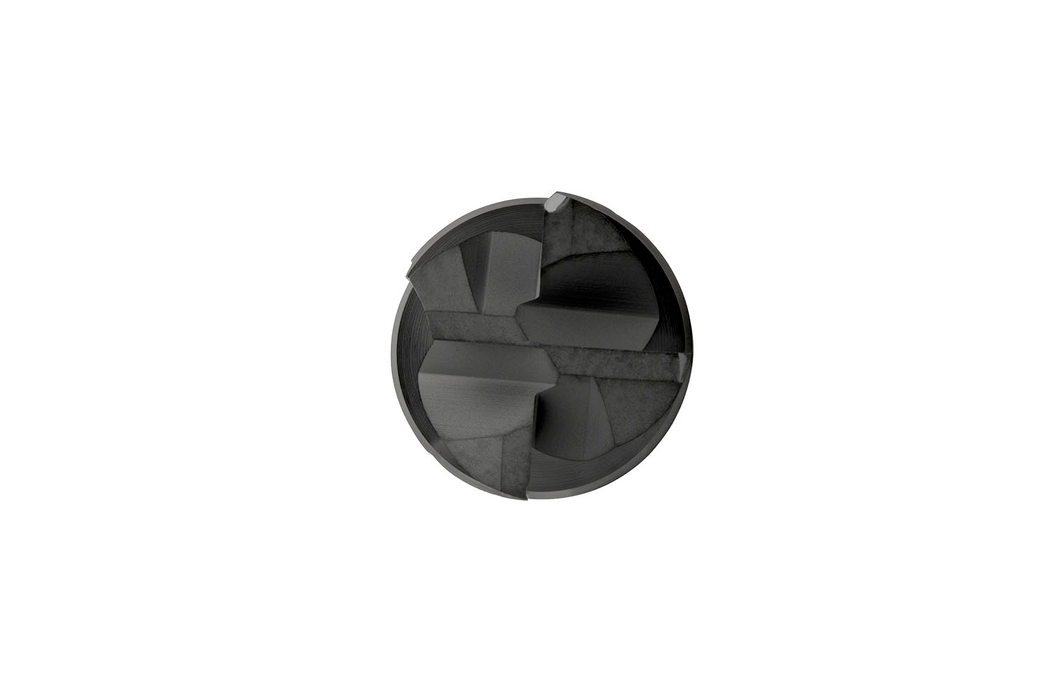

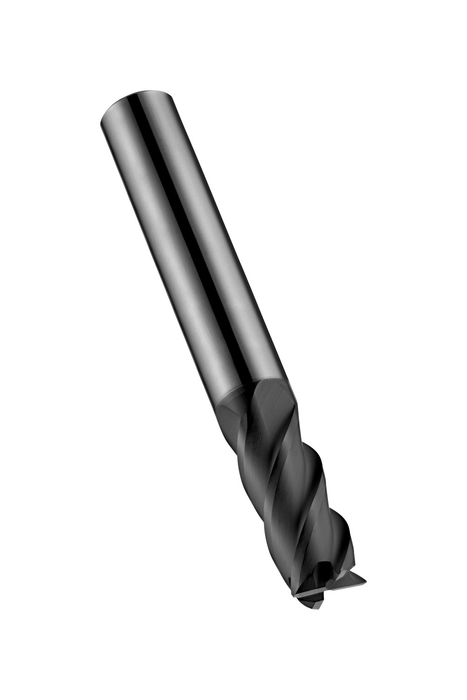

Short series end mill with 4 flutes, diameter 3mm with 9mm length of cut and 50mm overall length, according to DORMER standard with a 3mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6123.0
GradeDiamond
Product Number6706609
Product FamilyS612
Insert Geometry
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardWork Norm
Reference Numbers
EDP Number46706609
EAN7320760681589
File Type Download
S6123.0 — Line Drawing PDF Download
