SKU DOR6706615
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$368.41 CAD - $368.41 CAD
$368.41 CAD
$368.41 CAD - $368.41 CAD
$368.41 CAD

Sold in packs of: 1

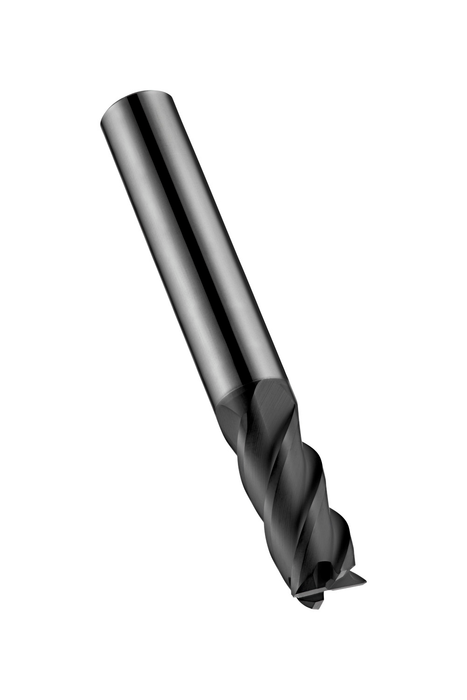

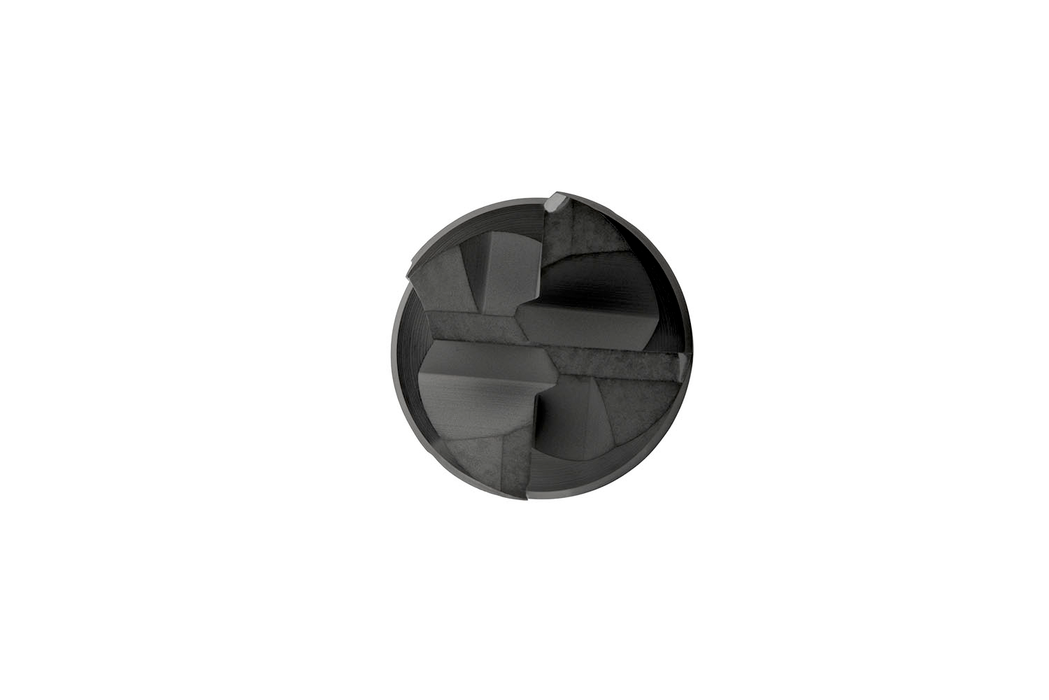

Short series end mill with 4 flutes, diameter 12mm with 25mm length of cut and 75mm overall length, according to DORMER standard with a 12mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61212.0
GradeDiamond
Product Number6706615
Product FamilyS612
Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardWork Norm
Reference Numbers
EDP Number46706615
EAN7320760681640
File Type Download
S61212.0 — Line Drawing PDF Download
