SKU DOR6706620
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.57 CAD - $84.57 CAD
$84.57 CAD
$84.57 CAD - $84.57 CAD
$84.57 CAD

Sold in packs of: 1

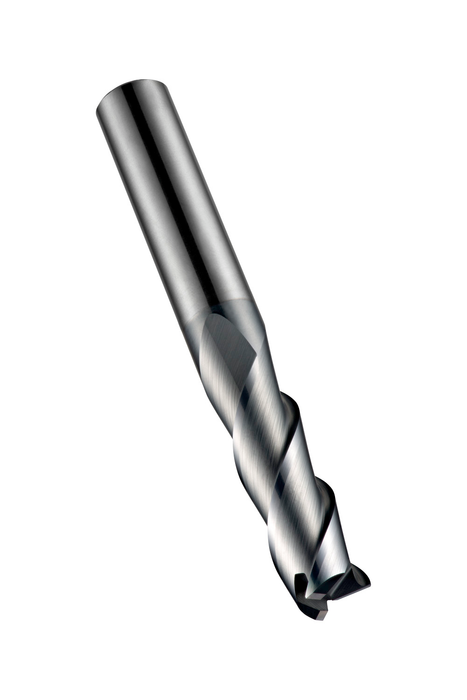

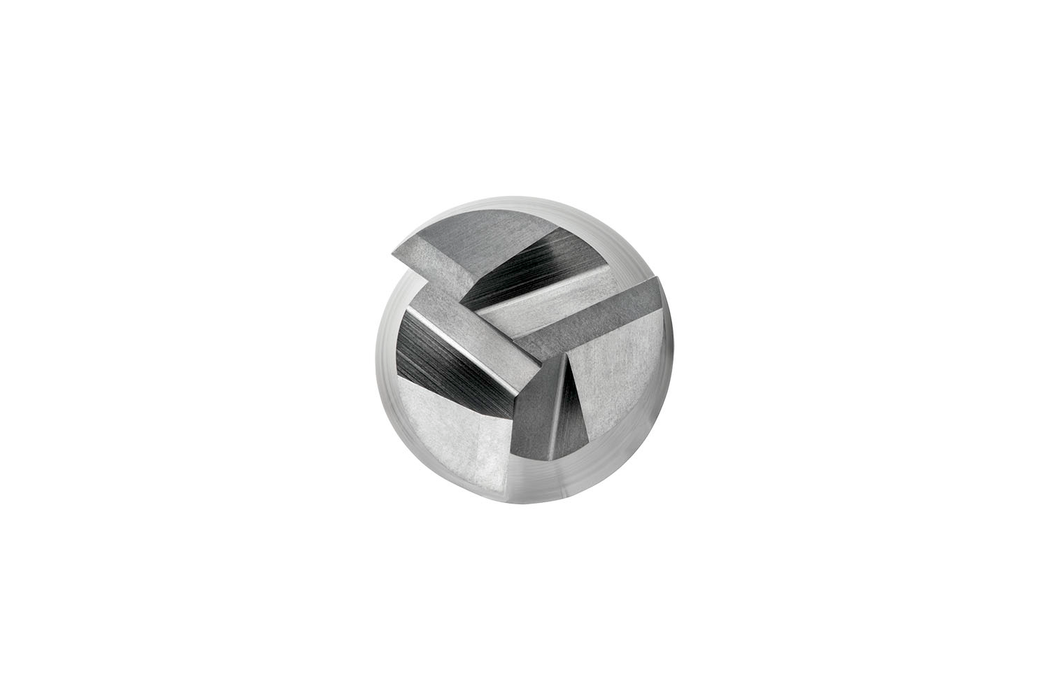

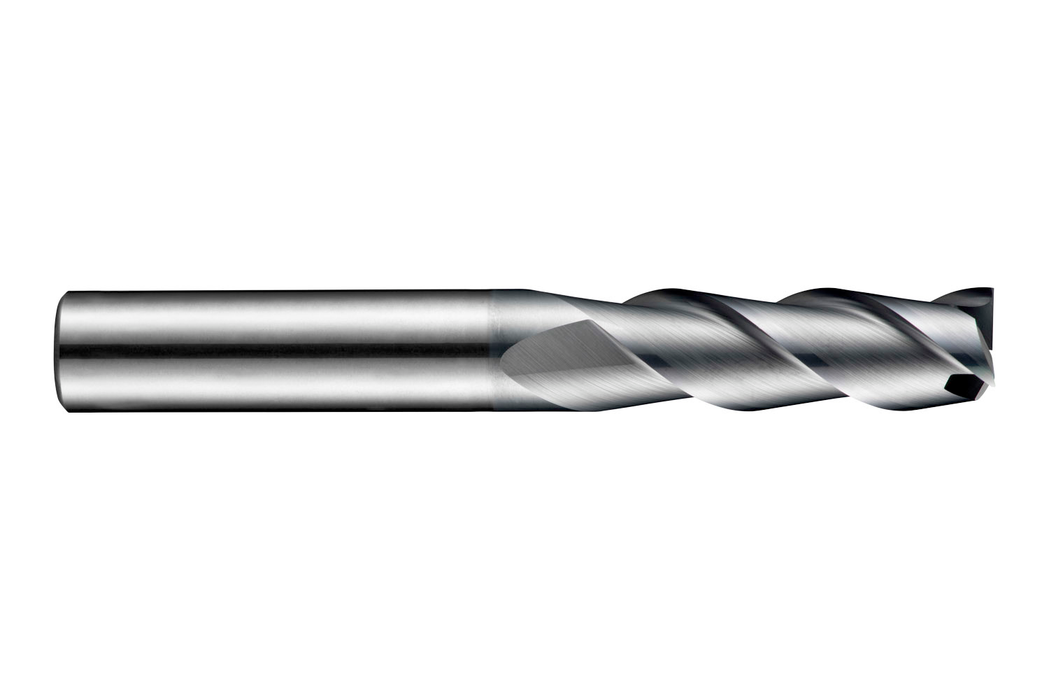

Long series end mill with 3 flutes, diameter 8mm with 31mm length of cut and 75mm overall length, according to DORMER standard with a 8mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7148.0
GradeAlCrN
Product Number6706620
Product FamilyS714
Insert Geometry

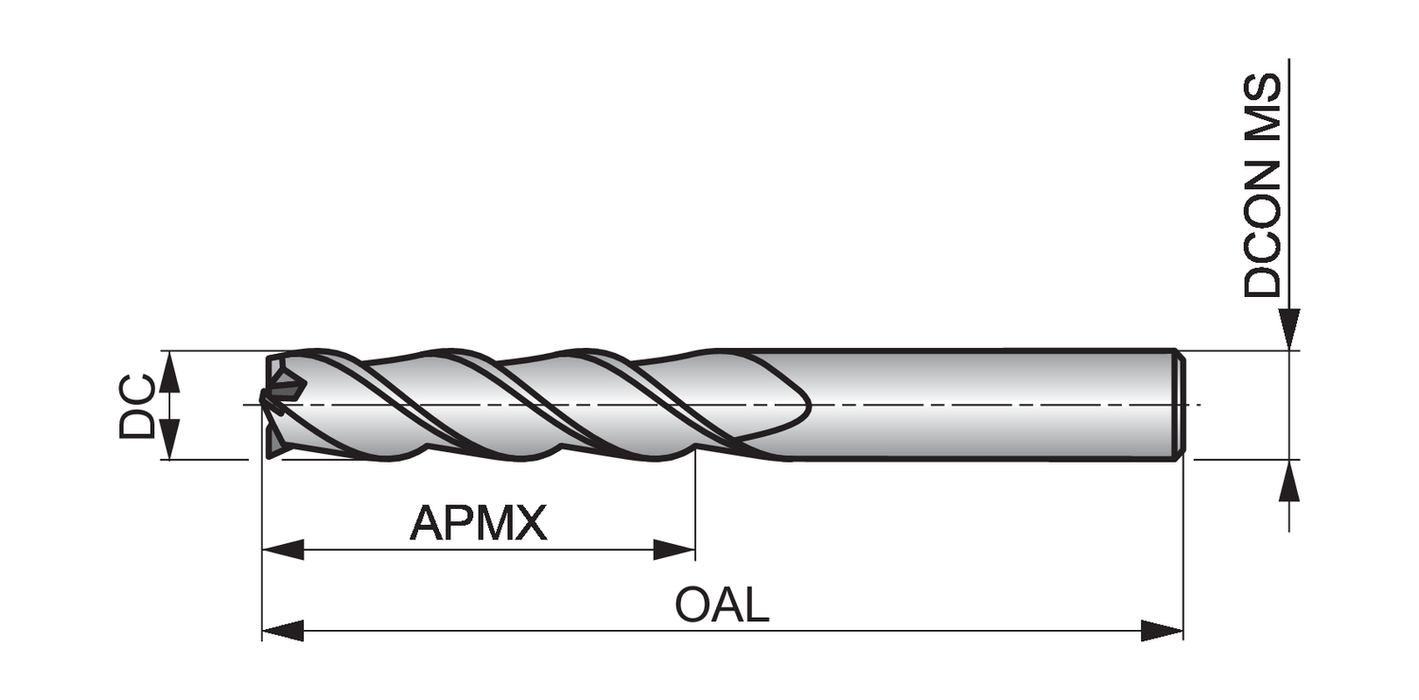

Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardWork Norm
Reference Numbers
EDP Number46706620
EAN7320760681695
File Type Download
S7148.0 — Line Drawing PDF Download
