S71516.0

S71516.0

SKU DOR6706635
by Dormer Pramet
Primary Use: Possible Use:

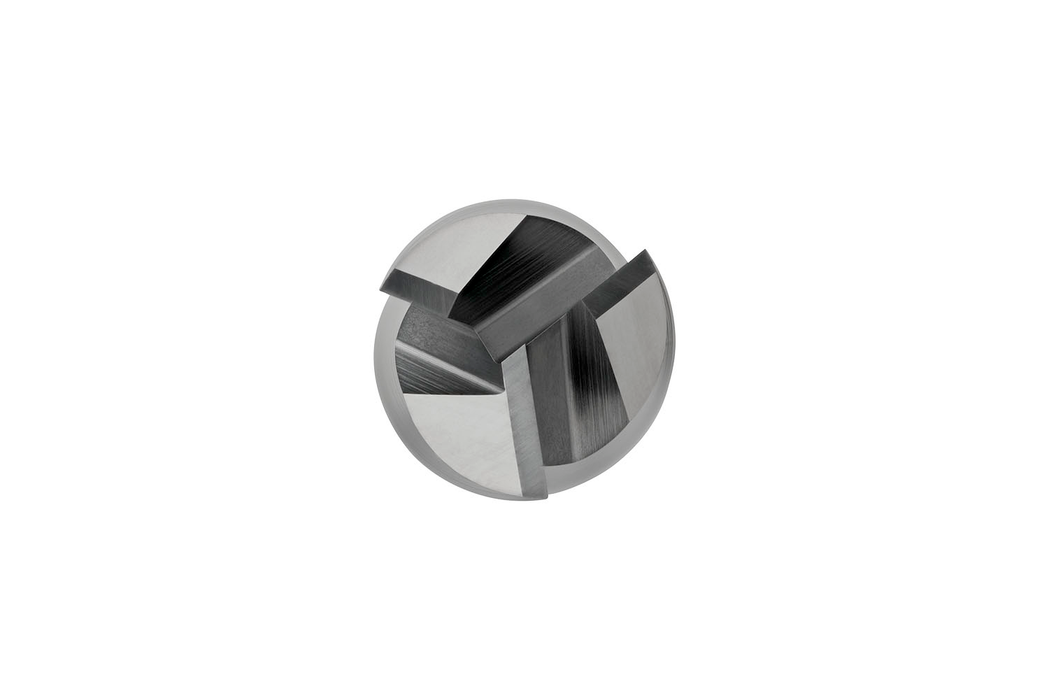

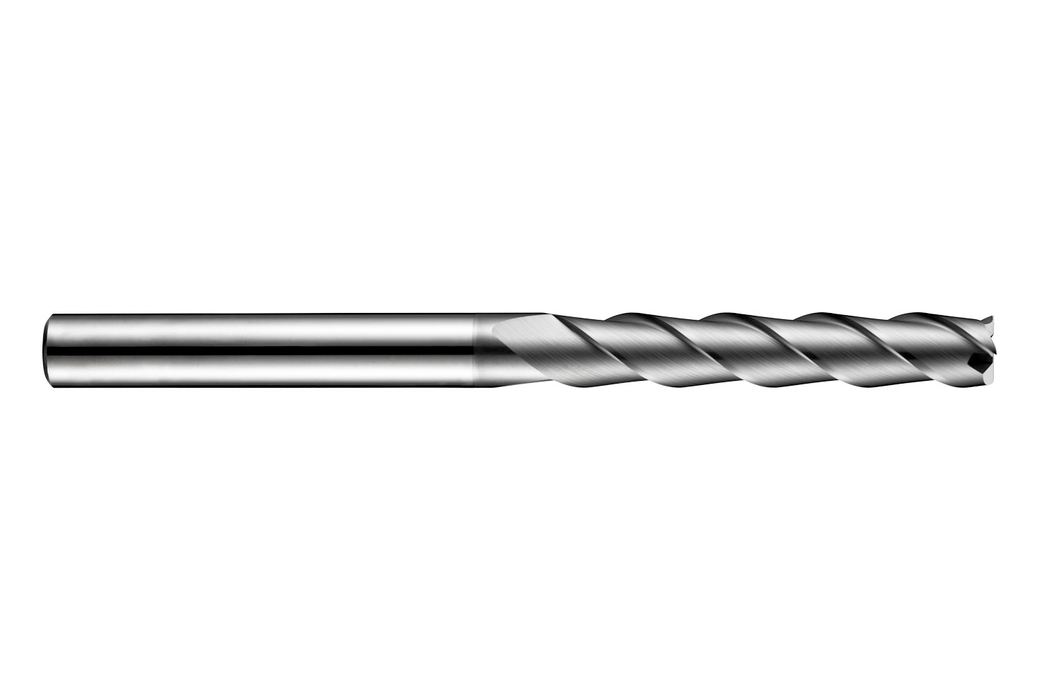

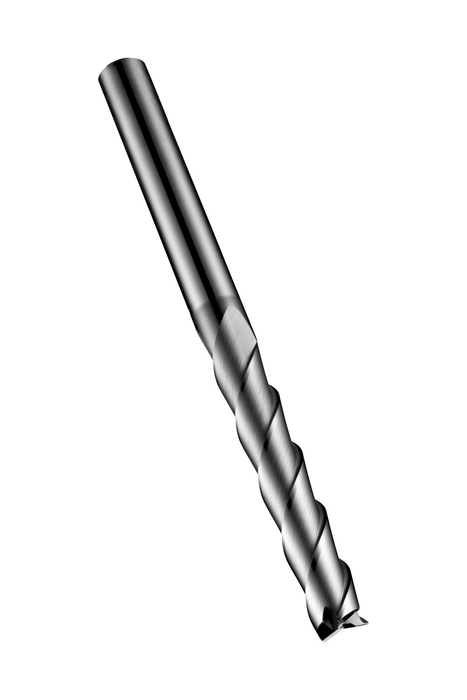

Extra long series end mill with 3 flutes, diameter 16mm with 75mm length of cut and 150mm overall length, according to DORMER standard with a 16mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$310.80 - $310.80
$310.80
$310.80 - $310.80
$310.80
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

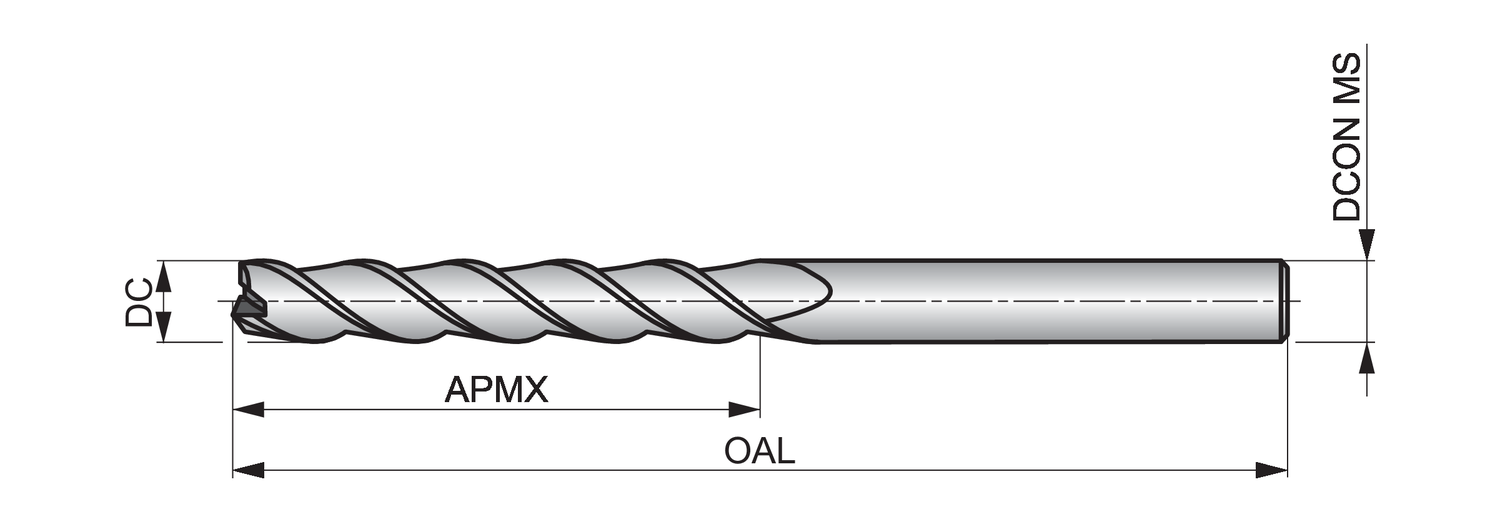

Material: HM

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Overall Length (OAL): 5.9055

Connetion Diameter: 0.6299

Max. Depth of Cut: 2.9528

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 3

EDP: 46706635

EAN: 7320760681848

MFG Part Number: 6706635
