S2193.0

S2193.0

SKU DOR6706638
by Dormer Pramet
Primary Use:

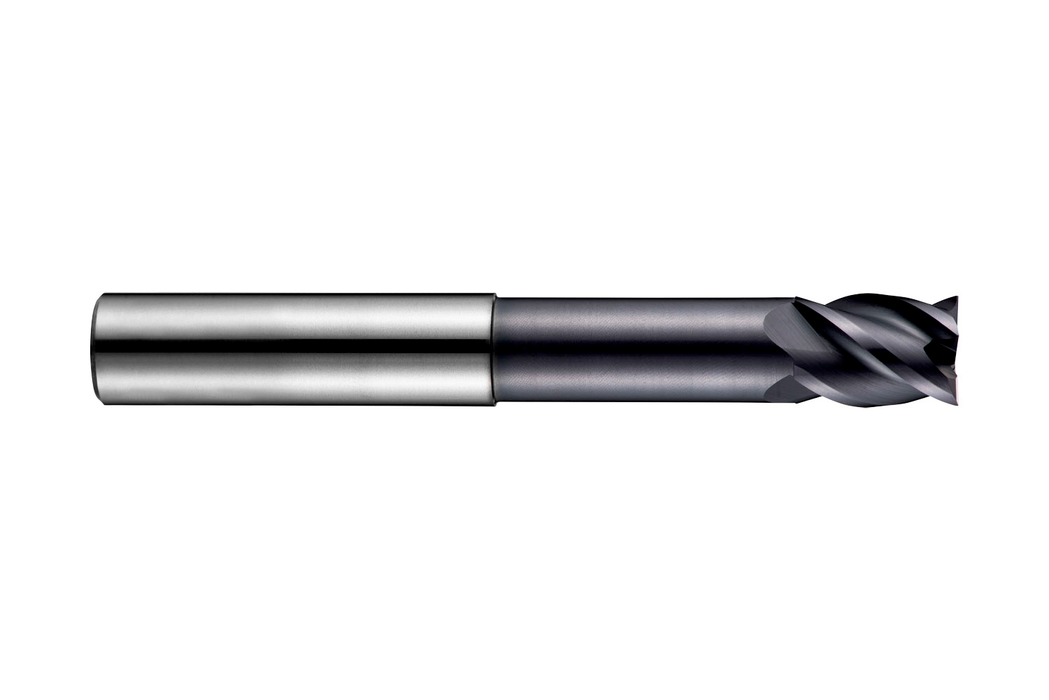

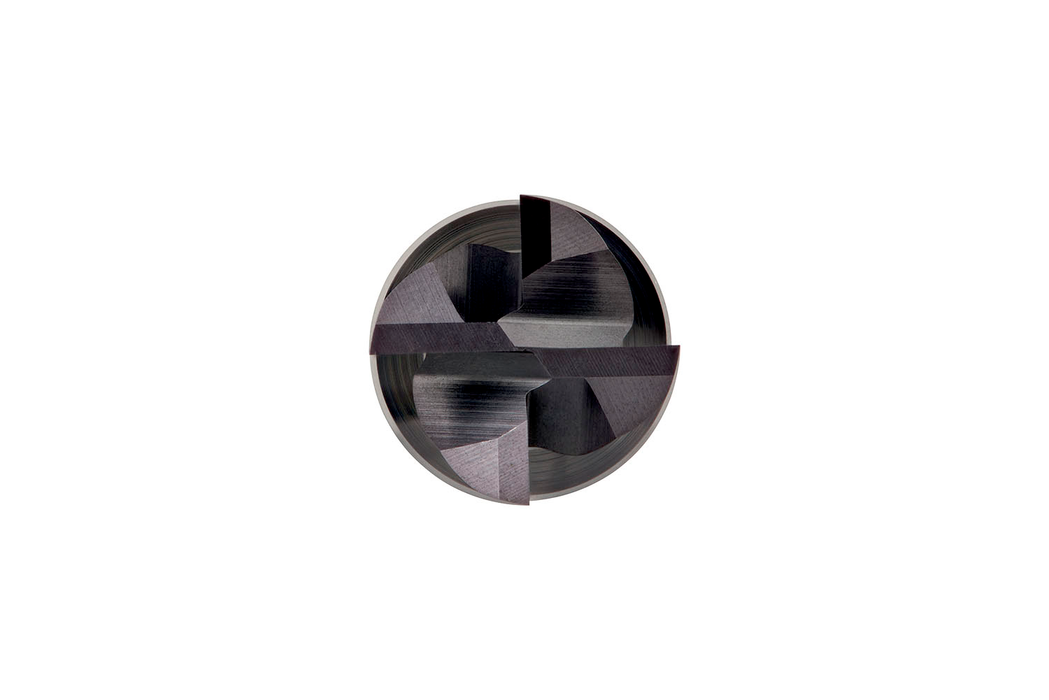

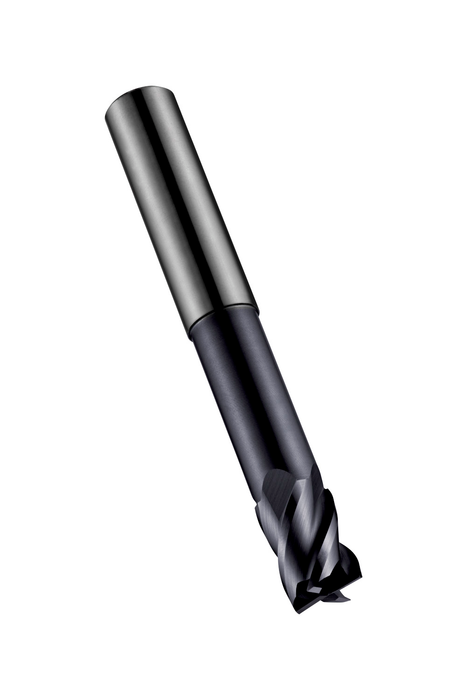

Extra short series end mill with 4 flutes, diameter 3mm with 5mm length of cut, 60mm overall length and 30mm reach with neck relief, according to DORMER standard with a 3mm plain shank, solid carbide with AlTiN coating, 40° helix and 3° rake angle for shoulder milling and plunging in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$68.71 - $68.71
$68.71
$68.71 - $68.71
$68.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

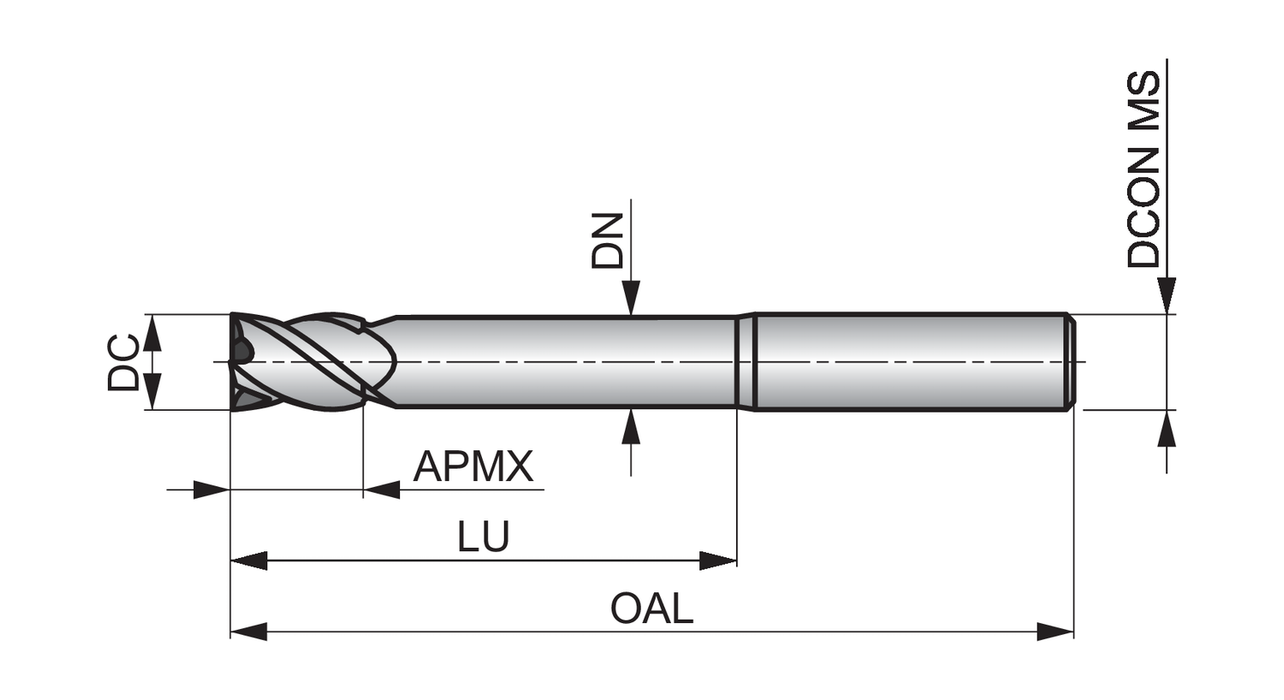

Material: HM

Cutting Diameter - in (DC): 0.1181

Cutting Diameter - mm (DC): 3.0

Overall Length (OAL): 2.3622

Connetion Diameter: 0.1181

Max. Depth of Cut: 0.1969

Shank: Cylindrical shank DIN 6535 HA

Grade: AlTiN

Cutting Edge Count: 4

EDP: 46706638

EAN: 7320760681879

MFG Part Number: 6706638
