S2196.0

S2196.0

SKU DOR6706641
by Dormer Pramet
Primary Use:

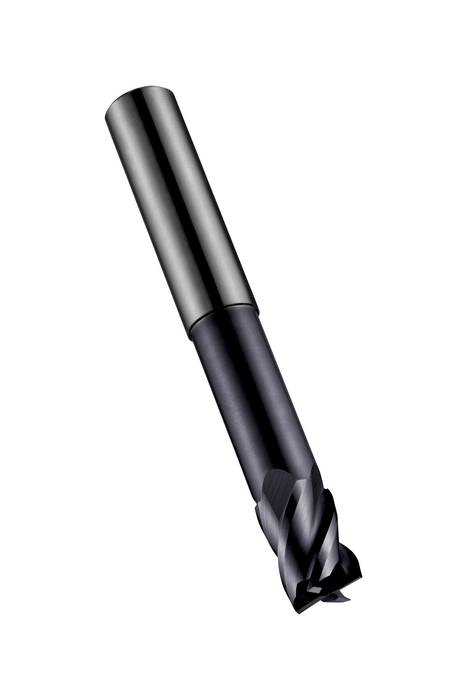

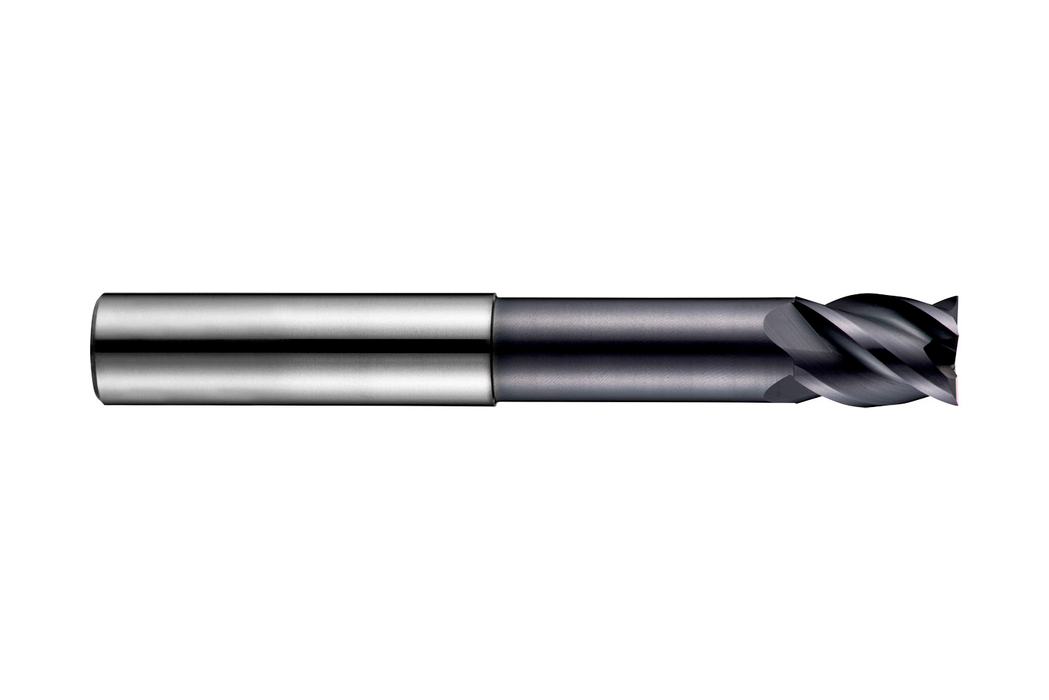

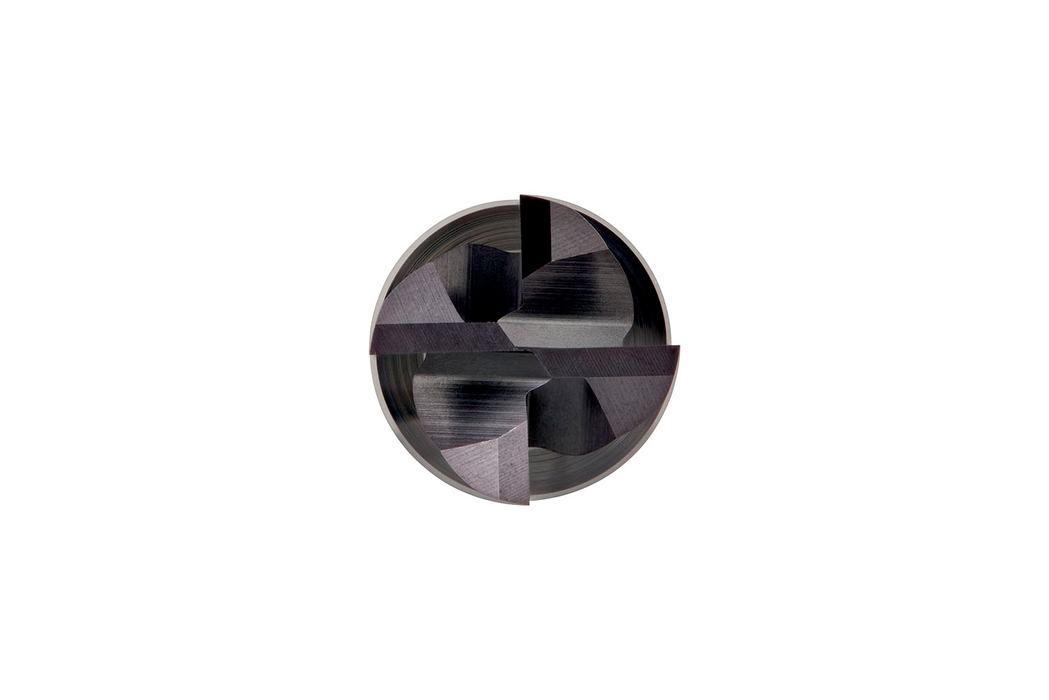

Extra short series end mill with 4 flutes, diameter 6mm with 10mm length of cut, 75mm overall length and 40mm reach with neck relief, according to DORMER standard with a 6mm plain shank, solid carbide with AlTiN coating, 40° helix and 3° rake angle for shoulder milling and plunging in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$76.11 - $76.11
$76.11
$76.11 - $76.11
$76.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

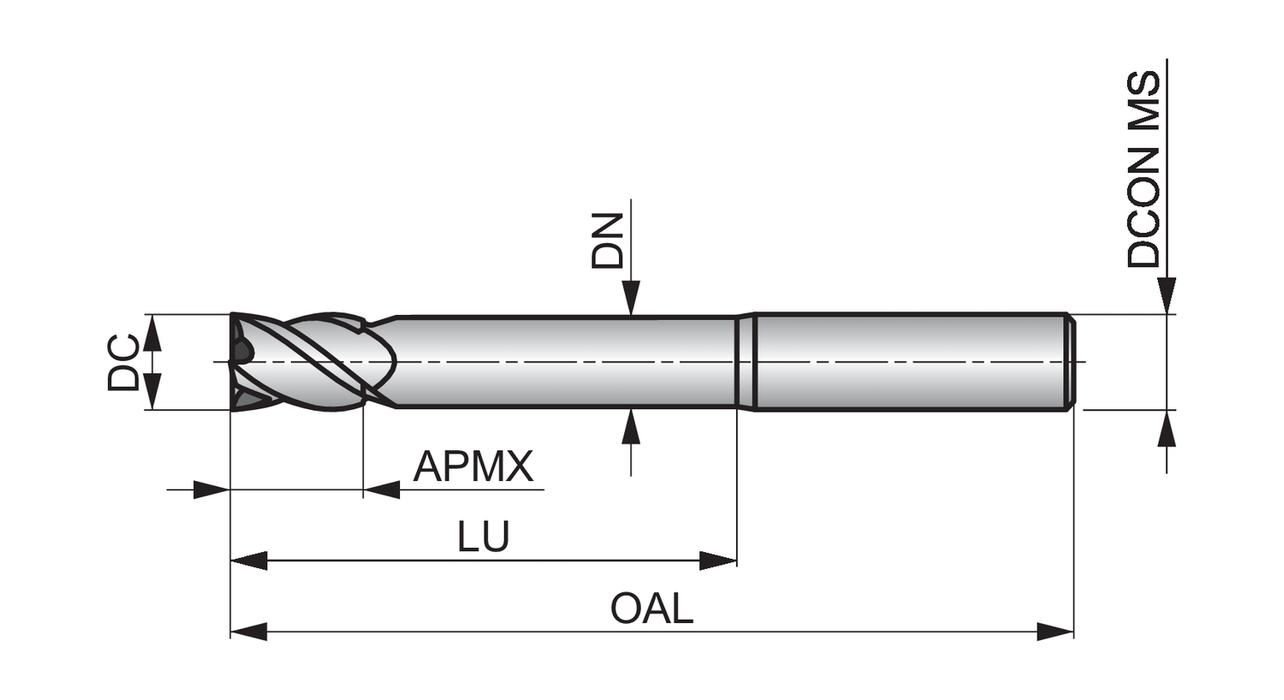

Material: HM

Cutting Diameter - in (DC): 0.2362

Cutting Diameter - mm (DC): 6.0

Overall Length (OAL): 2.9528

Connetion Diameter: 0.2362

Max. Depth of Cut: 0.3937

Shank: Cylindrical shank DIN 6535 HA

Grade: AlTiN

Cutting Edge Count: 4

EDP: 46706641

EAN: 7320760681909

MFG Part Number: 6706641
