S22610.0

S22610.0

SKU DOR6706784
by Dormer Pramet
Primary Use:

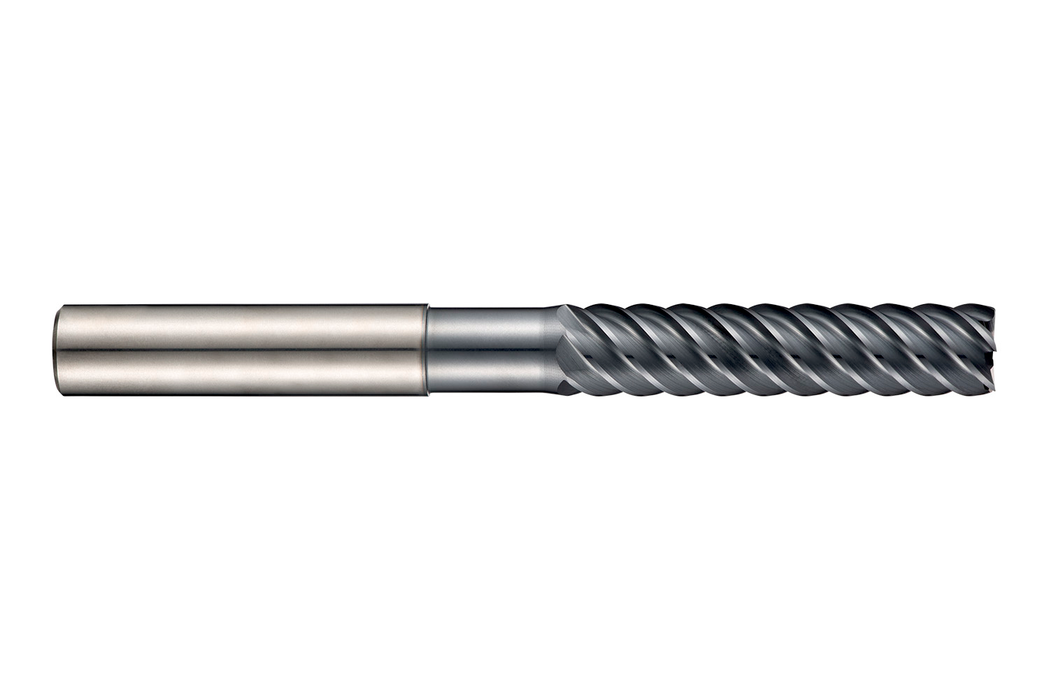

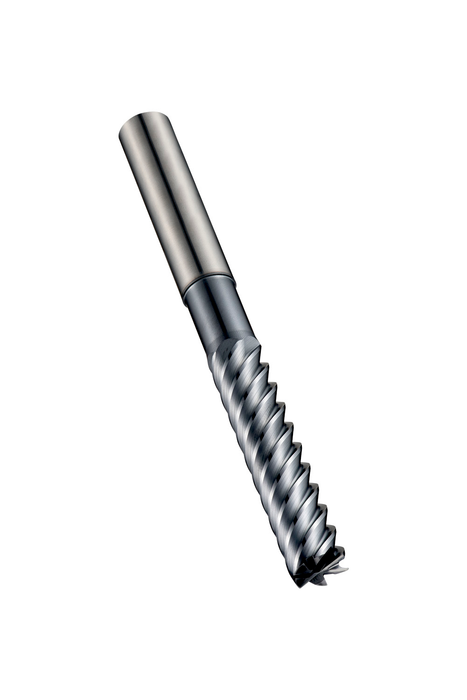

Long series finishing end mill with 6 flutes, diameter 10mm with 45mm length of cut, 100mm overall length and 60mm reach with neck relief, according to DORMER standard with a 10mm plain shank, solid carbide with AlTiN coating, 50° helix and 3° rake angle for shoulder milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$154.87 - $154.87
$154.87
$154.87 - $154.87
$154.87
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

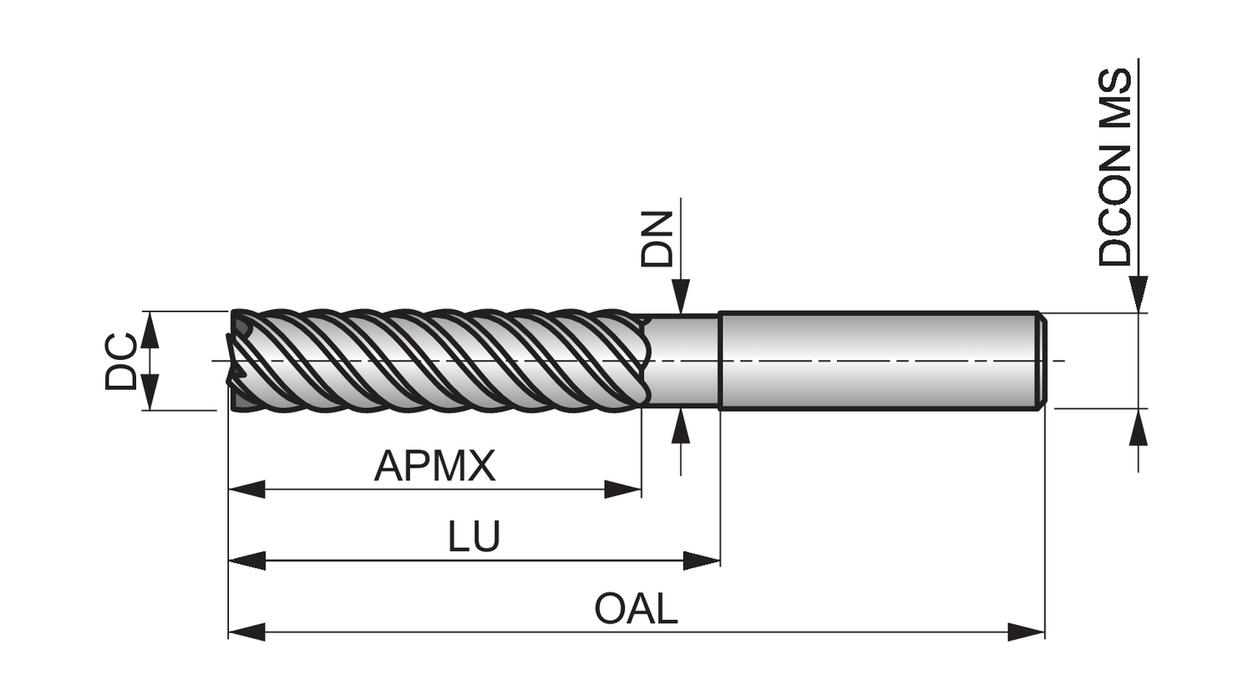

Material: HM

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Overall Length (OAL): 3.937

Connetion Diameter: 0.3937

Max. Depth of Cut: 1.7717

Shank: Cylindrical shank DIN 6535 HA

Grade: AlTiN

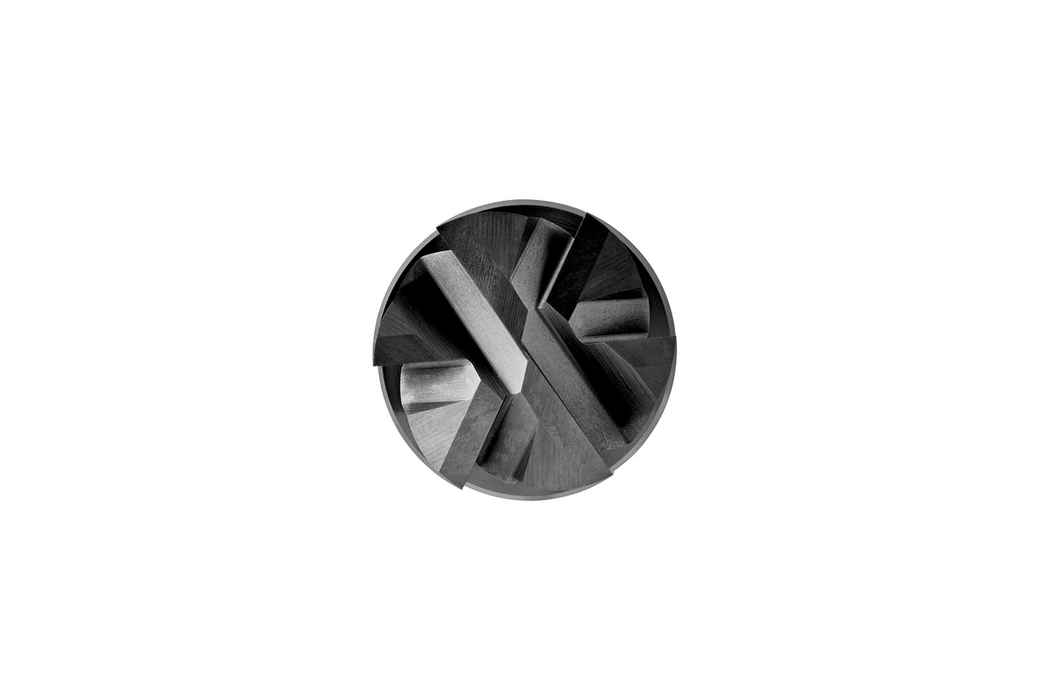

Cutting Edge Count: 6

EDP: 46706784

EAN: 7320760683330

MFG Part Number: 6706784
