S52618.0

S52618.0

SKU DOR6706797
by Dormer Pramet
Primary Use:

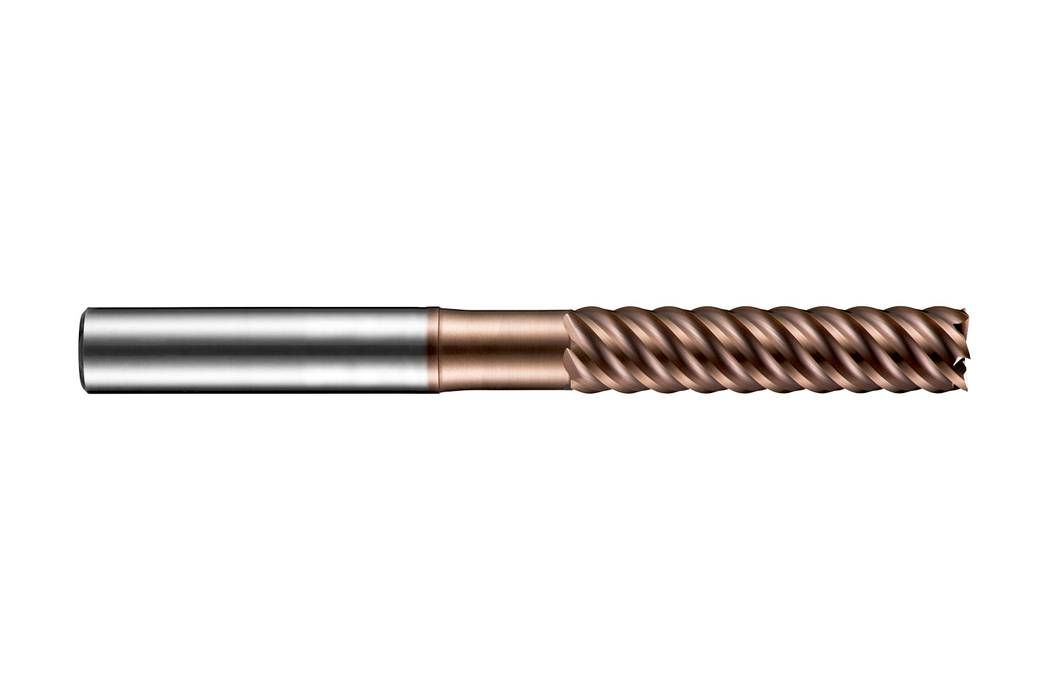

Long series finishing end mill with 8 flutes, diameter 18mm with 57mm length of cut, 125mm overall length and 85mm reach with neck relief, according to DORMER standard with a 18mm plain shank, solid carbide with TiSiN coating, 50° helix and -26° rake angle for shoulder milling in hardened materials

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$574.56 - $574.56
$574.56
$574.56 - $574.56
$574.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

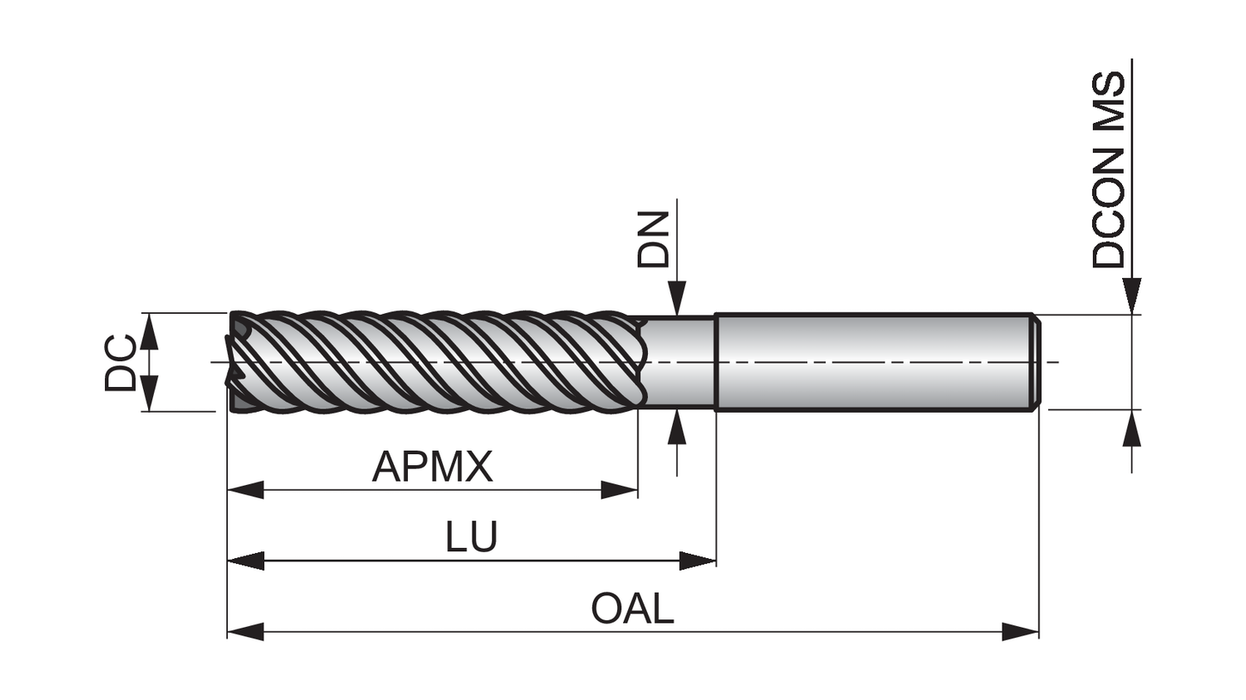

Material: HM

Cutting Diameter - in (DC): 0.7087

Cutting Diameter - mm (DC): 18.0

Overall Length (OAL): 4.9213

Connetion Diameter: 0.7087

Max. Depth of Cut: 2.2441

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

Cutting Edge Count: 8

EDP: 46706797

EAN: 7320760683460

MFG Part Number: 6706797
