S22710.0

S22710.0

SKU DOR6706822
by Dormer Pramet
Primary Use:

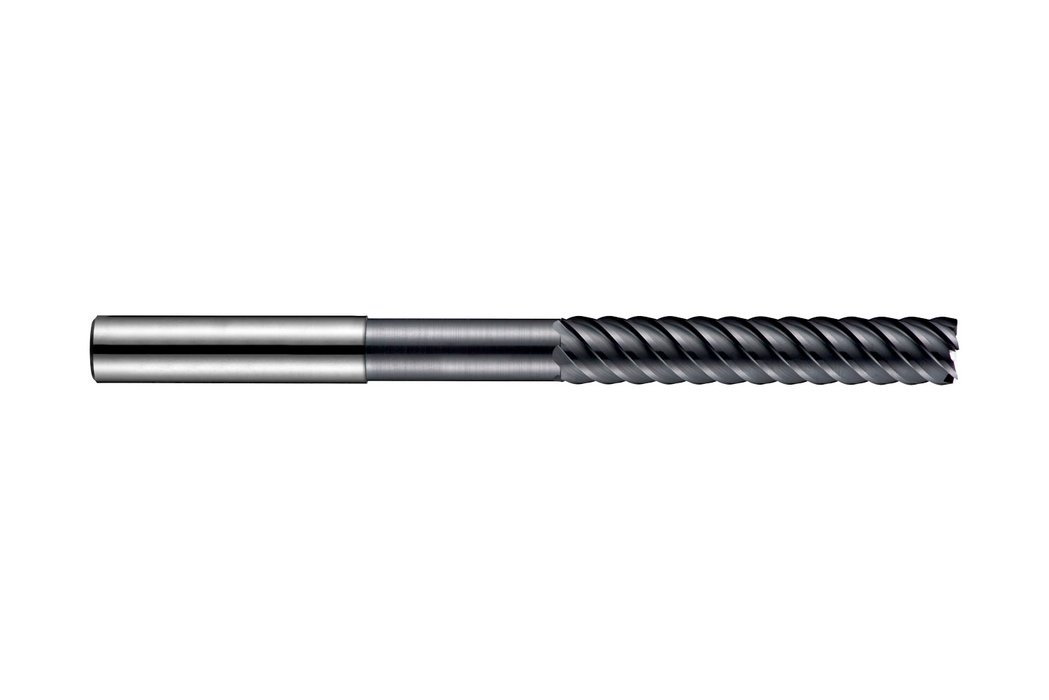

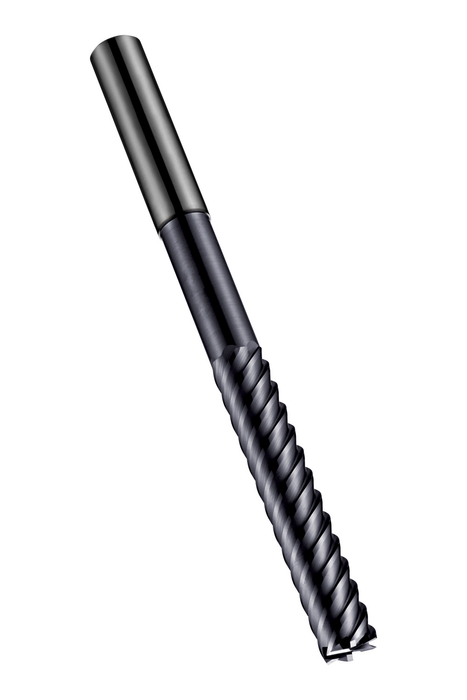

Extra long series finishing end mill with 6 flutes, diameter 10mm with 57mm length of cut, 125mm overall length and 85mm reach with neck relief, according to DORMER standard with a 10mm plain shank, solid carbide with AlTiN coating, 50° helix and 3° rake angle for shoulder milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$190.81 - $190.81
$190.81
$190.81 - $190.81
$190.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

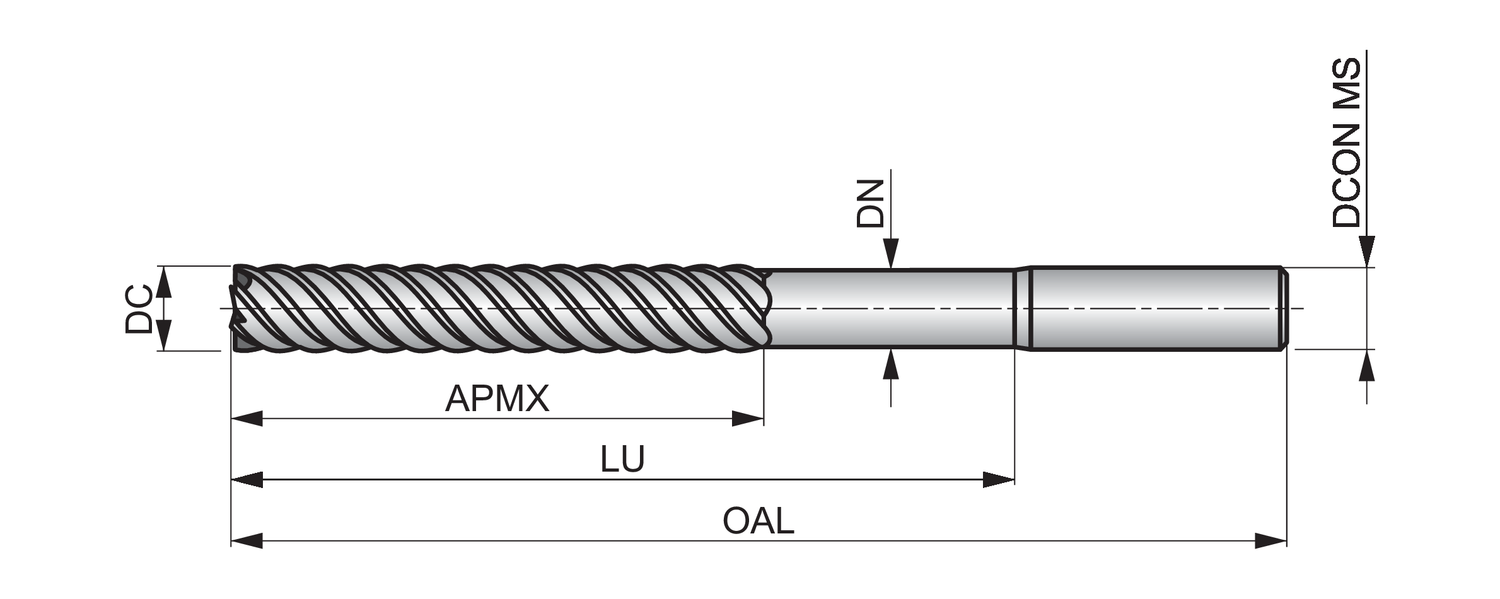

Material: HM

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Overall Length (OAL): 4.9213

Connetion Diameter: 0.3937

Max. Depth of Cut: 2.2441

Shank: Cylindrical shank DIN 6535 HA

Grade: AlTiN

Cutting Edge Count: 6

EDP: 46706822

EAN: 7320760683712

MFG Part Number: 6706822
