S76512.0

S76512.0

SKU DOR6706867
by Dormer Pramet
Primary Use:

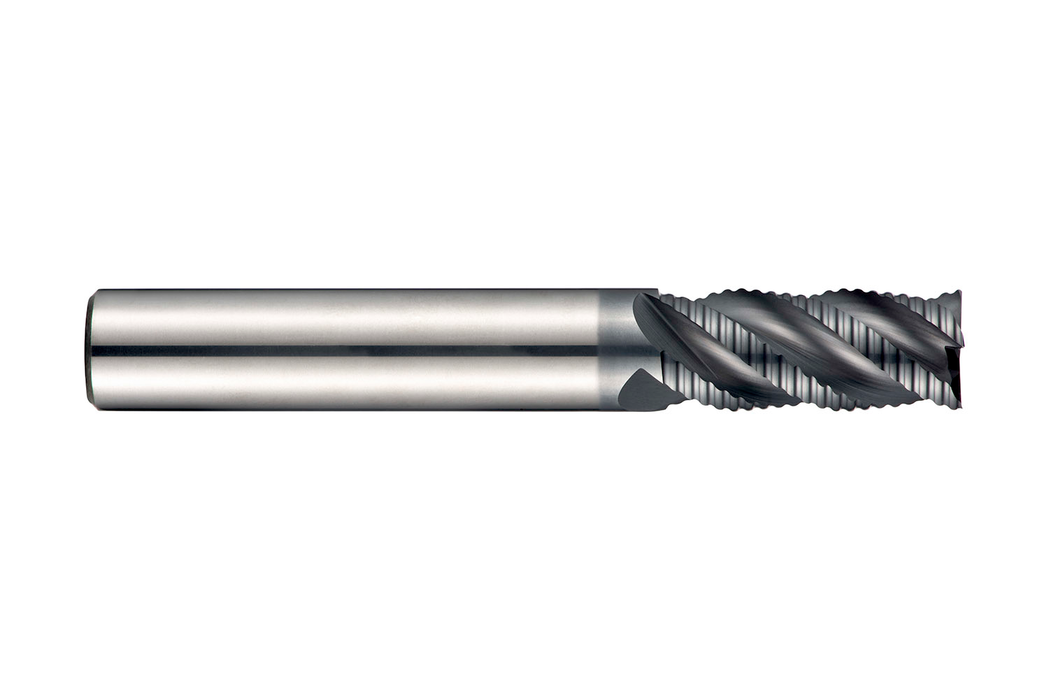

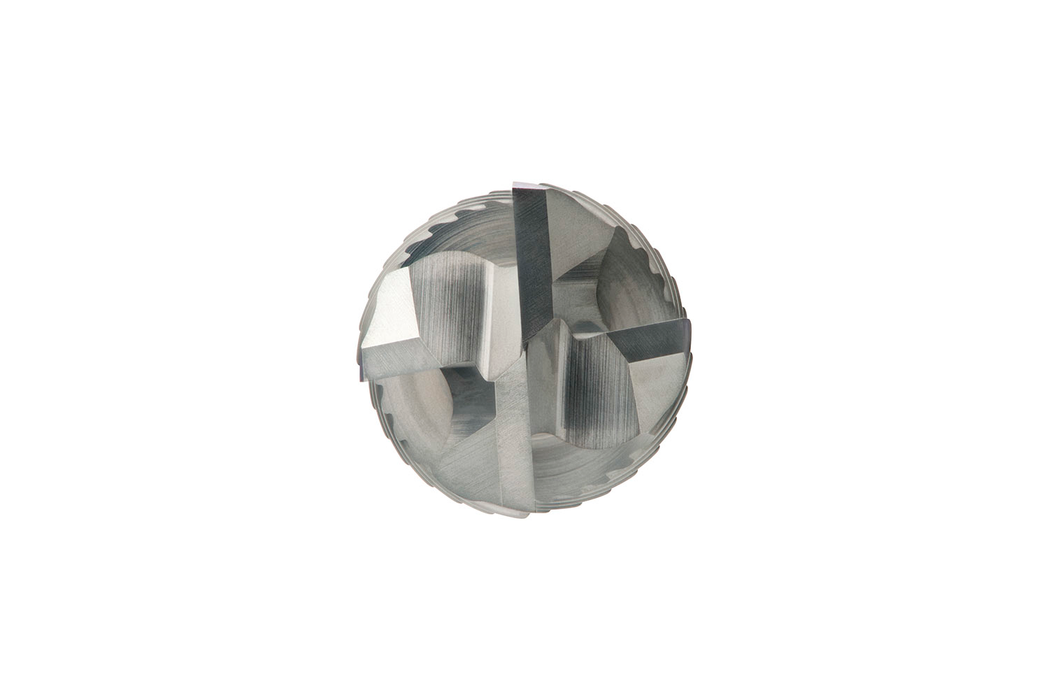

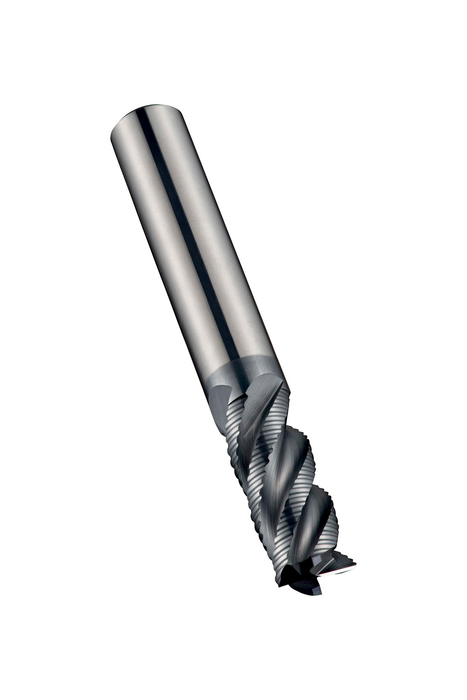

Short series roughing end mill with NR regular coarse pitch profile and 4 flutes, diameter 12mm with 26mm length of cut, 75mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 12mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$210.90 - $210.90
$210.90
$210.90 - $210.90
$210.90
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

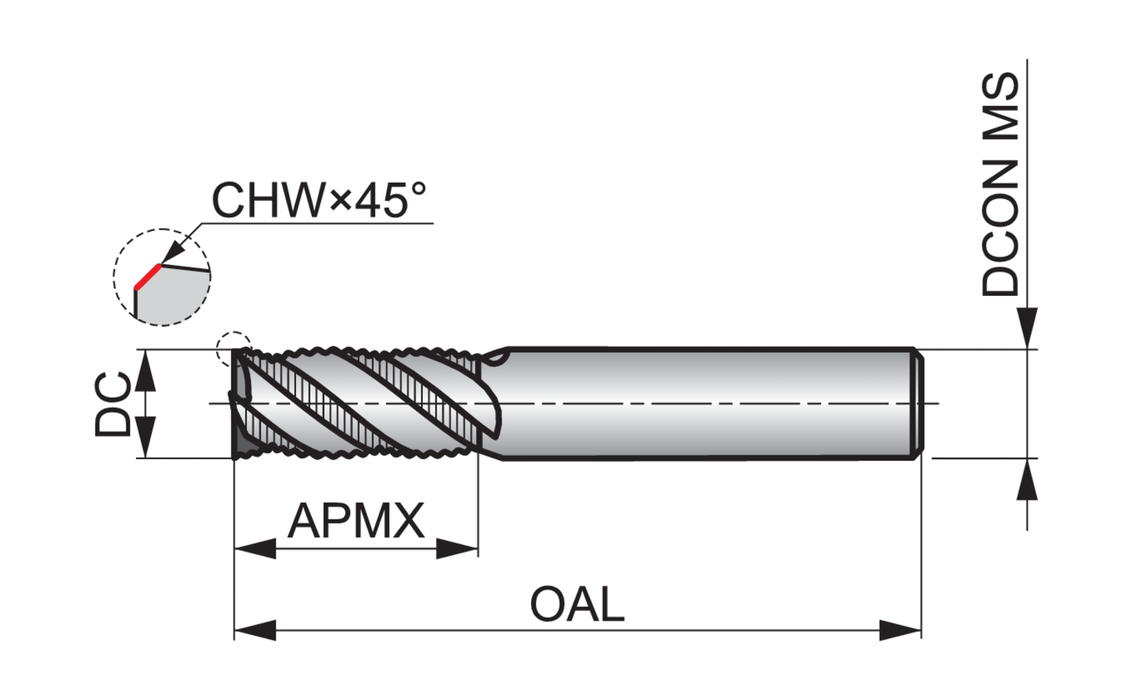

Cutting Diameter - in (DC): 0.4724

Cutting Diameter - mm (DC): 12.0

Overall Length (OAL): 2.9528

Connetion Diameter: 0.4724

Max. Depth of Cut: 1.0236

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 4

EDP: 46706867

EAN: 7320760684160

MFG Part Number: 6706867
