S7394.0

S7394.0

SKU DOR6706887
by Dormer Pramet
Primary Use:

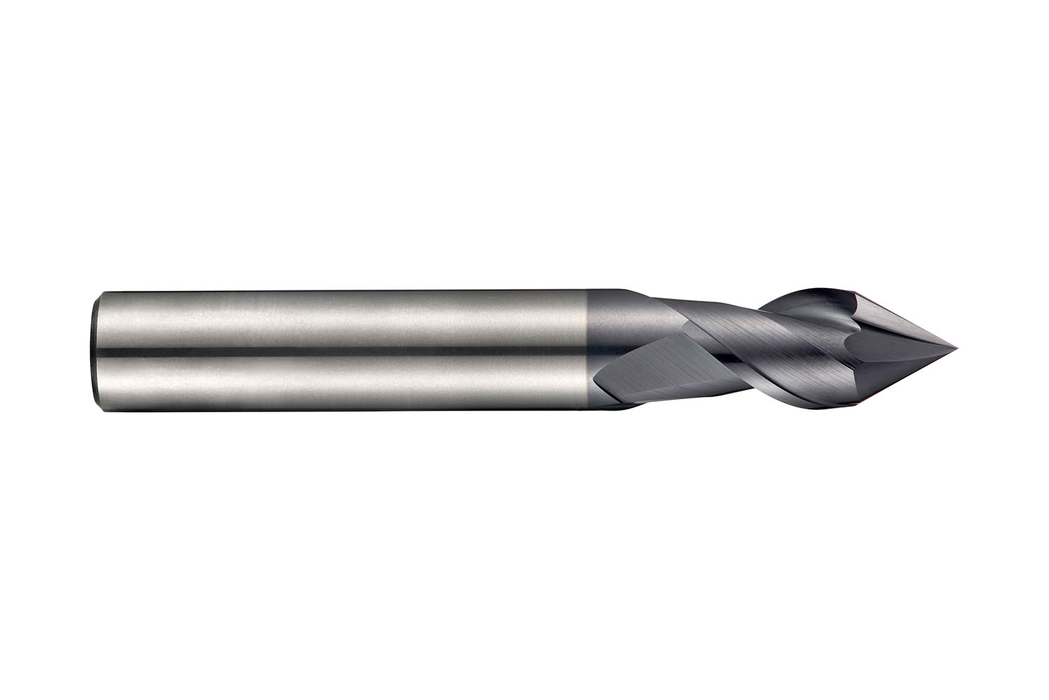

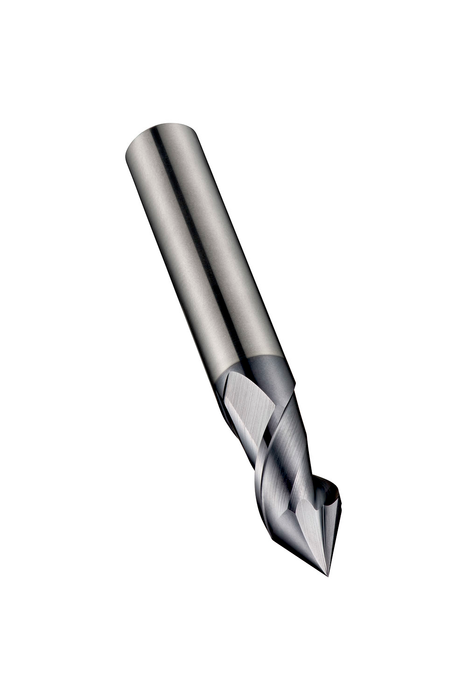

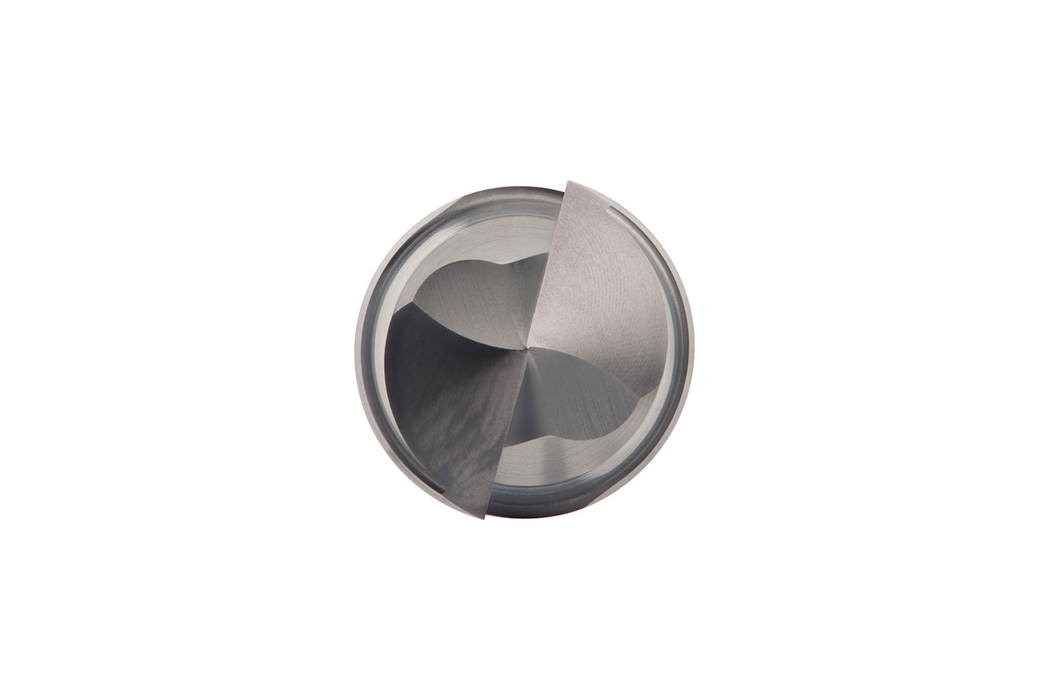

Short series 60° chamfering mill with 2 flutes, diameter 4mm with 12mm length of cut and 50mm overall length, according to DORMER standard with a 4mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$58.14 - $58.14
$58.14
$58.14 - $58.14
$58.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

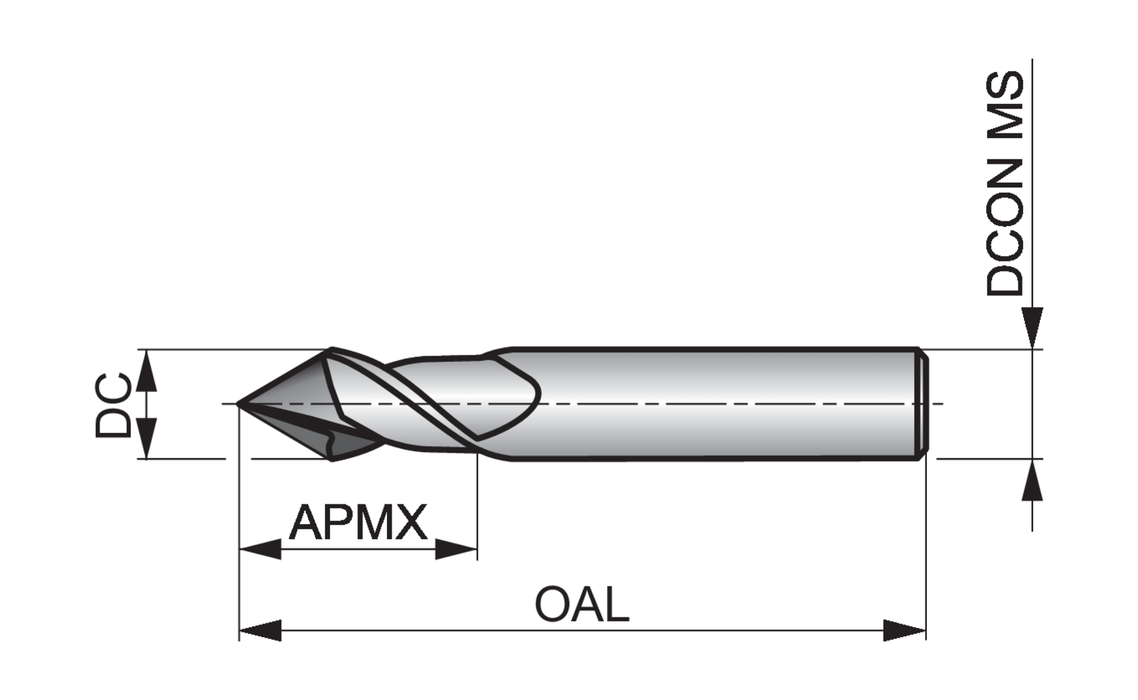

Material: HM

Cutting Diameter - in (DC): 0.1575

Cutting Diameter - mm (DC): 4.0

Overall Length (OAL): 1.9685

Connetion Diameter: 0.1575

Max. Depth of Cut: 0.4724

Cutting Edge Angle: 60.0

Shank: Cylindrical shank DIN 6535 HA

Grade: AlTiN

Cutting Edge Count: 2

EDP: 46706887

EAN: 7320760684368

MFG Part Number: 6706887
