S26014.0

S26014.0

SKU DOR6706920
by Dormer Pramet
Primary Use:

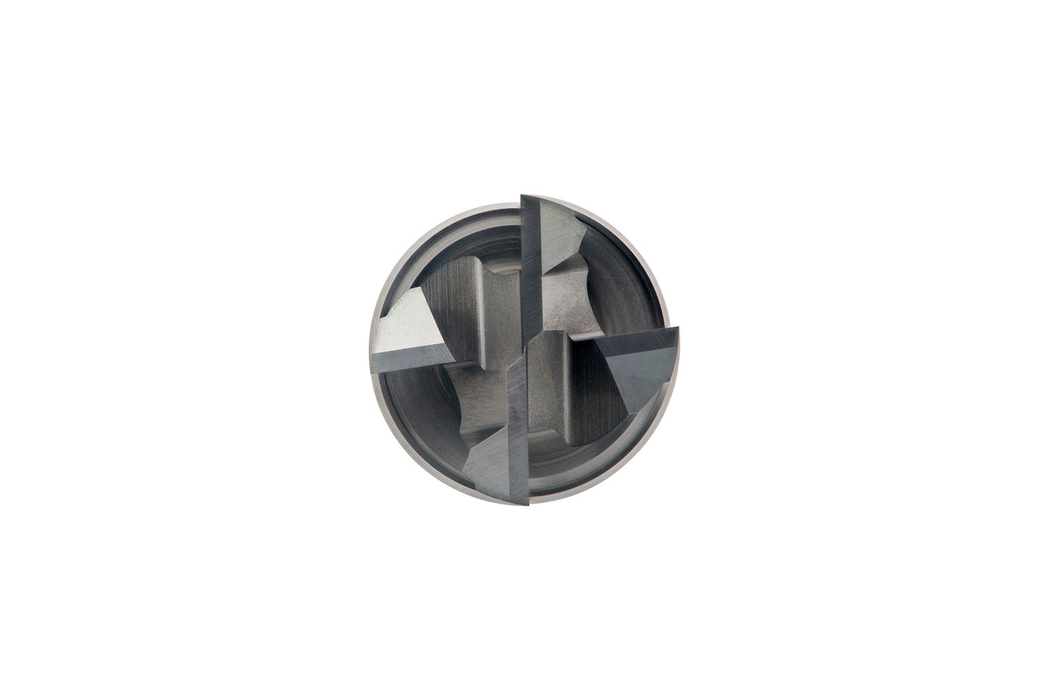

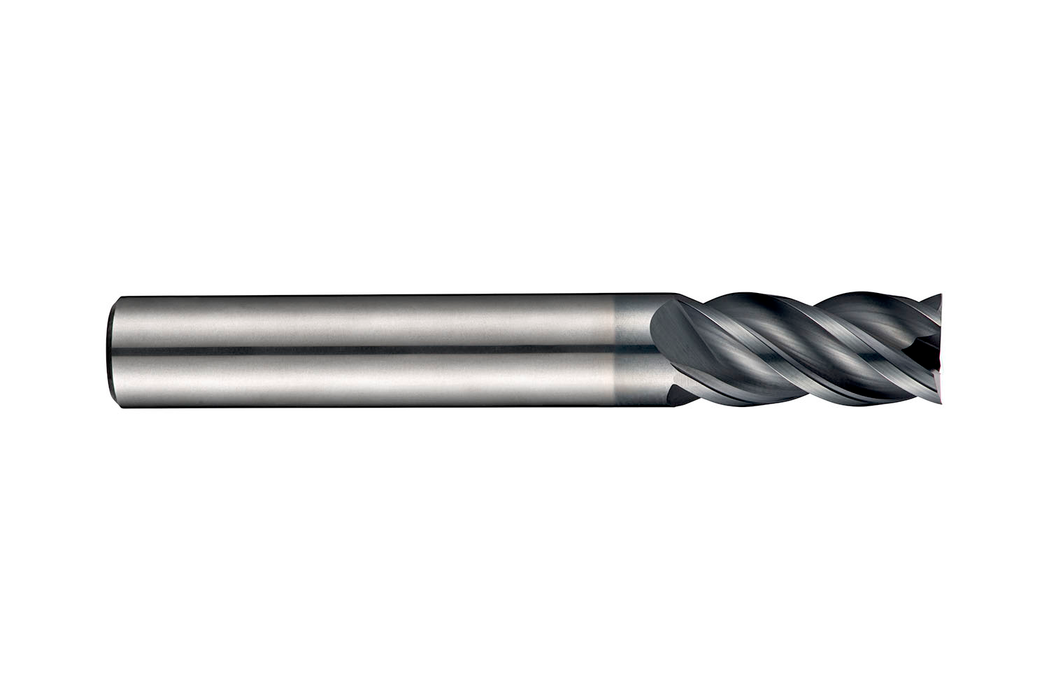

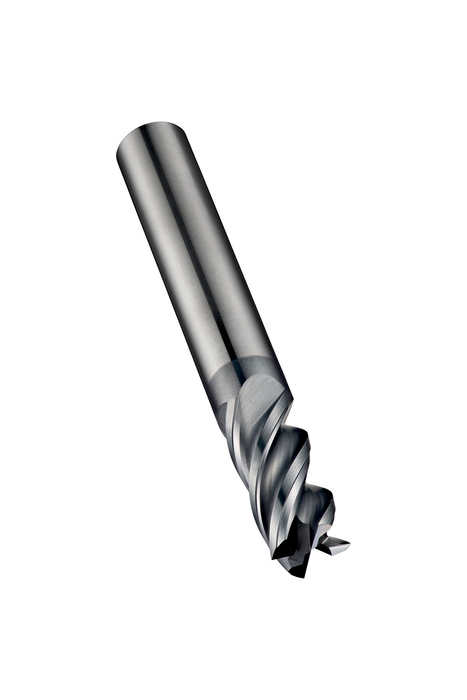

Short series end mill with 4 flutes, diameter 14mm with 32mm length of cut and 83mm overall length, according to DORMER standard with a 14mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 4° rake angle for shoulder milling and plunging in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$211.96 - $211.96
$211.96
$211.96 - $211.96
$211.96
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

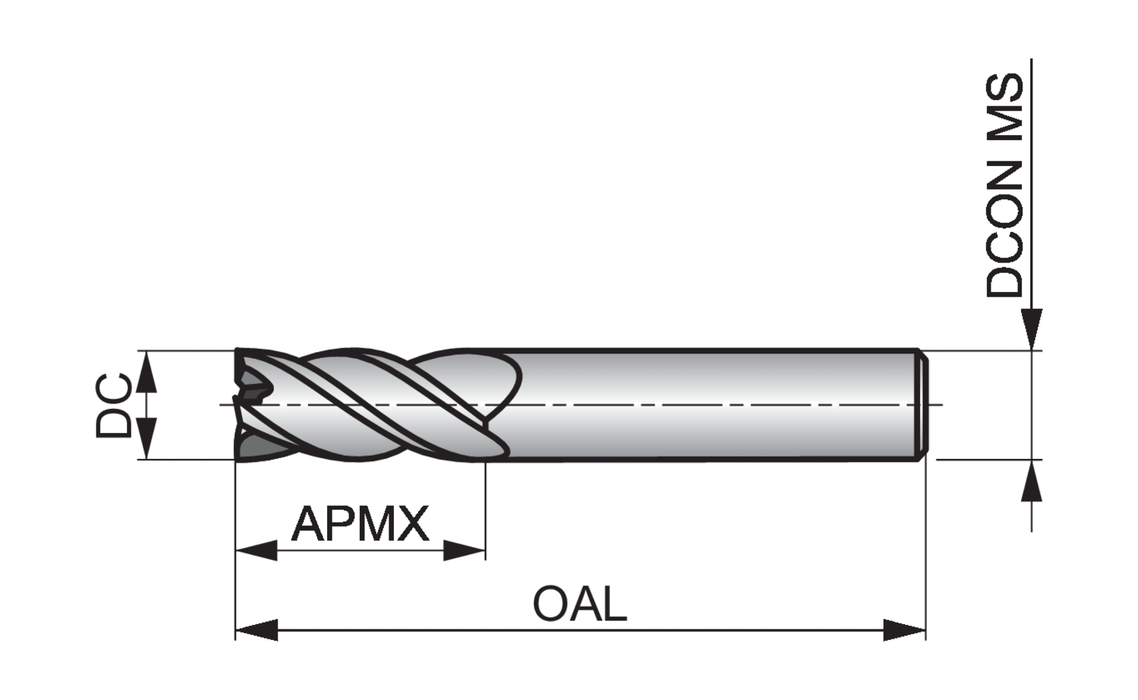

Material: HM

Cutting Diameter - in (DC): 0.5512

Cutting Diameter - mm (DC): 14.0

Overall Length (OAL): 3.2677

Connetion Diameter: 0.5512

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 4

EDP: 46706920

EAN: 7320760684696

MFG Part Number: 6706920
