S71016.0

S71016.0

SKU DOR6706994
by Dormer Pramet
Primary Use:

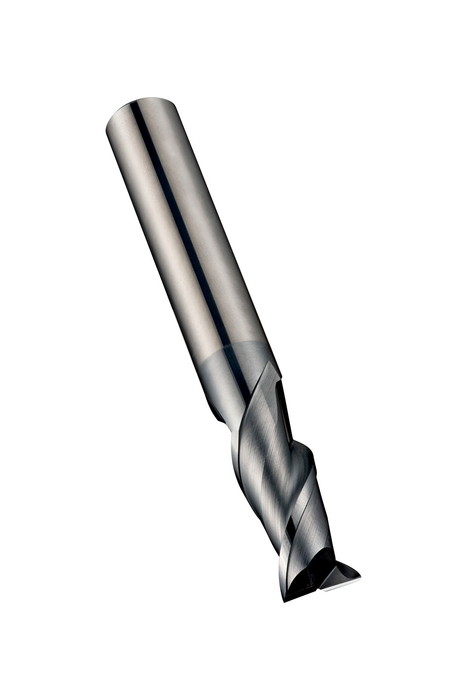

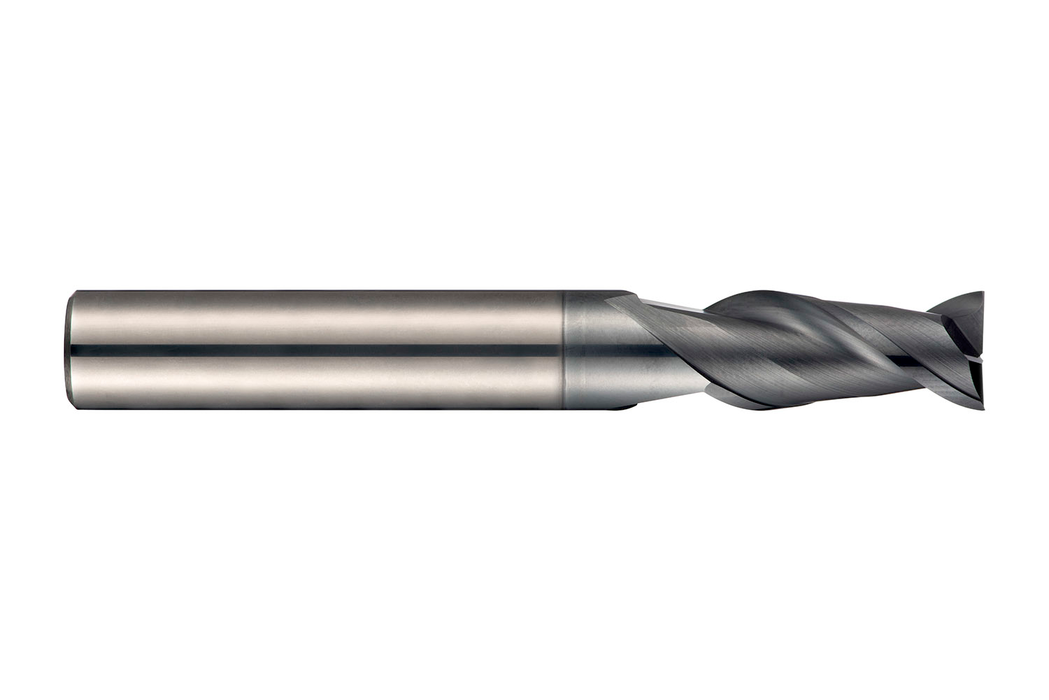

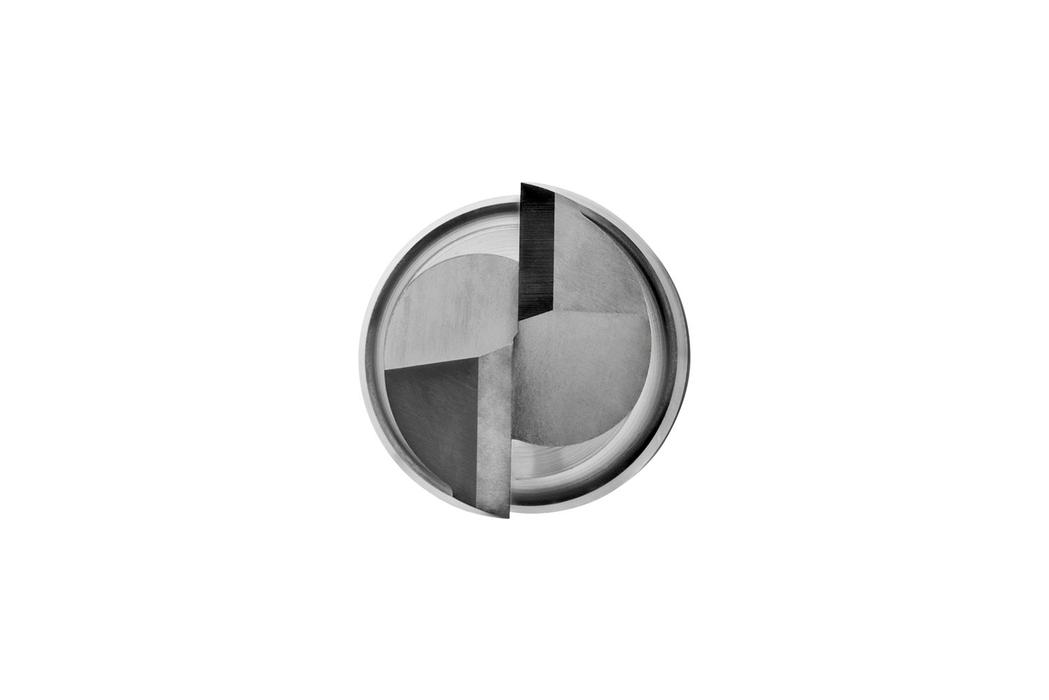

Short series end mill with 2 flutes, diameter 16mm with 32mm length of cut and 90mm overall length, according to DORMER standard with a 16mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for slot milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$224.64 - $224.64
$224.64
$224.64 - $224.64
$224.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

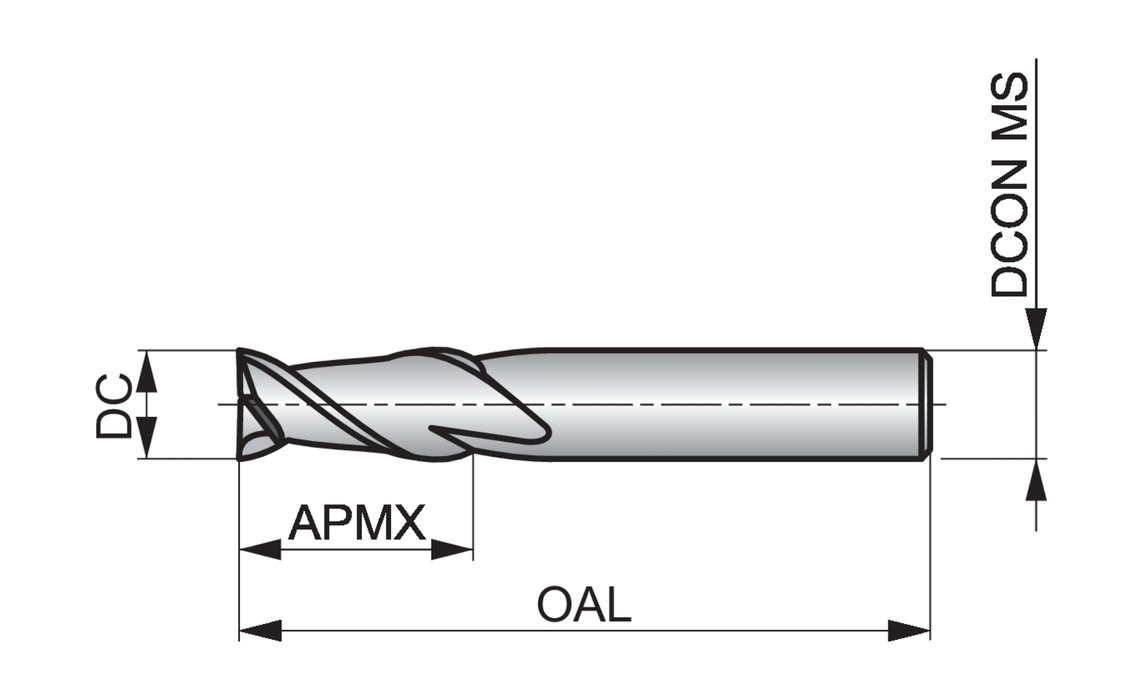

Material: HM

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Overall Length (OAL): 3.5433

Connetion Diameter: 0.6299

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 2

EDP: 46706994

EAN: 7320760685433

MFG Part Number: 6706994
