S7616.0

S7616.0

SKU DOR6706999
by Dormer Pramet
Primary Use:

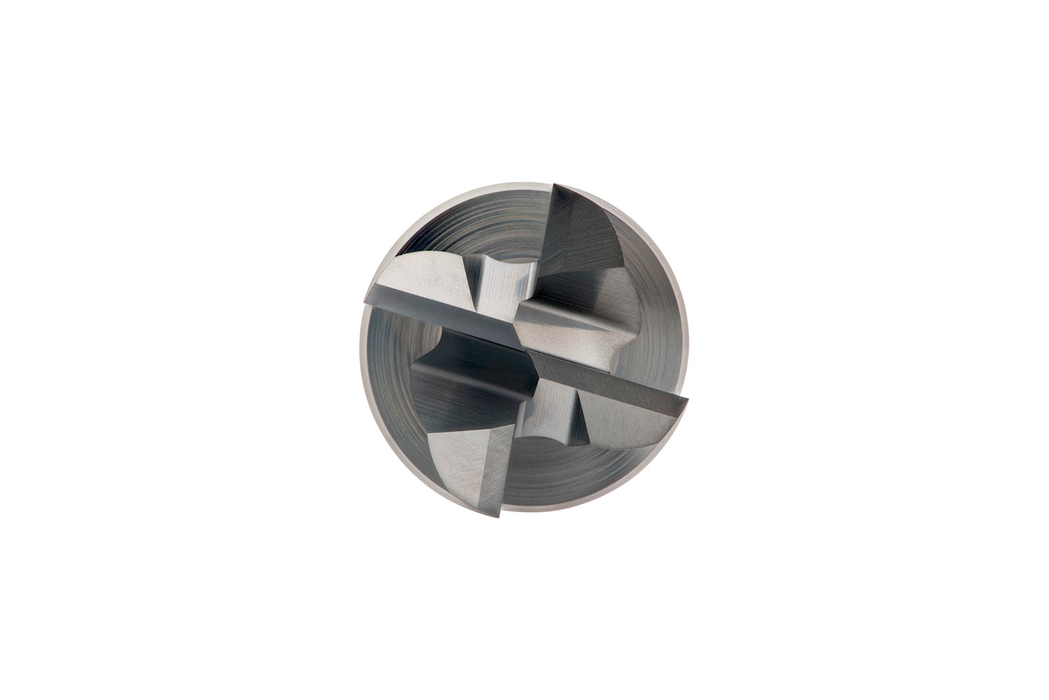

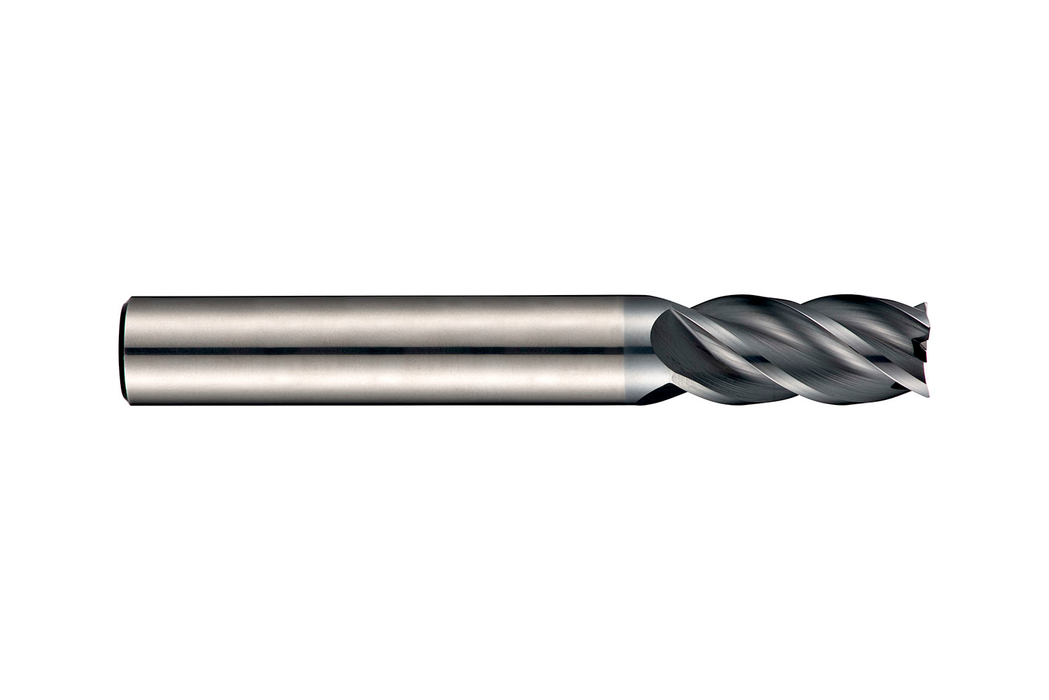

Short series end mill with 4 flutes, diameter 6mm with 13mm length of cut and 57mm overall length, according to DORMER standard with a 6mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 10° rake angle for shoulder milling and plunging in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$66.60 - $66.60
$66.60
$66.60 - $66.60
$66.60
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

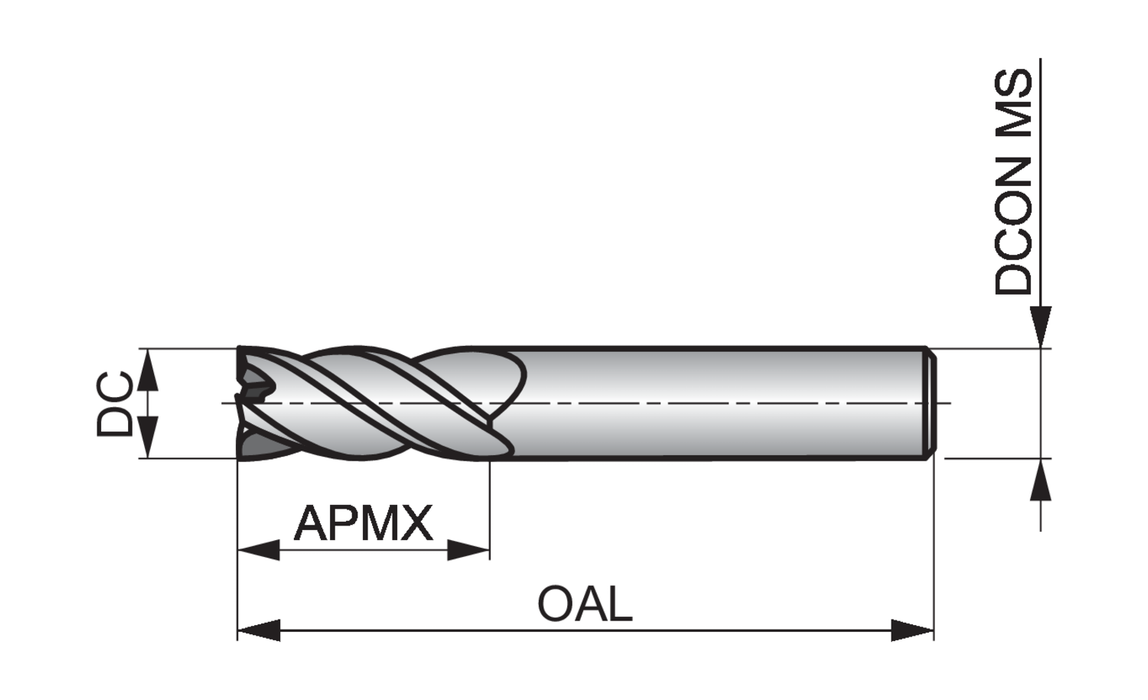

Cutting Diameter - in (DC): 0.2362

Cutting Diameter - mm (DC): 6.0

Overall Length (OAL): 2.2441

Connetion Diameter: 0.2362

Max. Depth of Cut: 0.5118

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 4

EDP: 46706999

EAN: 7320760685488

MFG Part Number: 6706999
