S76616.0

S76616.0

SKU DOR6707013
by Dormer Pramet
Primary Use:

Short series end mill with 4 flutes, diameter 16mm with 32mm length of cut, 92mm overall length and 0.3mm 45° chamfered corner edges, according to DORMER standard with a 16mm plain shank, solid carbide with TiSiN coating, unequal helix with differential pitch and 10° rake angle for shoulder milling, plunging, progressive plunge milling and trochoidal milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$320.31 - $320.31
$320.31
$320.31 - $320.31
$320.31
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

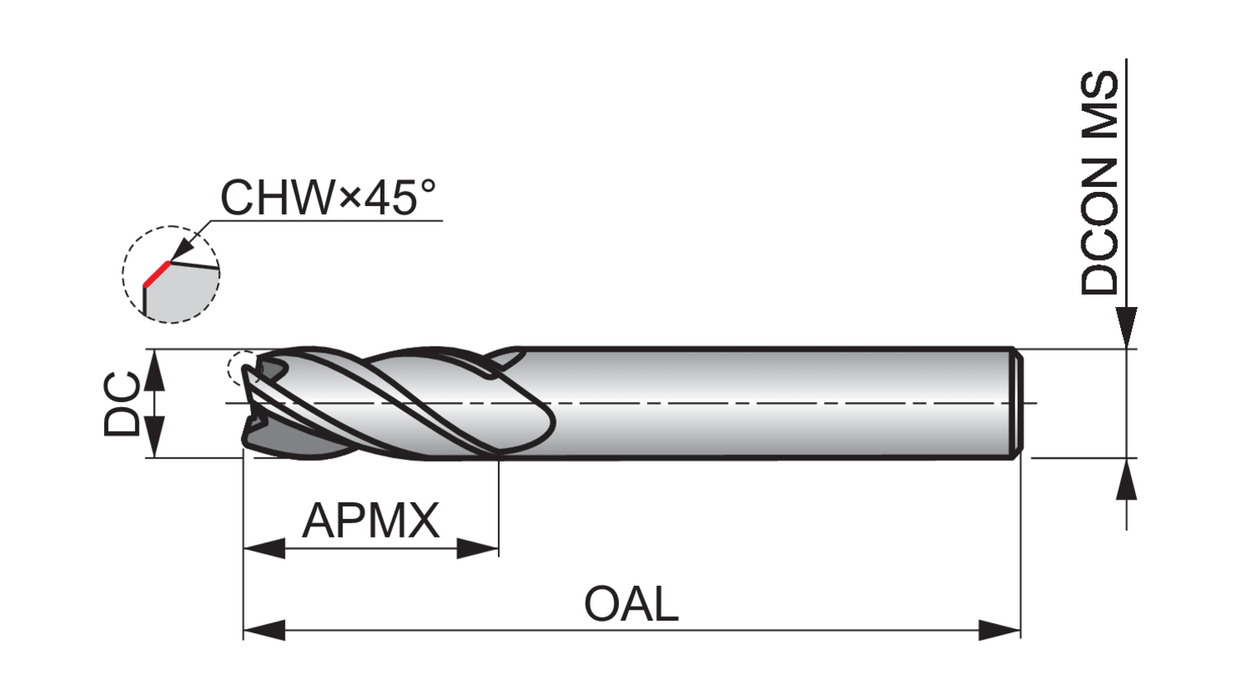

Material: HM

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Overall Length (OAL): 3.622

Connetion Diameter: 0.6299

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

Cutting Edge Count: 4

EDP: 46707013

EAN: 7320760685624

MFG Part Number: 6707013
