S76620.0

S76620.0

SKU DOR6707014
by Dormer Pramet
Primary Use:

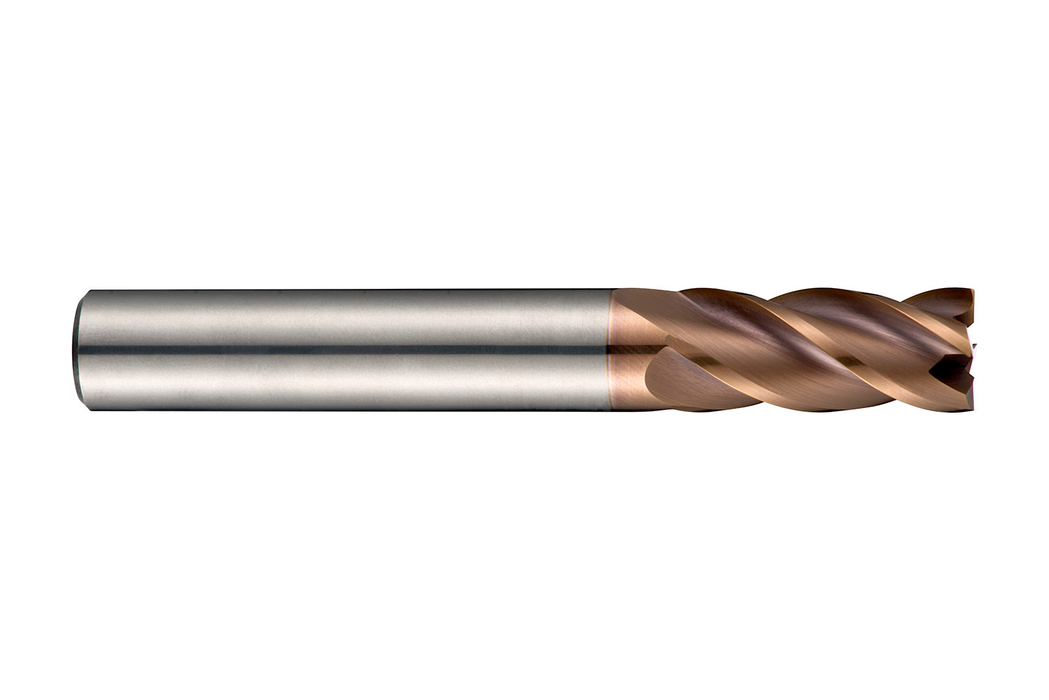

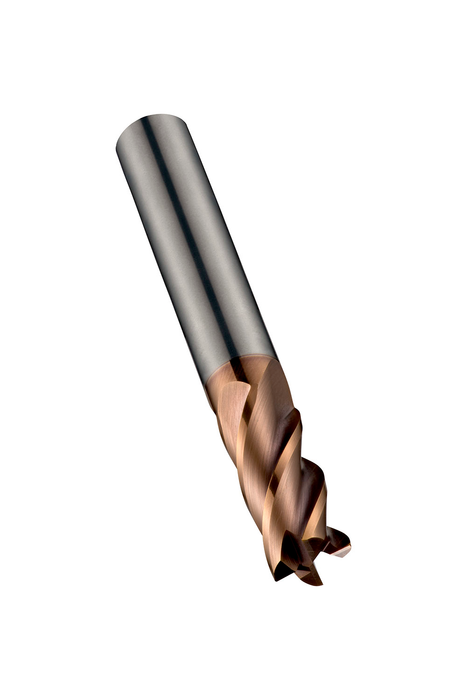

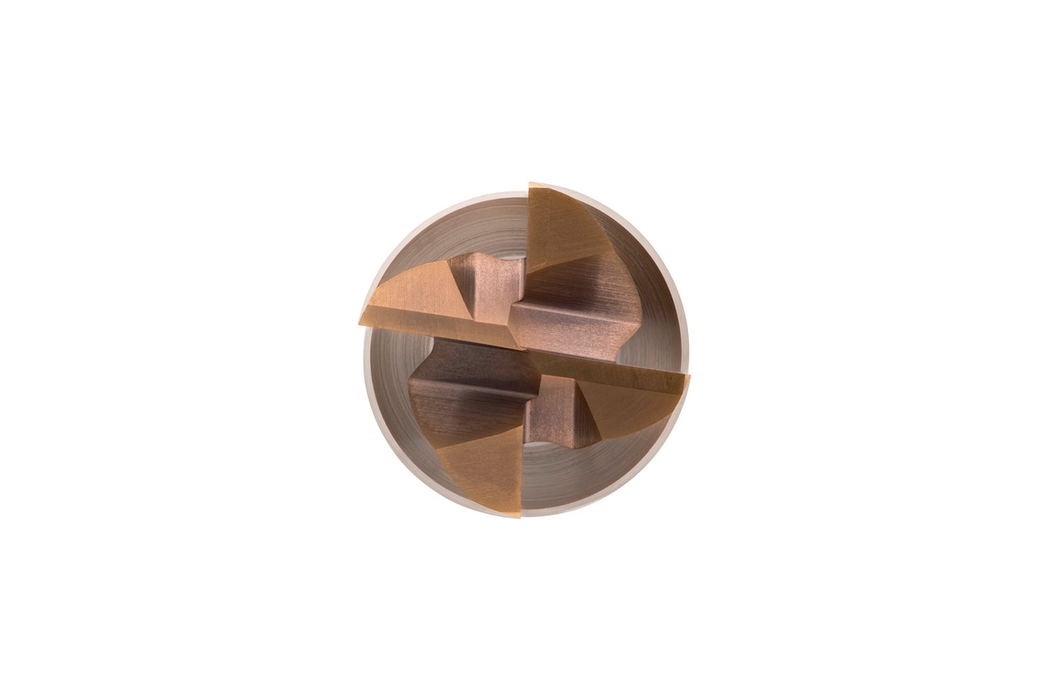

Short series end mill with 4 flutes, diameter 20mm with 38mm length of cut, 104mm overall length and 0.4mm 45° chamfered corner edges, according to DORMER standard with a 20mm plain shank, solid carbide with TiSiN coating, unequal helix with differential pitch and 10° rake angle for shoulder milling, plunging, progressive plunge milling and trochoidal milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$496.33 - $496.33
$496.33
$496.33 - $496.33
$496.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

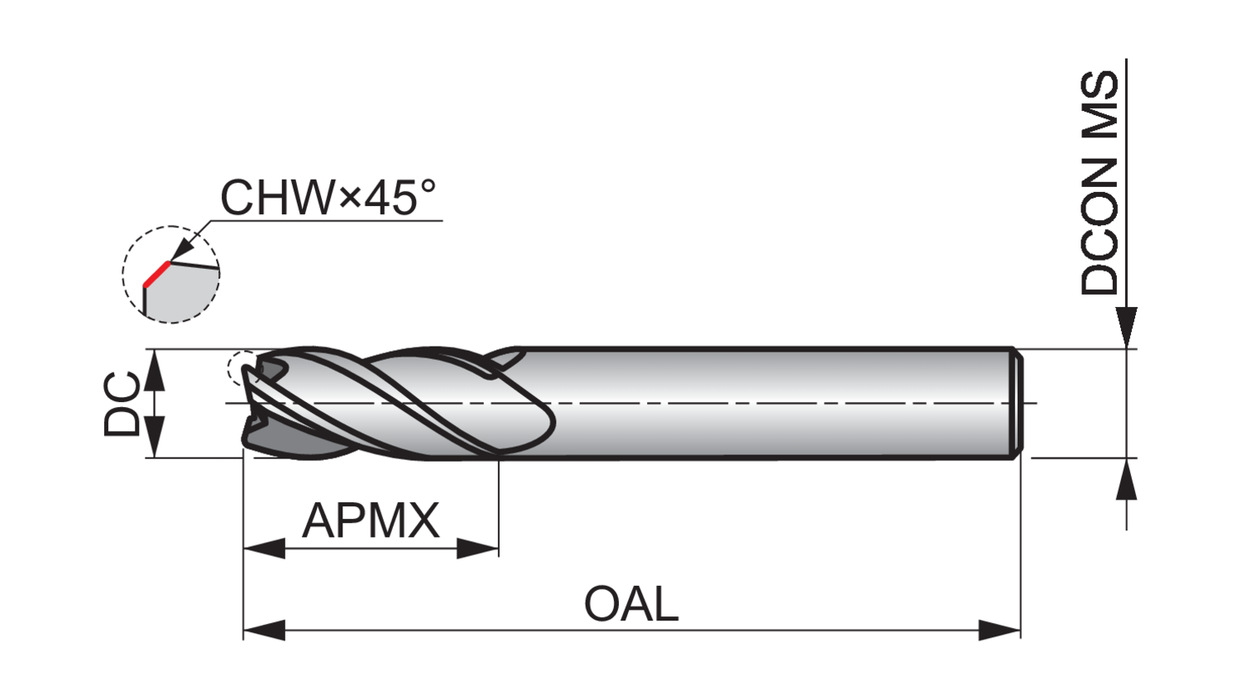

Material: HM

Cutting Diameter - in (DC): 0.7874

Cutting Diameter - mm (DC): 20.0

Overall Length (OAL): 4.0945

Connetion Diameter: 0.7874

Max. Depth of Cut: 1.4961

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

Cutting Edge Count: 4

EDP: 46707014

EAN: 7320760685631

MFG Part Number: 6707014
