R4597/32

R4597/32

SKU DOR6719015
by Dormer Pramet
Primary Use: Possible Use:

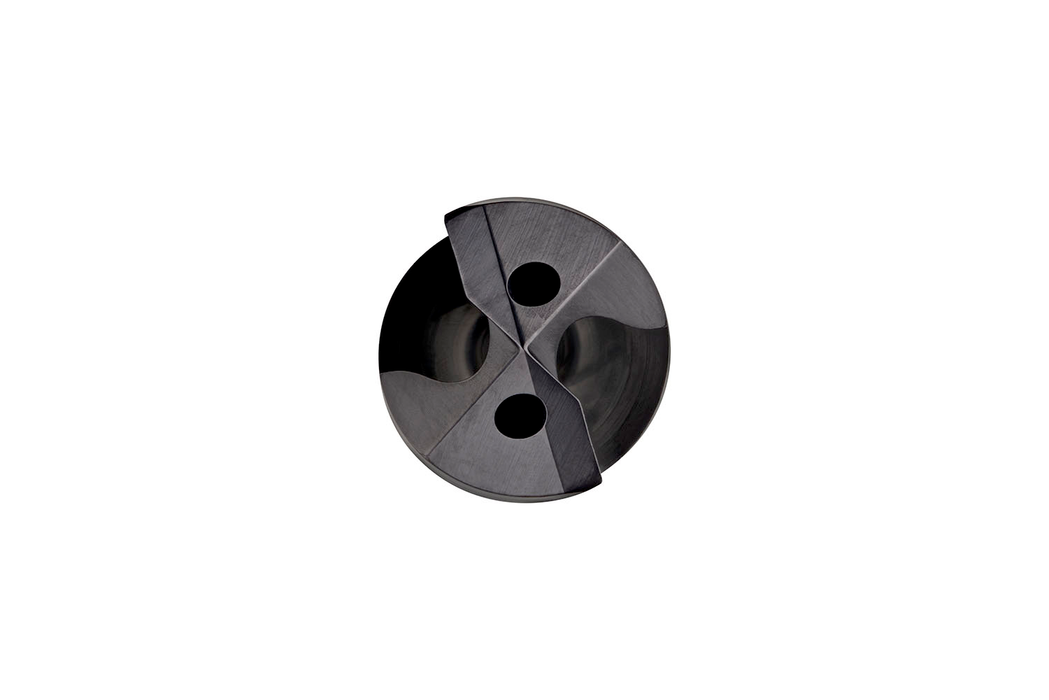

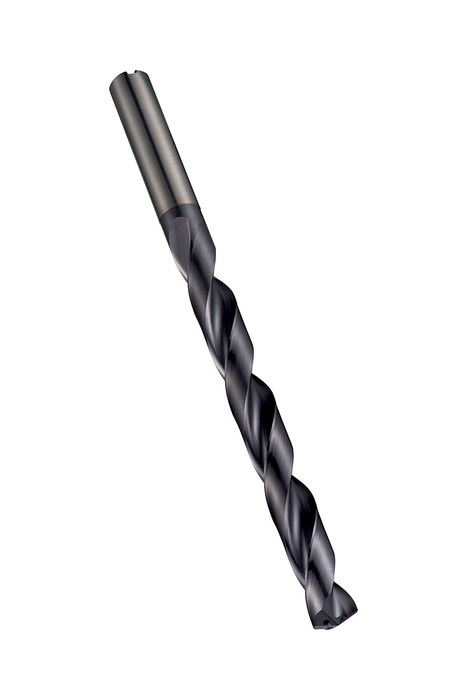

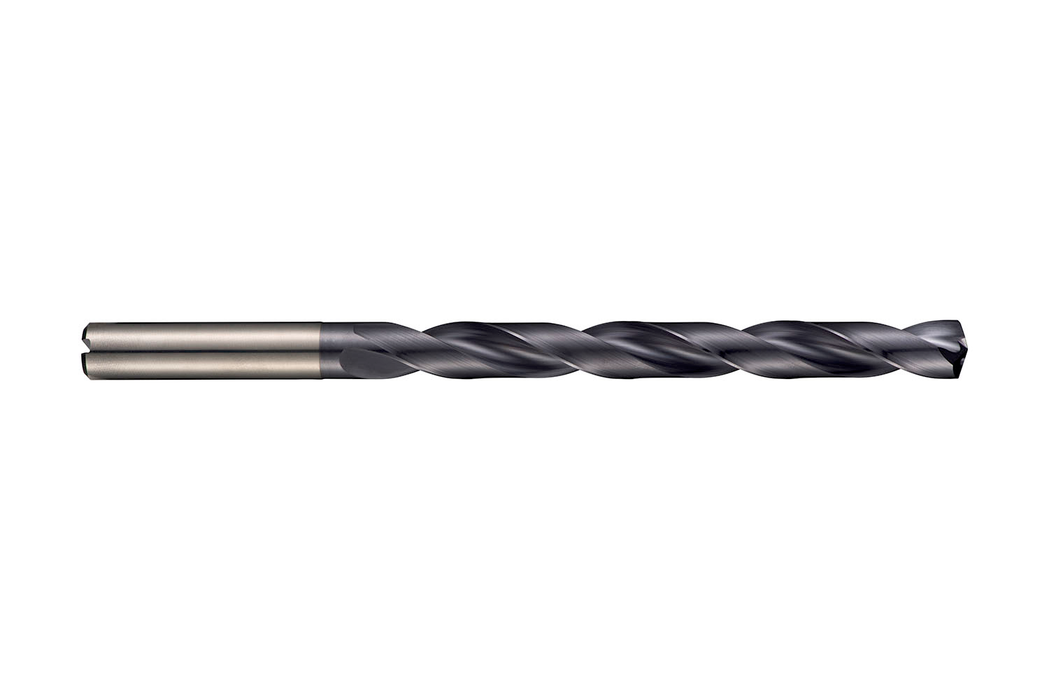

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.2188" (7/32) with an overall length of 104mm and flute length of 62mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$163.43 - $163.43
$163.43
$163.43 - $163.43
$163.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

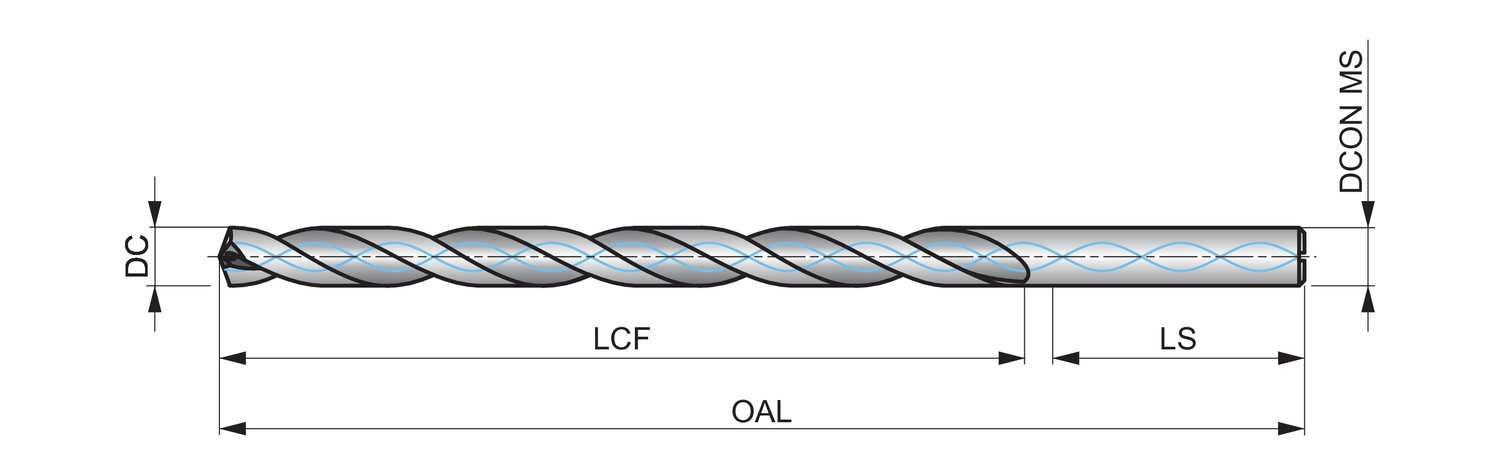

Material: HM

Cutting Diameter - in (DC): 0.2188

Cutting Diameter - mm (DC): 5.56

Drill Point Angle - deg: 140

Flute Length: 2.4409

Through Coolant: 1

Lenxth x Diameter Ratio: 8

Overall Length (OAL): 4.0945

Connetion Diameter: 0.2362

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Fractional: 7/32

Grade: TiAlN

EDP: 46719015

EAN: 7320760686218

MFG Part Number: 6719015
