R4599.4

R4599.4

SKU DOR6719063
by Dormer Pramet
Primary Use: Possible Use:

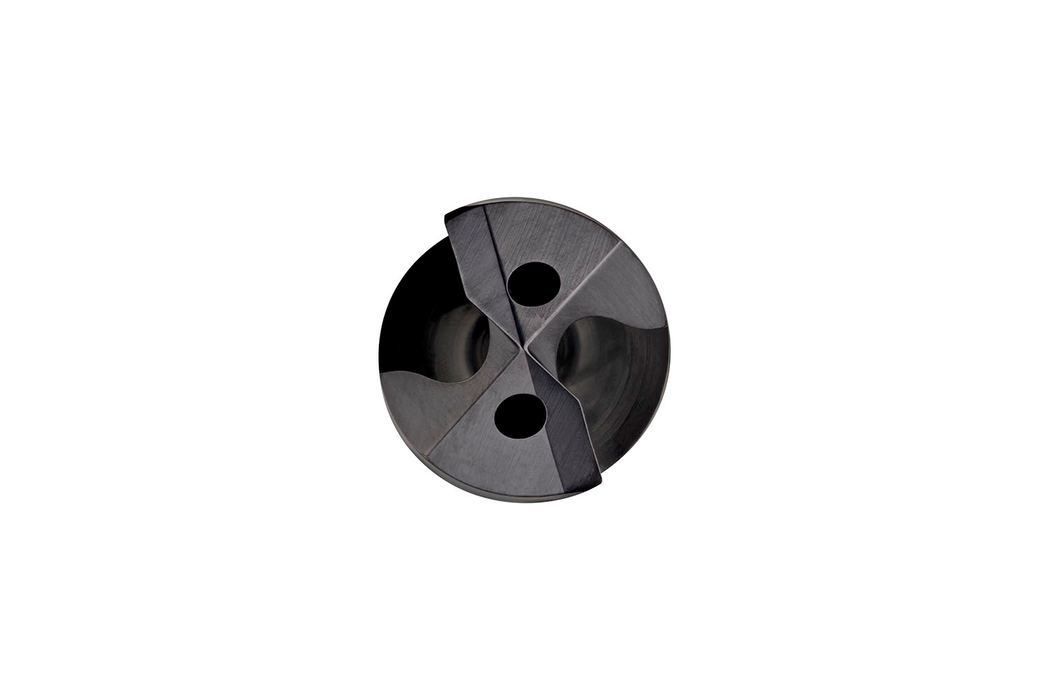

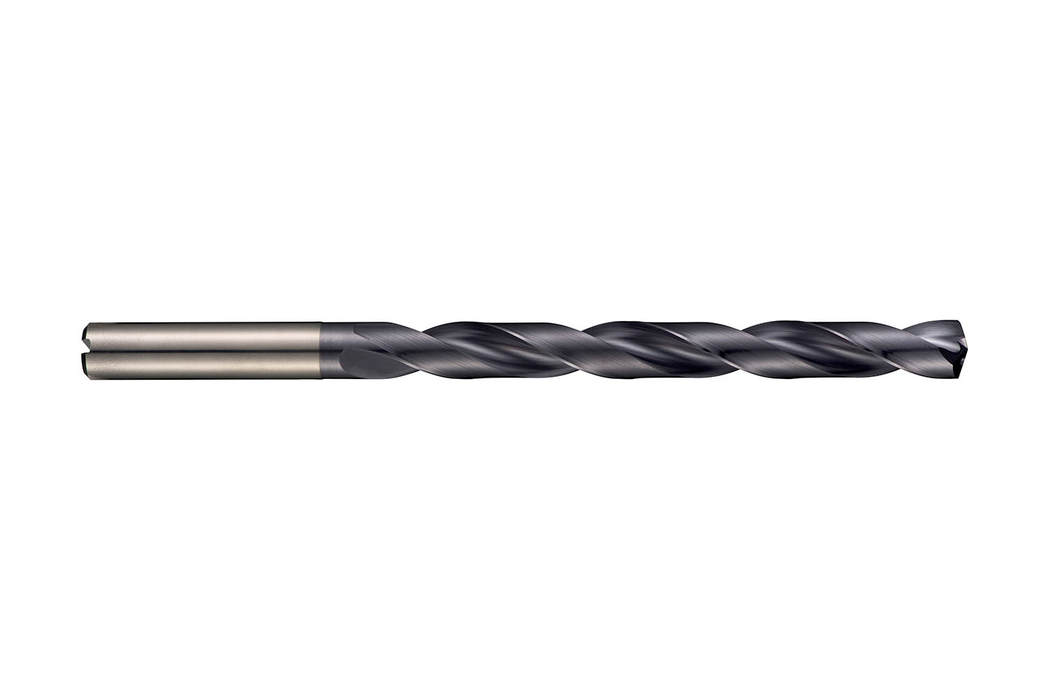

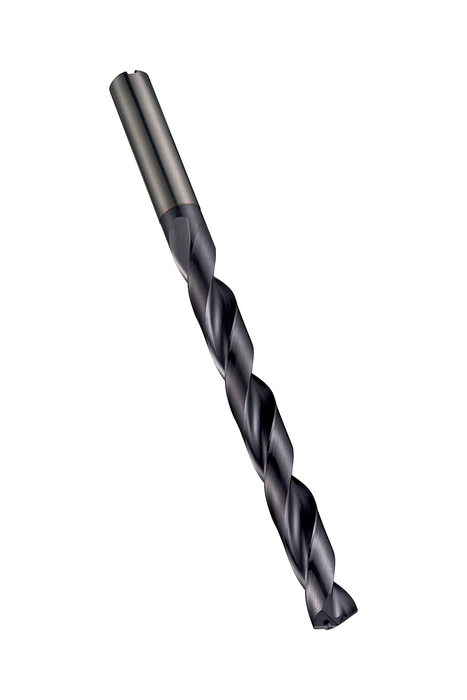

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 9.4mm with an overall length of 152mm and flute length of 106mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$232.57 - $232.57
$232.57
$232.57 - $232.57
$232.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

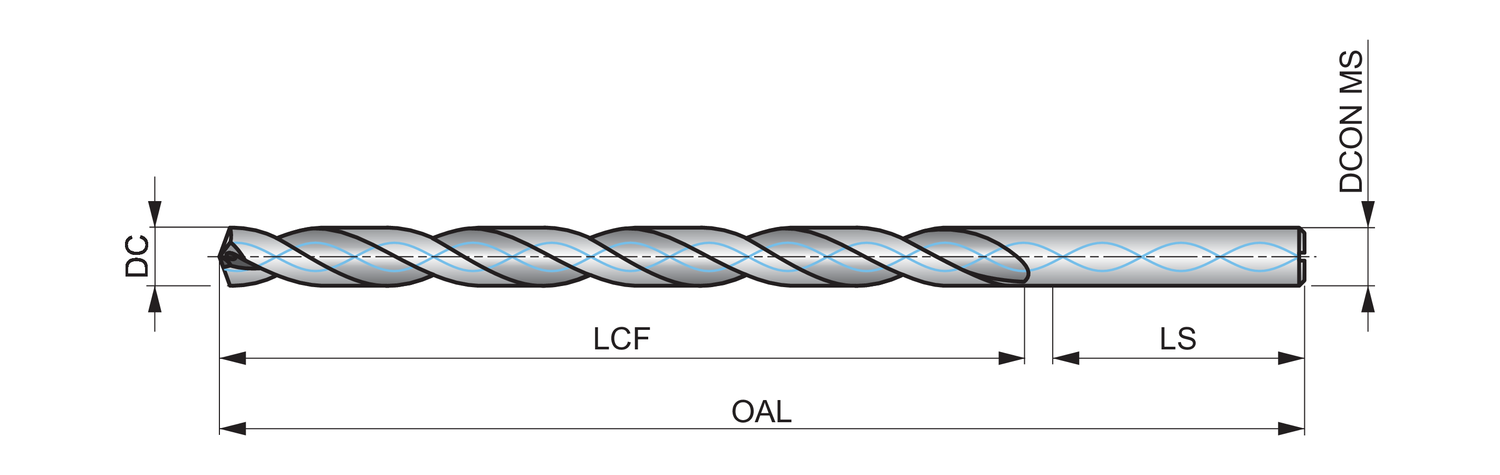

Material: HM

Cutting Diameter - in (DC): 0.3701

Cutting Diameter - mm (DC): 9.4

Drill Point Angle - deg: 140

Flute Length: 4.1732

Through Coolant: 1

Lenxth x Diameter Ratio: 8

Overall Length (OAL): 5.9843

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN

EDP: 46719063

EAN: 7320760686690

MFG Part Number: 6719063
