R45915.0

R45915.0

SKU DOR6719103
by Dormer Pramet
Primary Use: Possible Use:

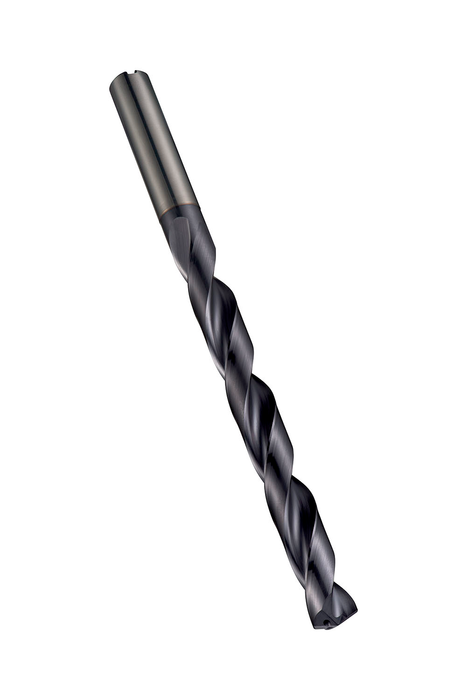

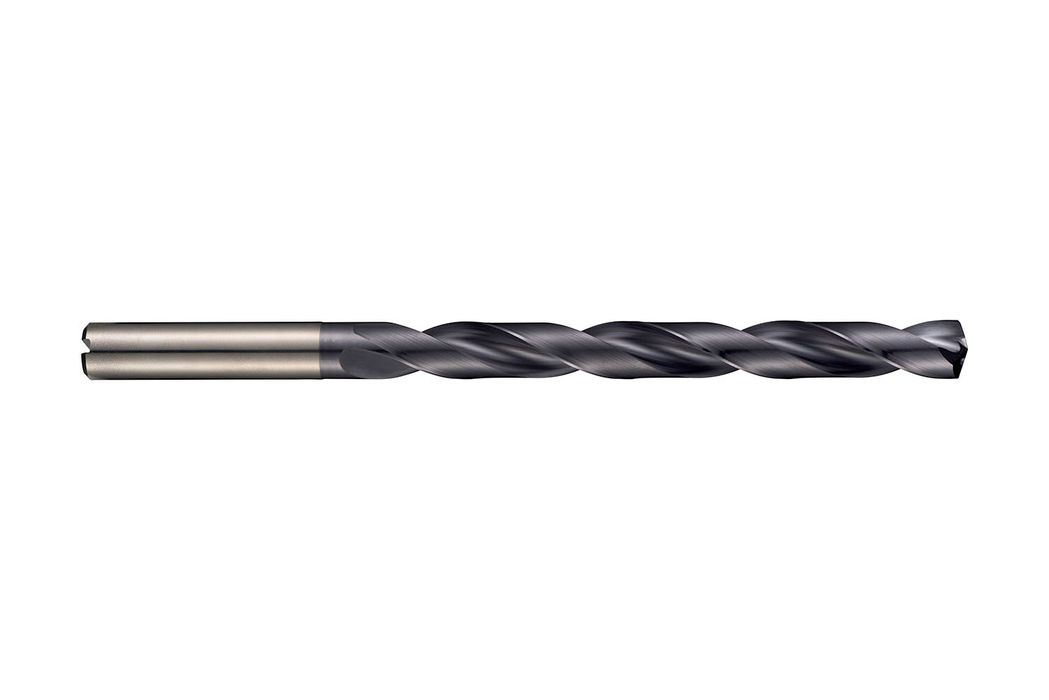

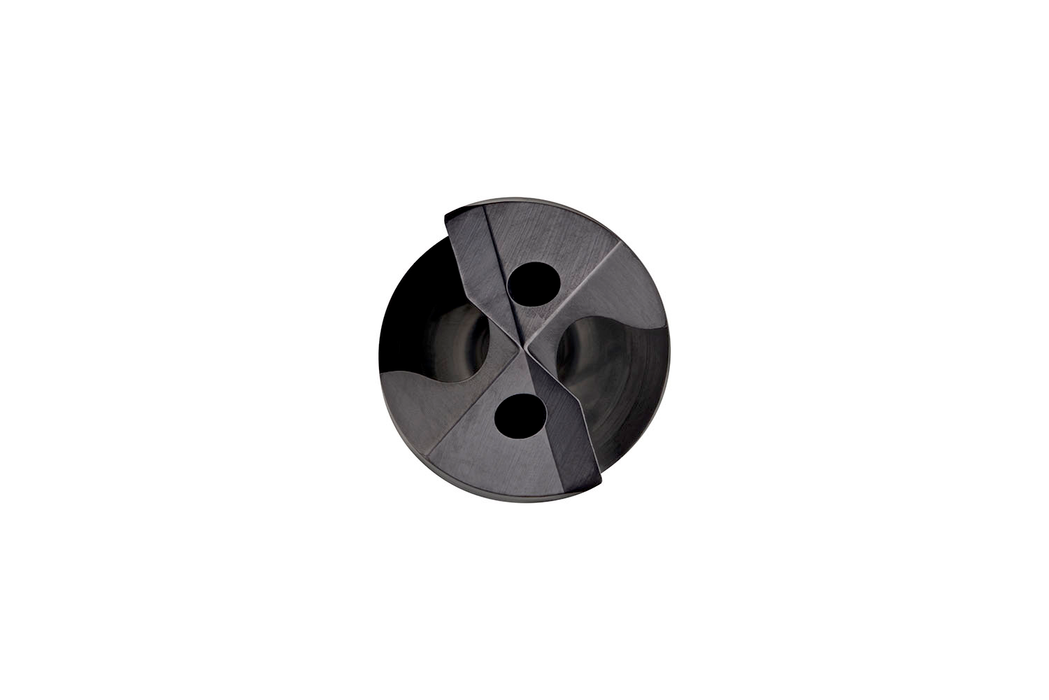

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 15mm with an overall length of 227mm and flute length of 172mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$583.00 - $583.00
$583.00
$583.00 - $583.00
$583.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

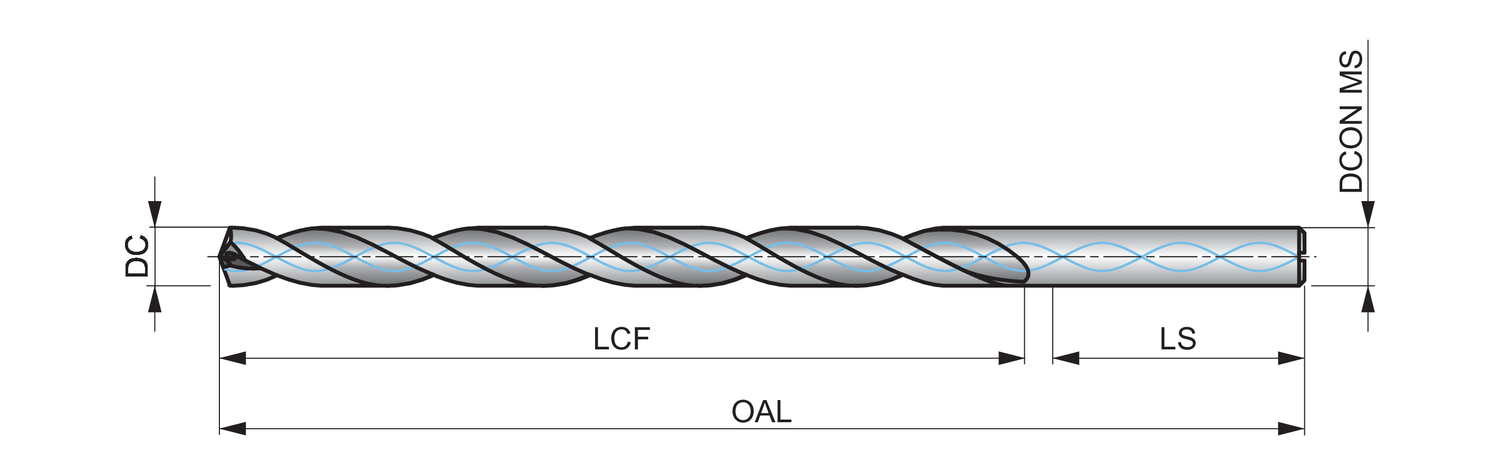

Material: HM

Cutting Diameter - in (DC): 0.5906

Cutting Diameter - mm (DC): 15.0

Drill Point Angle - deg: 140

Flute Length: 6.7717

Through Coolant: 1

Lenxth x Diameter Ratio: 8

Overall Length (OAL): 8.937

Connetion Diameter: 0.6299

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN

EDP: 46719103

EAN: 7320760687093

MFG Part Number: 6719103
