TPU 544S:6640

TPU 544S:6640

SKU DOR6751573
by Dormer Pramet
Primary Use: Possible Use:

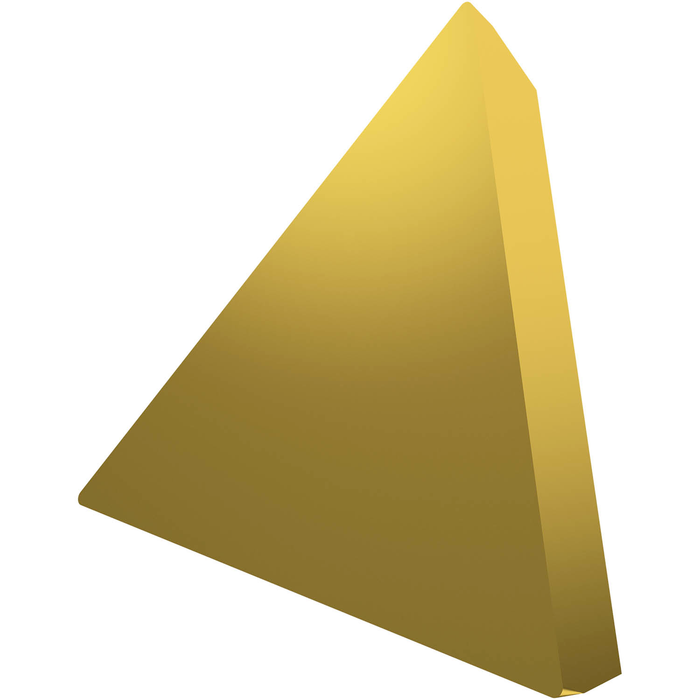

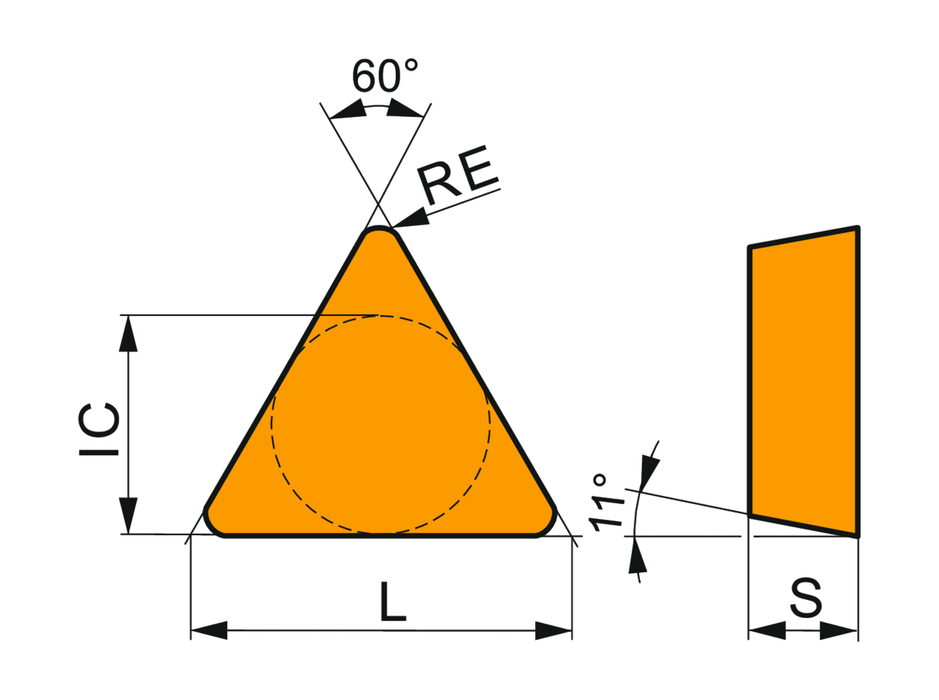

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 15.875", 6.35" thick, 1.6" nose radius, indexing accuracy according to ISO-tolerance class-U with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide, for medium to fine machining

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$25.29 - $25.29
$25.29
$25.29 - $25.29
$25.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.307

Insert Design: TPUN

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.625

Chip Breaker: No chipbreaker

Grade: 6640

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 6751573

EAN: 3603602869395

MFG Part Number: 6751573
