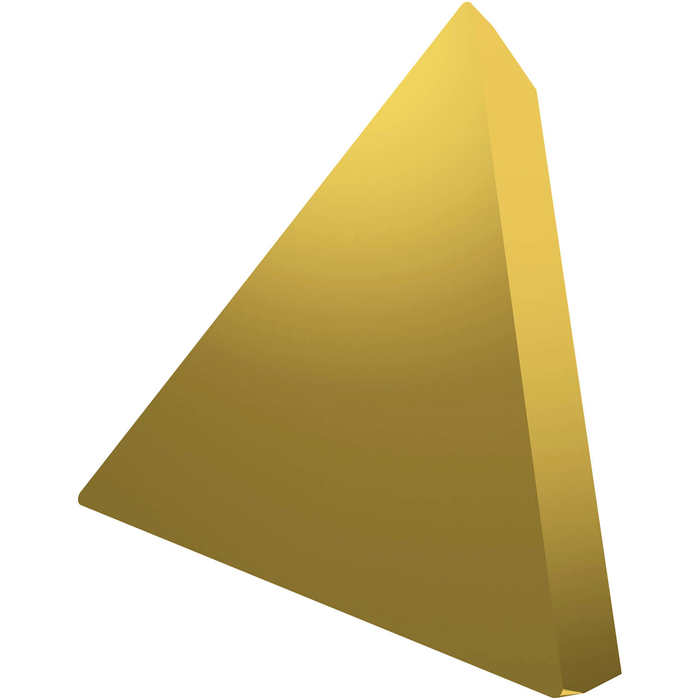

TPU 645S:6640

TPU 645S:6640

SKU DOR6751574
by Dormer Pramet
Primary Use: Possible Use:

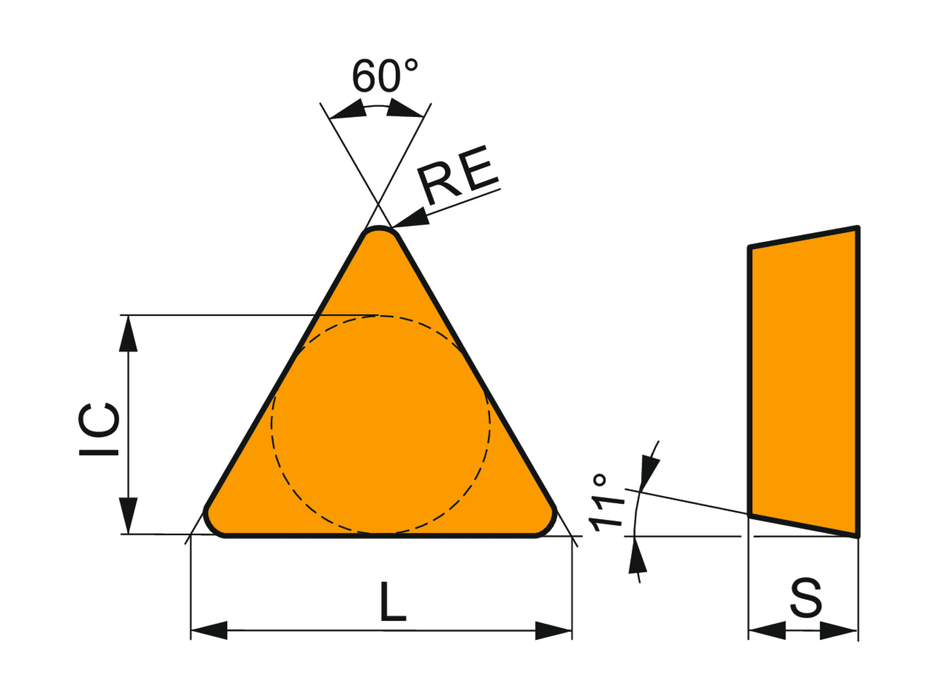

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 3/4", 1/4" thick, 5/64" nose radius, indexing accuracy according to ISO-tolerance class- U, with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide within ISO range K25 - K40, for medium to heavy machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$40.86 - $40.86
$40.86
$40.86 - $40.86
$40.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.374

Insert Design: TPUN

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.75

Chip Breaker: No chipbreaker

Grade: 6640

Corner Radius - in: 0.079

Corner Radius - mm: 2

EDP: 6751574

EAN: 3603602869401

MFG Part Number: 6751574
