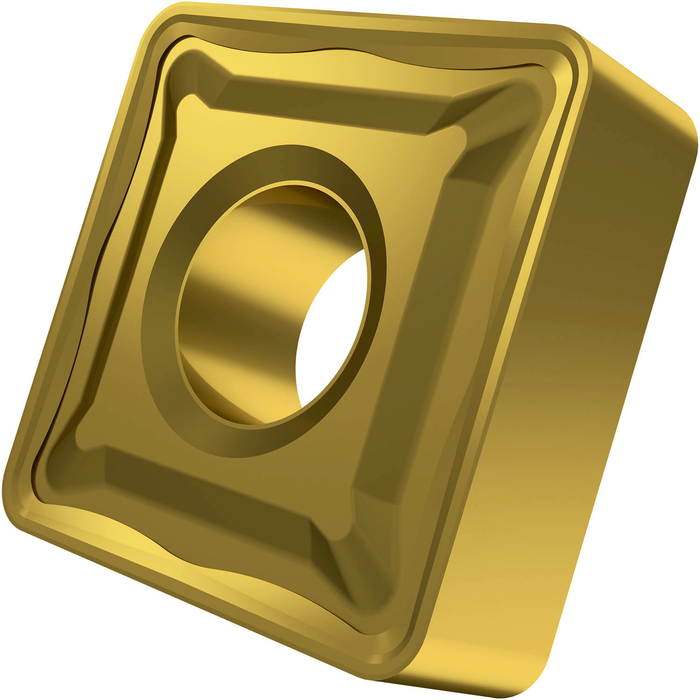

SNMG 643-R:6640

SNMG 643-R:6640

SKU DOR6751580
by Dormer Pramet
Primary Use:

Double-sided negative turning insert, square with inscribed circle diameter of 3/4", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker R, in grade 6640, a MT-CVD coated WC-Co carbide within ISO ranges P20 - P40 and K25 - K40, for medium to heavy machining of steels and cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$27.47 - $27.47
$27.47
$27.47 - $27.47
$27.47
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.354

Insert Design: SNMG

Insert Shape Code: S - square

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.75

Chip Breaker: R

Grade: 6640

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6751580

EAN: 3603602869463

MFG Part Number: 6751580
