SPU 633:6640

SPU 633:6640

SKU DOR6751611
by Dormer Pramet
Primary Use: Possible Use:

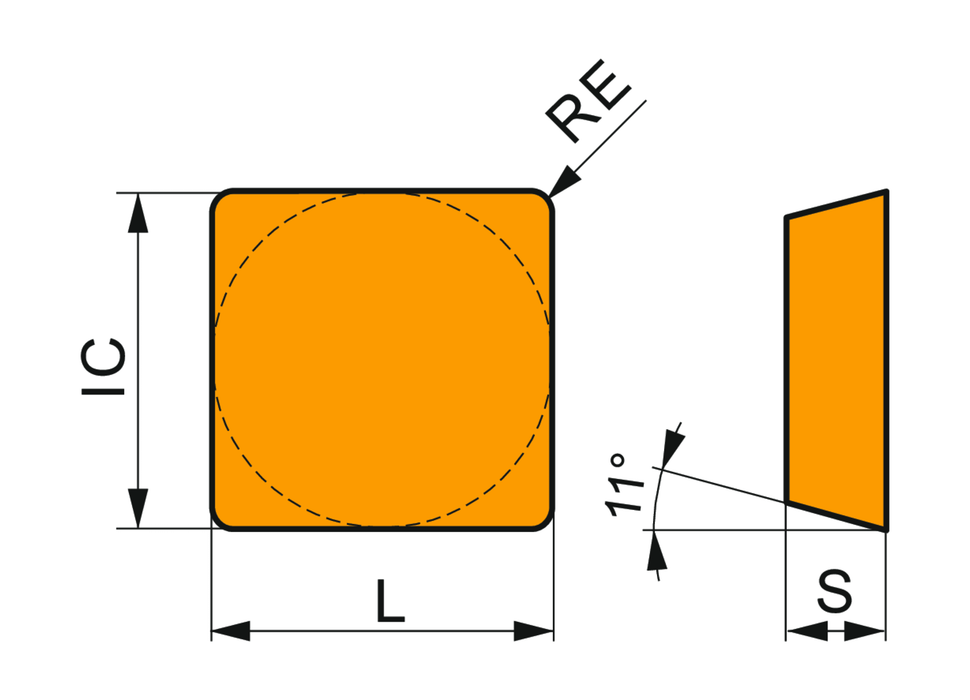

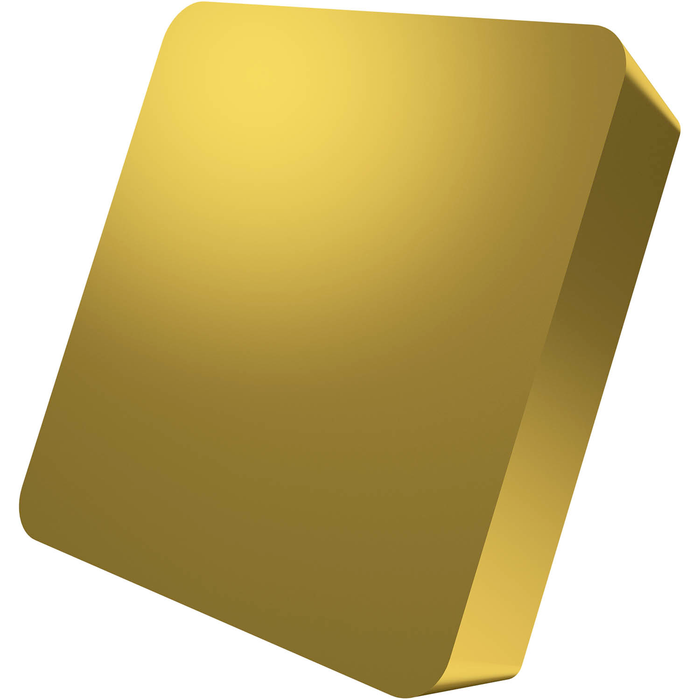

Single-sided positive turning insert, square with 11° clearance, inscribed circle diameter of 3/4", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- U, in grade 6640, a MT-CVD coated WC-Co carbide within ISO range P20 - P40, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$26.40 - $26.40
$26.40
$26.40 - $26.40
$26.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.35

Insert Design: SPUN

Insert Shape Code: S - square

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.75

Chip Breaker: No chipbreaker

Grade: 6640

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6751611

EAN: 3603602869777

MFG Part Number: 6751611
