SPMR 422-48:6640

SPMR 422-48:6640

SKU DOR6751690
by Dormer Pramet
Primary Use: Possible Use:

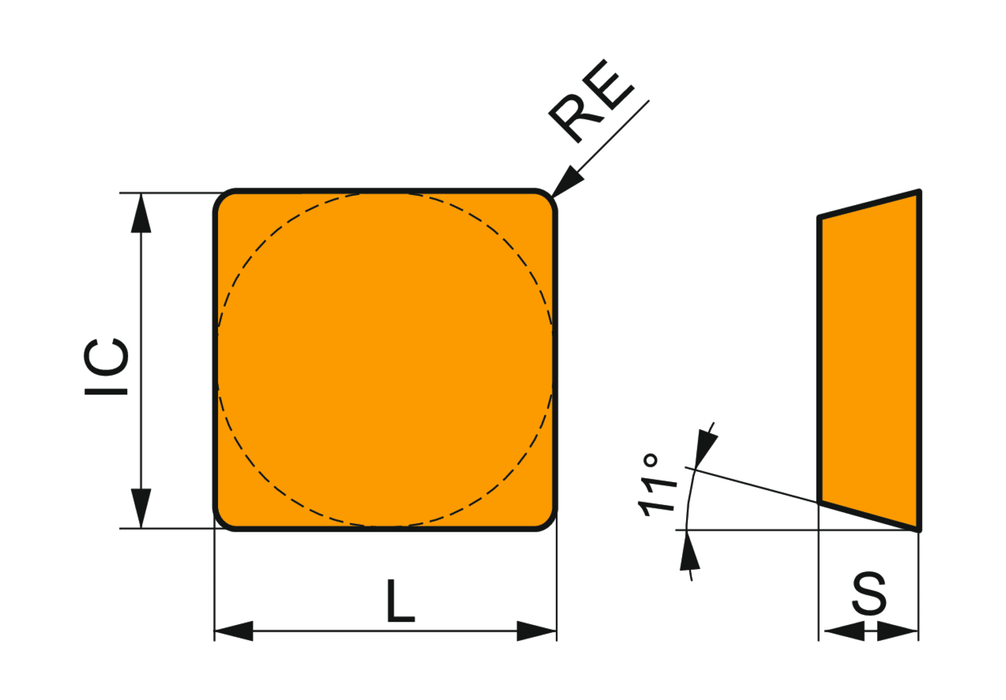

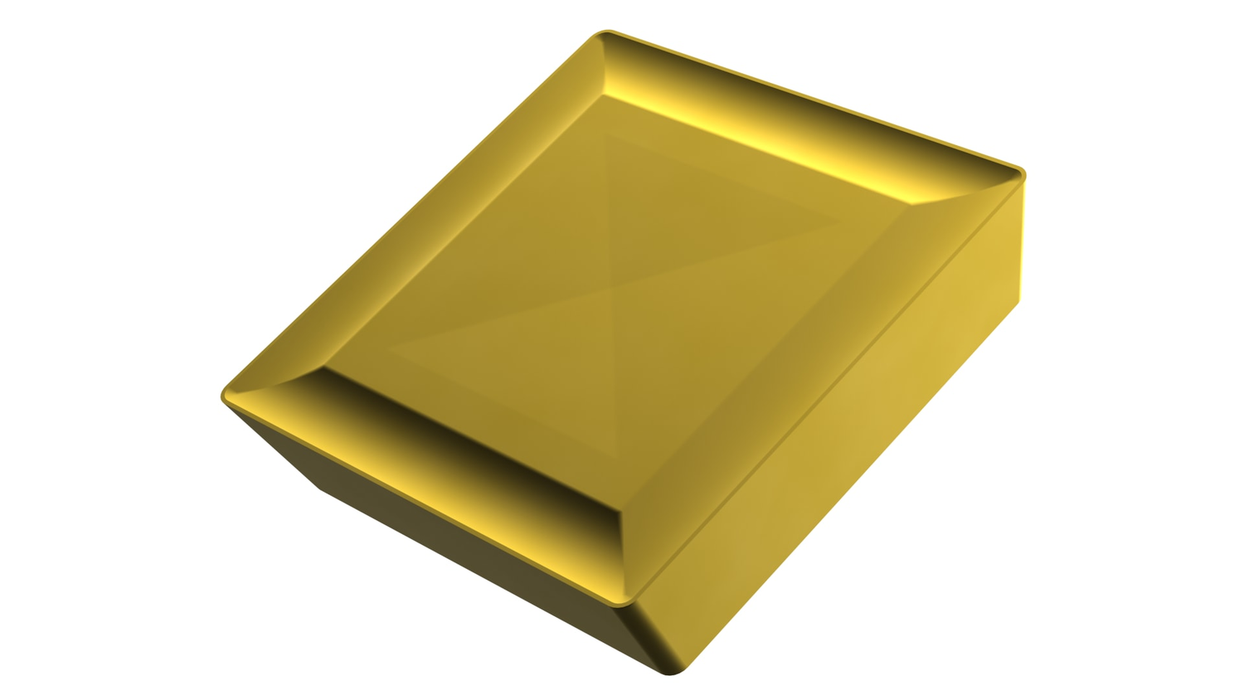

Single-sided positive turning insert, square with 11° clearance, inscribed circle diameter of 1/2", 1/8" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker 48, in grade 6640, a MT-CVD coated WC-Co carbide within ISO ranges P20 - P40 and K25 - K40, for medium to heavy machining of steels and cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$15.61 - $15.61
$15.61
$15.61 - $15.61
$15.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.315

Insert Design: SPMR

Insert Shape Code: S - square

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.5

Chip Breaker: 48

Grade: 6640

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6751690

EAN: 3603602870568

MFG Part Number: 6751690
