TPMR 321-47:6640

TPMR 321-47:6640

SKU DOR6751692
by Dormer Pramet
Primary Use: Possible Use:

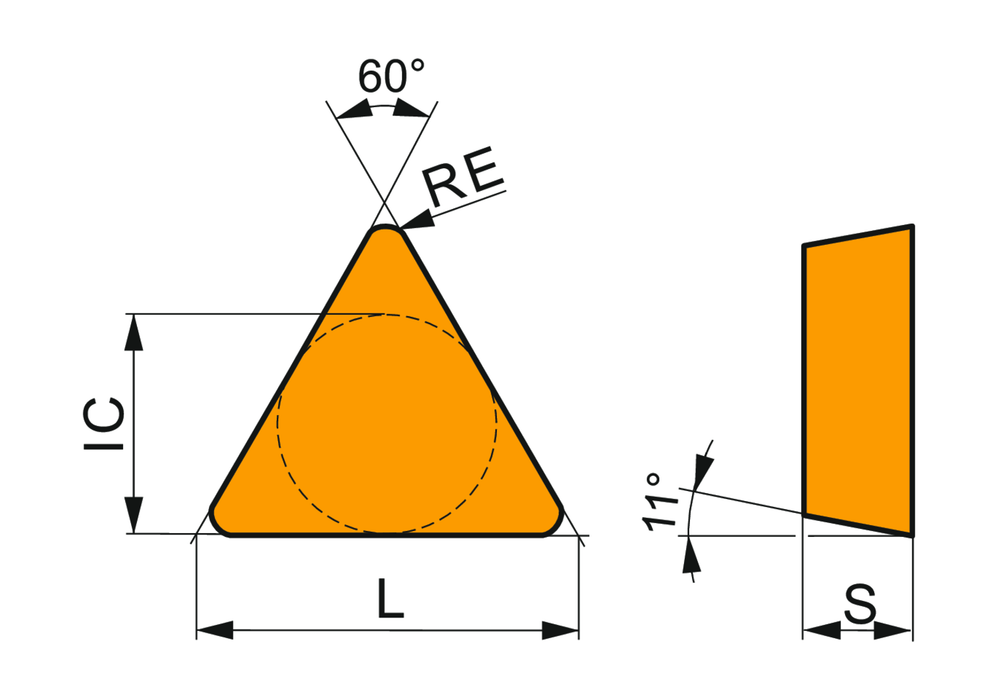

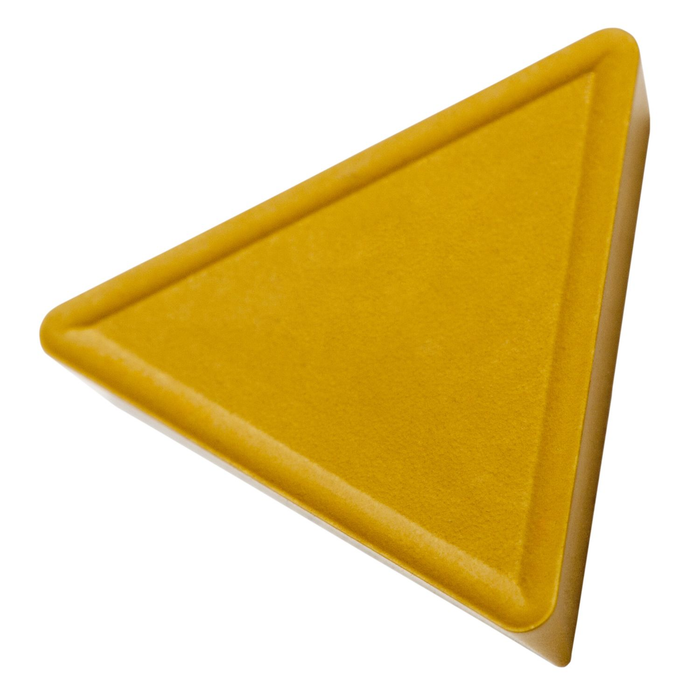

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 3/8", 1/8" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker 47, in grade 6640, a MT-CVD coated WC-Co carbide within ISO ranges P20 - P40 and K25 - K40, for fine to medium machining of steels and cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$13.76 - $13.76
$13.76
$13.76 - $13.76
$13.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.157

Insert Design: TPMR

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.375

Chip Breaker: 47

Grade: 6640

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6751692

EAN: 3603602870582

MFG Part Number: 6751692
