KNUX 160410SL-73:6640

KNUX 160410SL-73:6640

SKU DOR6751725
by Dormer Pramet
Primary Use: Possible Use:

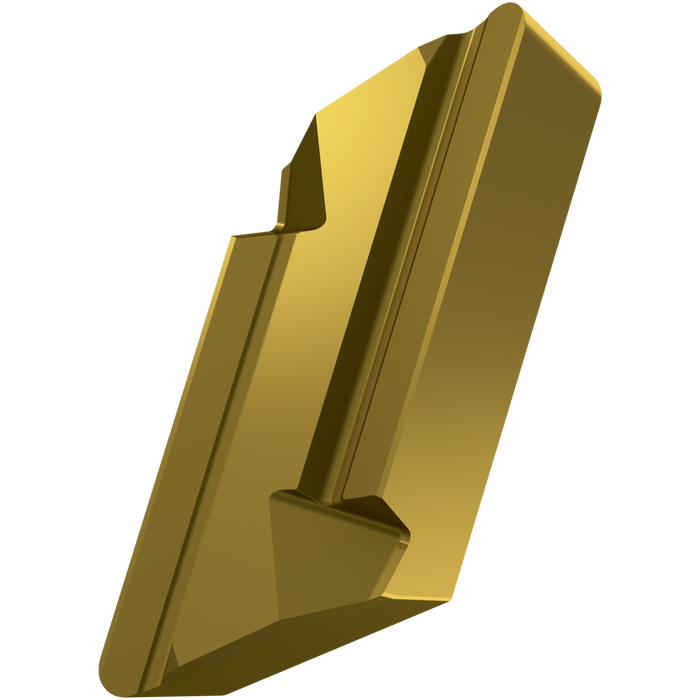

Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 1mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 73 with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide within ISO ranges P20-P40 and M20-M35, for medium to heavy machining of steels and stainless-steels with a left handed turning tool

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$20.76 - $20.76
$20.76
$20.76 - $20.76
$20.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

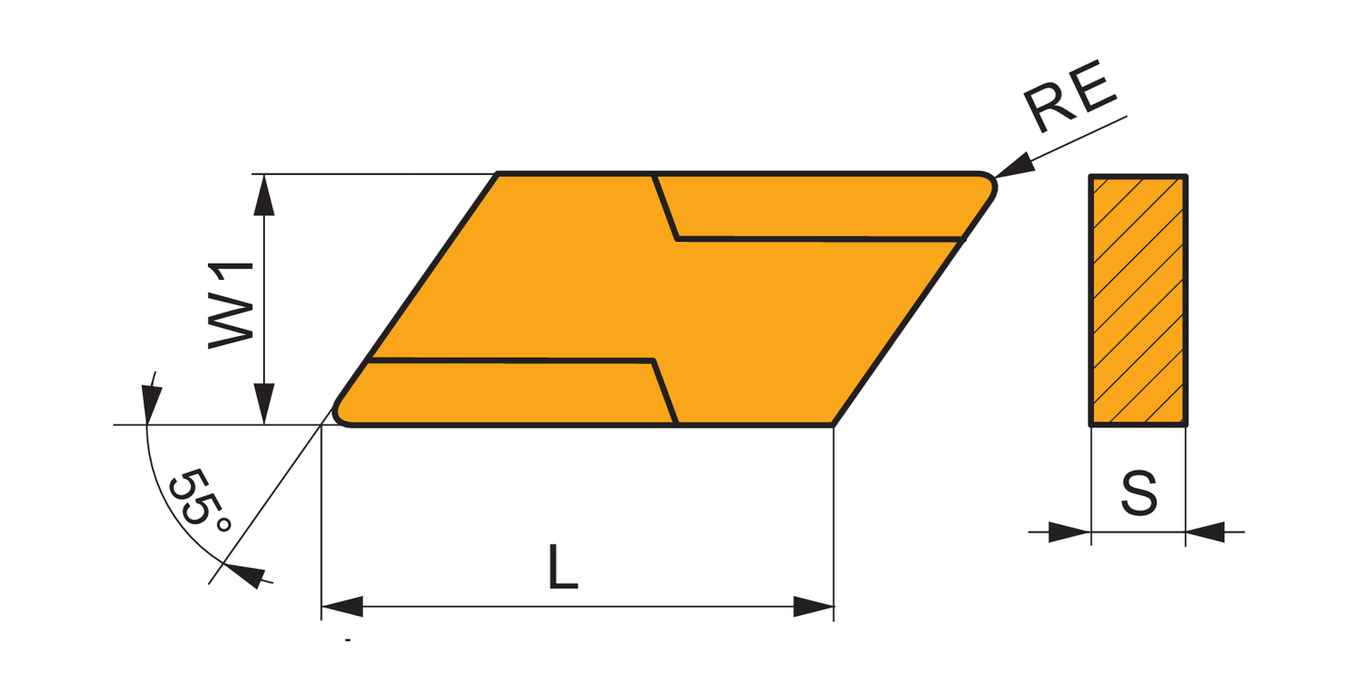

Max. Depth of Cut: 0.189

Insert Design: KNUX

Insert Shape Code: K - parallelogram 55° included angle

Insert Thickness: 0.187

Chip Breaker: 73

Grade: 6640

Corner Radius - in: 0.039

Corner Radius - mm: 1

EDP: 6751725

EAN: 3603602870919

MFG Part Number: 6751725
