SPU 422:S26
SKU DOR6751791
Primary Use:

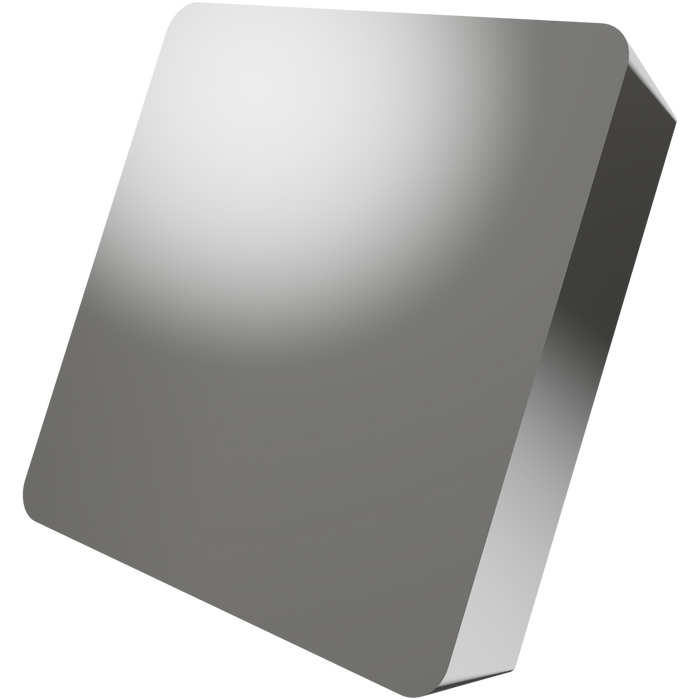

Single-sided milling insert SPUN 1203 with a plane rake surface, square for a maximum depth of cut of .3543", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-U, S26 uncoated WC-(Ti, Ta, Nb)C-Co carbide
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$10.57
-
Original price
$10.57
Original price
$10.57
$10.57
-
$10.57
Current price
$10.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

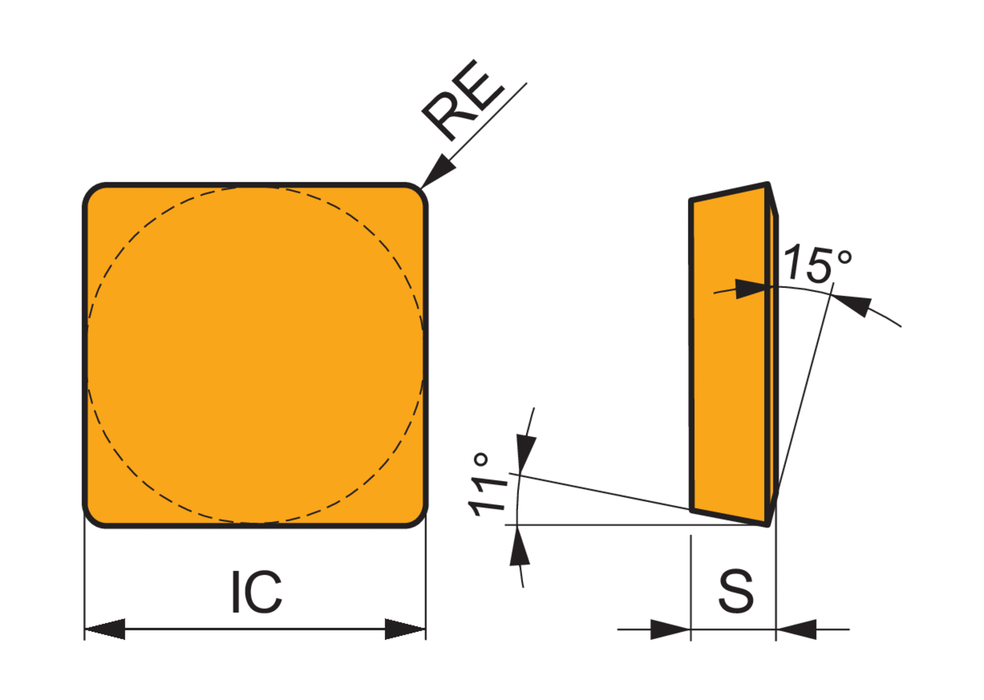

Max. Depth of Cut: 0.354
Insert Design: SPUN
Insert Shape Code: S - square
Insert Thickness: 0.125
Inscribed Circle Diameter: 0.5
Chip Breaker: No chipbreaker
Grade: S26
Corner Radius - in: 0.031
Corner Radius - mm: 0.8
EDP: 6751791
EAN: 3603602871572
MFG Part Number: 6751791
