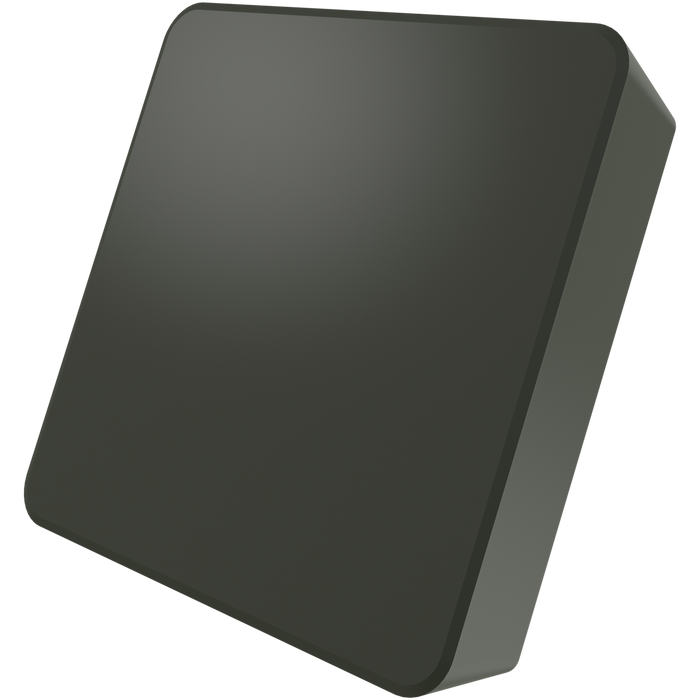

SPU 845S:S26

SPU 845S:S26

SKU DOR6751794
by Dormer Pramet
Primary Use:

Single-sided milling insert SPUN 2506 with a plane rake surface, square for a maximum depth of cut of .7087", with .0787" corner radius, an indexing accuracy according to ISO-tolerance class-U with rounded cutting edges and facet, S26 uncoated WC-(Ti, Ta, Nb)C-Co carbide

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$43.79 - $43.79
$43.79
$43.79 - $43.79
$43.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

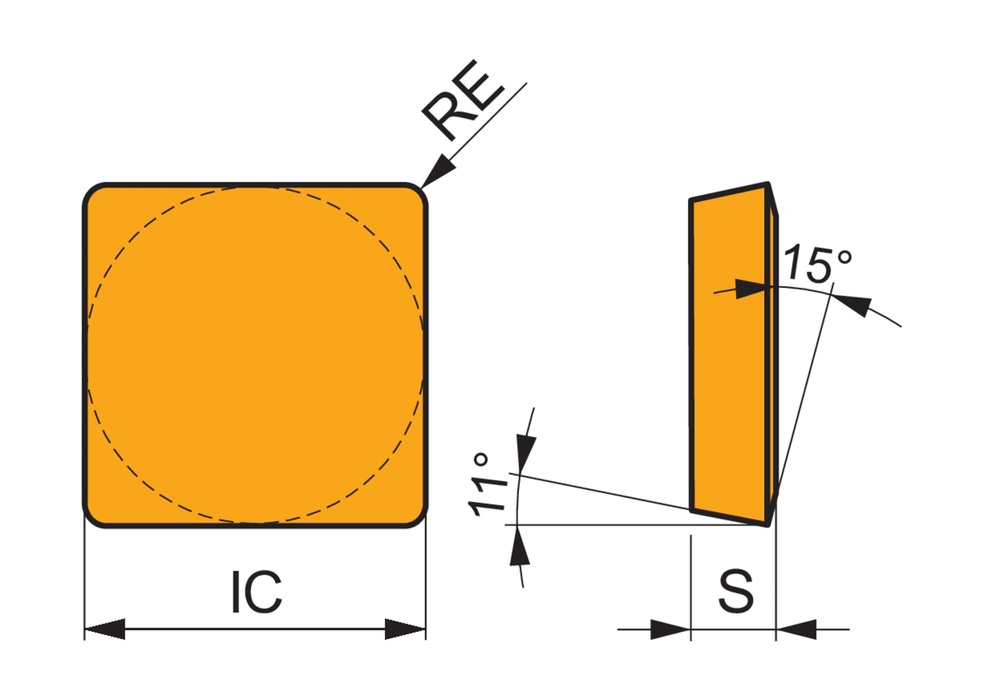

Max. Depth of Cut: 0.709

Insert Design: SPUN

Insert Shape Code: S - square

Insert Thickness: 0.25

Inscribed Circle Diameter: 1.0

Chip Breaker: No chipbreaker

Grade: S26

Corner Radius - in: 0.079

Corner Radius - mm: 2

EDP: 6751794

EAN: 3603602871602

MFG Part Number: 6751794
