VCGT 220515F-FA:HF7

VCGT 220515F-FA:HF7

SKU DOR6751854
by Dormer Pramet
Primary Use:

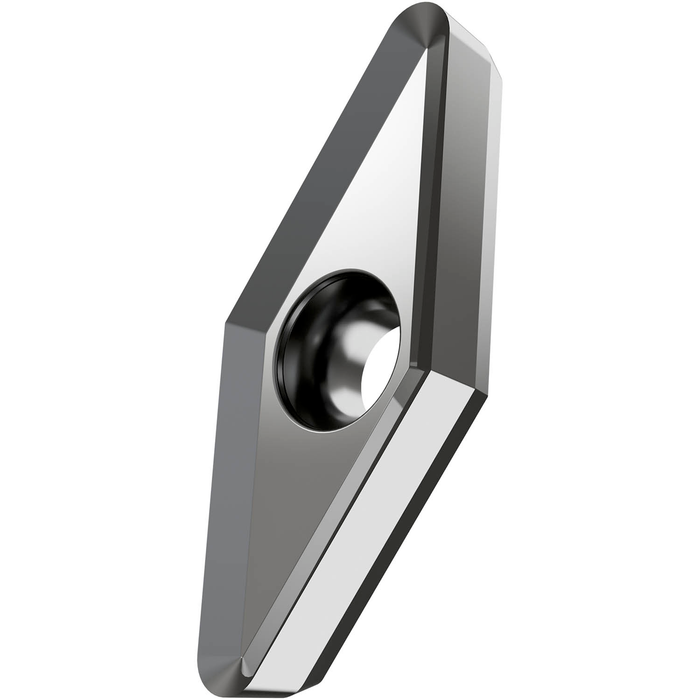

Single-sided milling insert VCGT 2205 with chip-breakers, 35° rhomboid for a maximum depth of cut of .7874", with .0591" corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with end mills SVC22C

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$36.81 - $36.81
$36.81
$36.81 - $36.81
$36.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

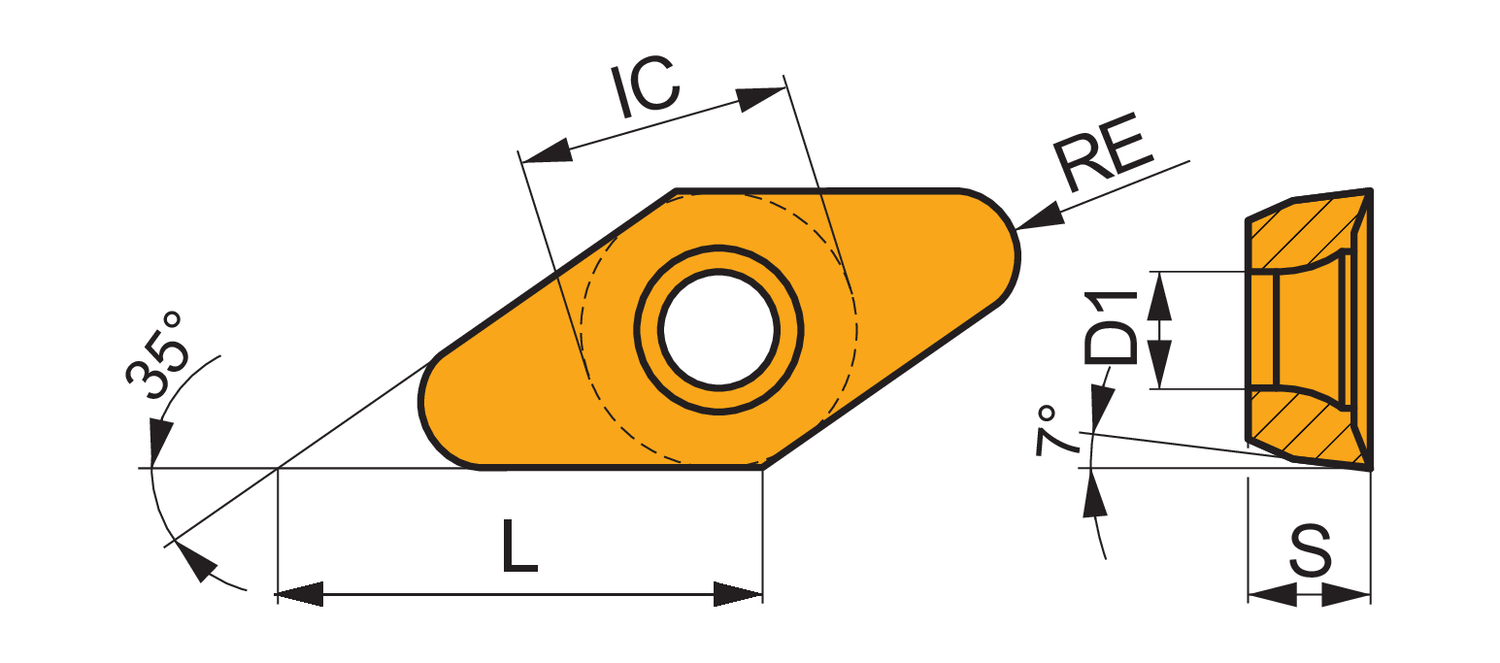

Max. Depth of Cut: 0.787

Insert Design: VCGT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.217

Inscribed Circle Diameter: 0.5

Chip Breaker: FA

Grade: HF7

Corner Radius - in: 0.059

Corner Radius - mm: 1.5

EDP: 6751854

EAN: 3603602872203

MFG Part Number: 6751854
