DCMW 32.51FN:PD1

DCMW 32.51FN:PD1

SKU DOR6751869
by Dormer Pramet
Primary Use:

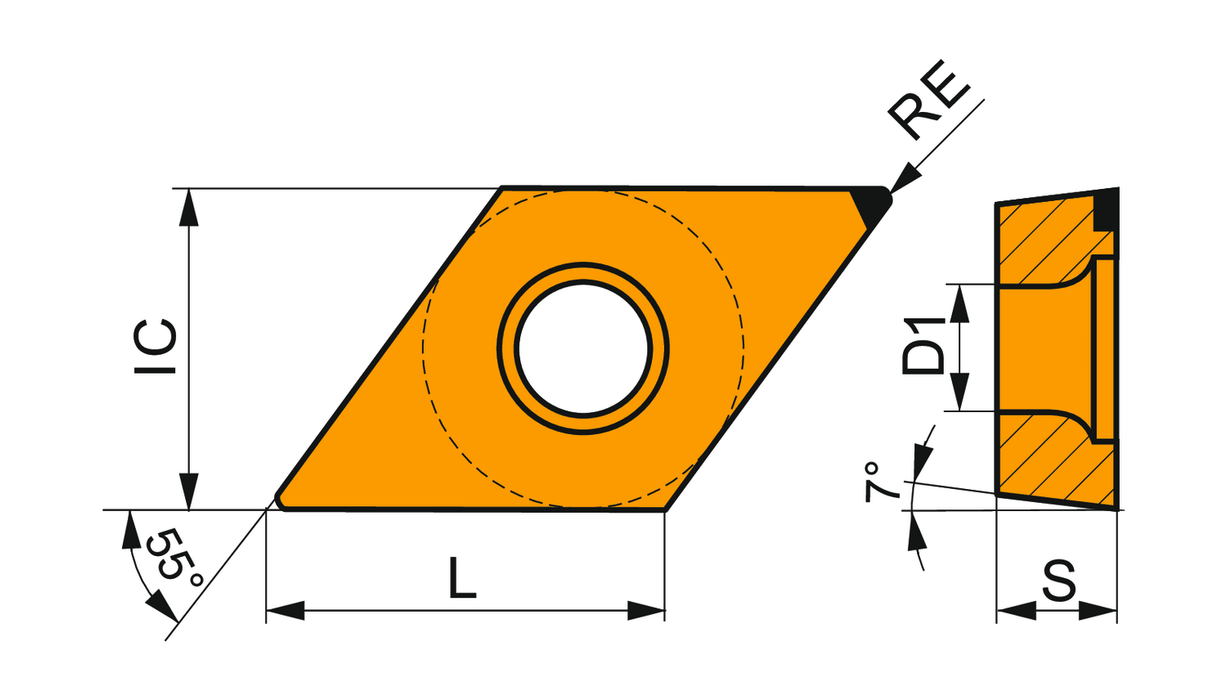

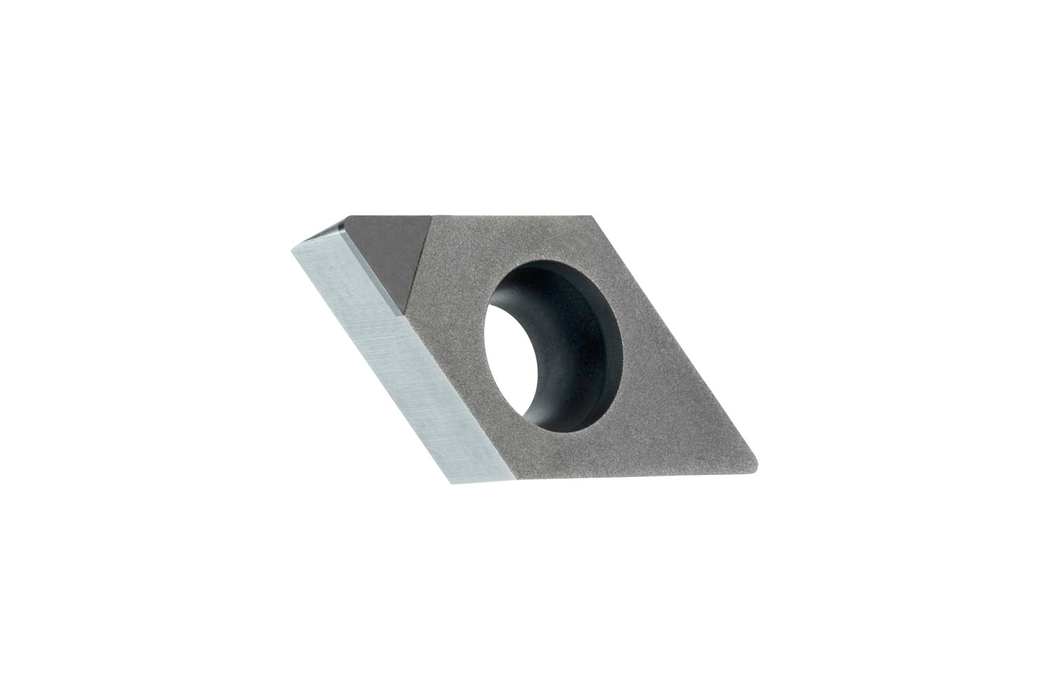

Turning insert with PCD tipped corner, 55° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/64" nose radius, indexing accuracy according to ISO-tolerance class-M, sharp cutting edges, in grade PD1, an uncoated polycrystaline diamond within ISO range N05-N25, for high-speed machining of non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$169.29 - $169.29
$169.29
$169.29 - $169.29
$169.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.079

Insert Design: DCMW

Insert Shape Code: D - rhombic 55° included angle

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: No chipbreaker

Grade: PD1

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6751869

EAN: 3603602872357

MFG Part Number: 6751869
