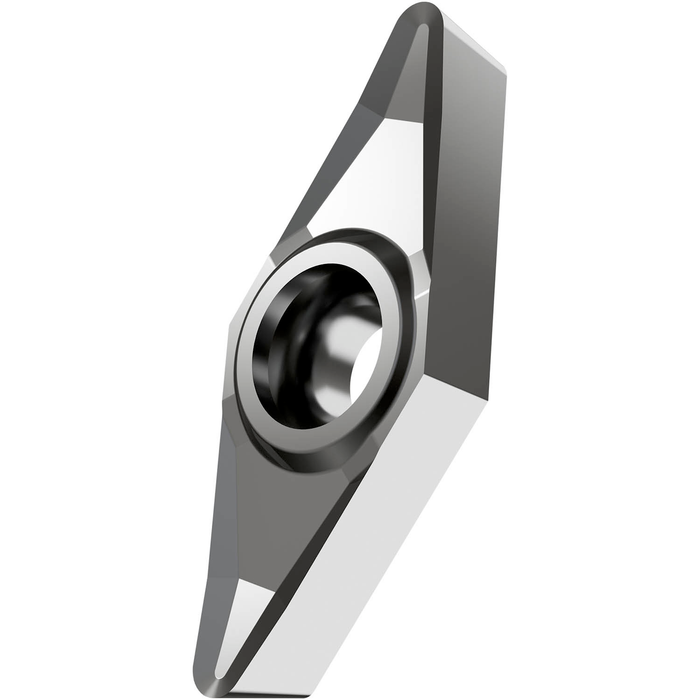

VCGT 220.5F-AL:HF7

VCGT 220.5F-AL:HF7

SKU DOR6752080
by Dormer Pramet
Primary Use:

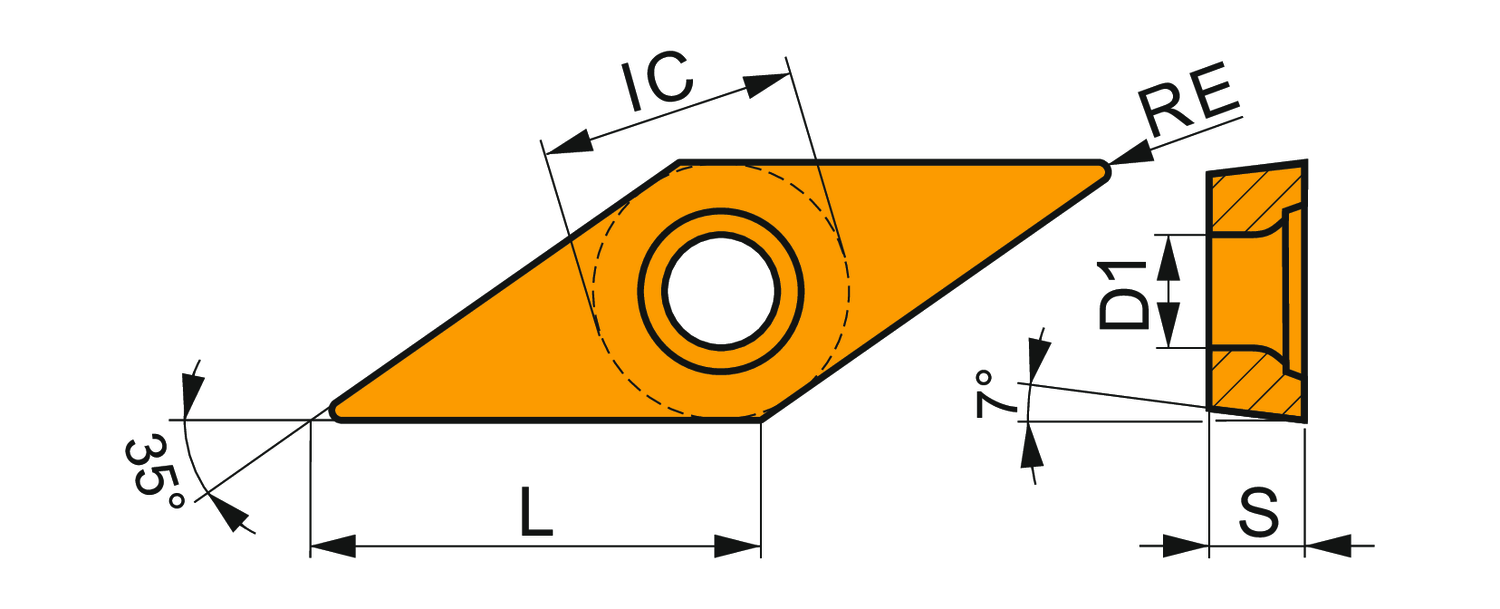

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 1/8" thick, 1/128" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker AL with sharp cutting edges, in grade HF7, an uncoated fine grained WC-Co carbide within ISO range N10-N25, for fine to heavy machining of non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$24.86 - $24.86
$24.86
$24.86 - $24.86
$24.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.11

Insert Design: VCGT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.25

Chip Breaker: AL

Grade: HF7

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 6752080

EAN: 3603602874467

MFG Part Number: 6752080
