LNUX 40-1129003:6630

LNUX 40-1129003:6630

SKU DOR6752120
by Dormer Pramet
Primary Use: Possible Use:

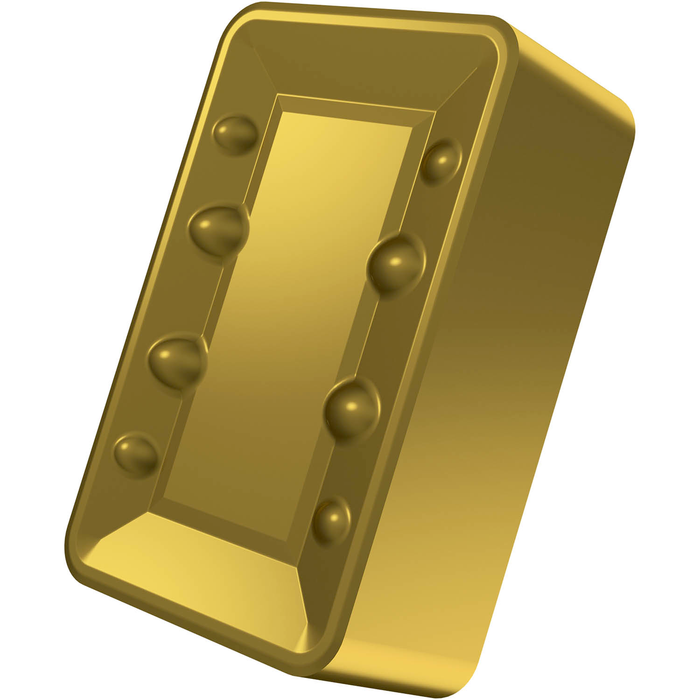

Special design negative turning insert, rectangular with a main edge length of 40mm, 3.2mm nose radius and indexing accuracy according to ISO-tolerance class-U, chip-breaker 1129003, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for extra heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$126.43 - $126.43
$126.43
$126.43 - $126.43
$126.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

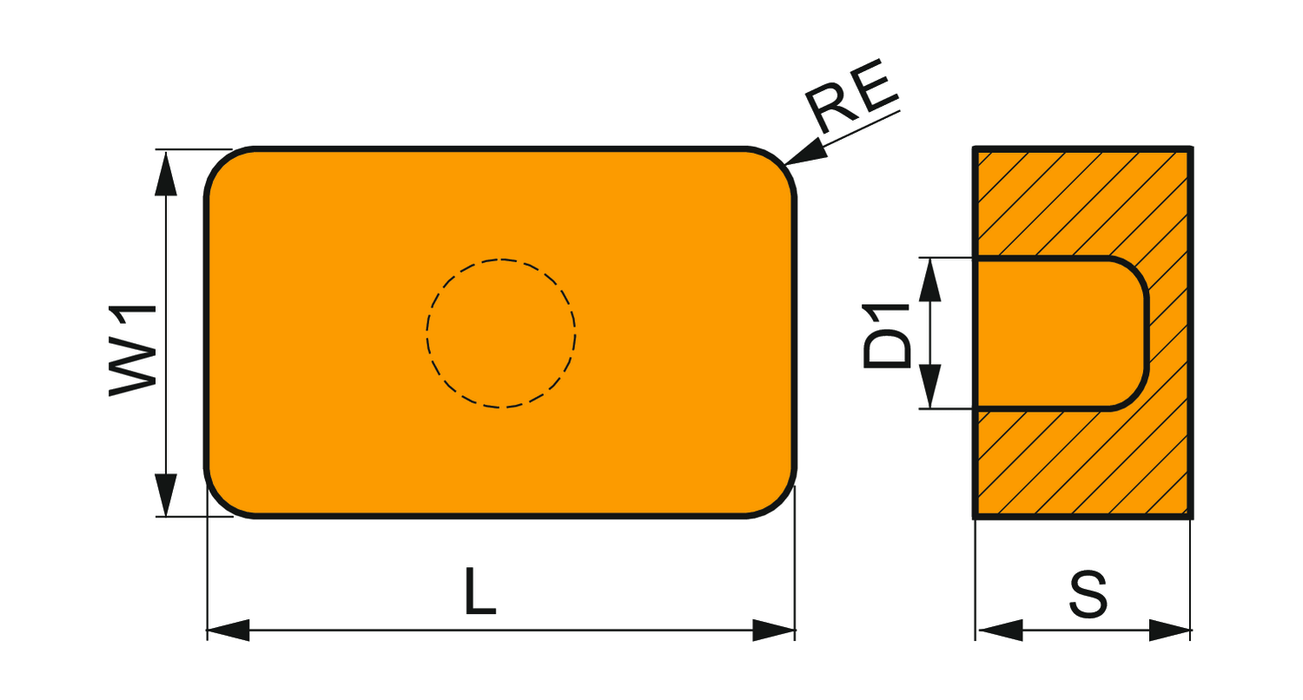

Max. Depth of Cut: 1.063

Insert Design: LNUX 40, LN.X 50

Insert Shape Code: L - rectangular

Insert Thickness: 0.551

Chip Breaker: 40 - 03

Grade: 6630

Corner Radius - in: 0.126

Corner Radius - mm: 3.2

EDP: 6752120

EAN: 3603602874863

MFG Part Number: 6752120
