SNMX 15-R07:6640
SKU DOR6752182
Primary Use:

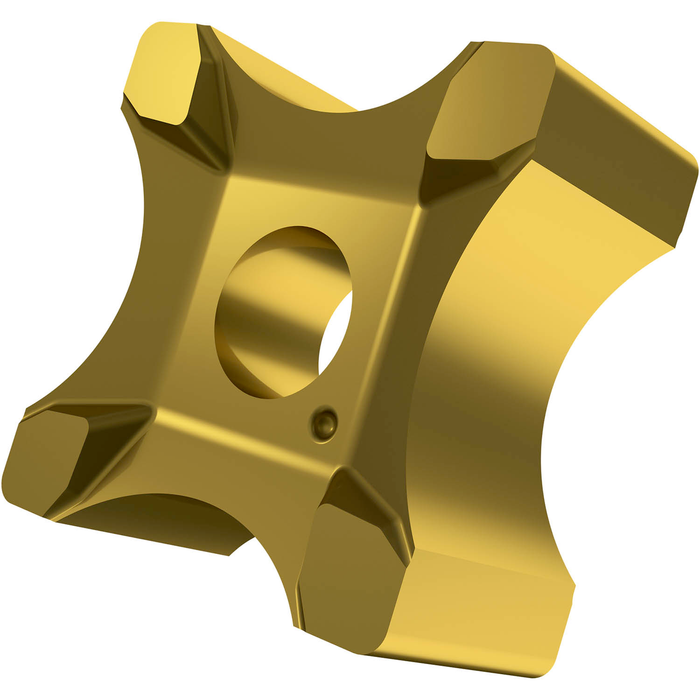

Double-sided scarfing insert, square with a main cutting edge length of 15.875mm, 8.15mm thick and a working radius of 7mm for tube diameters from 8 to 10mm, 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for deburring the outside of steel and stainless-steel tubes and pipes
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$24.83
-
Original price
$24.83
Original price
$24.83
$24.83
-
$24.83
Current price
$24.83
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Insert Design: SNMX 15-R
Insert Shape Code: S - square
Insert Thickness: 0.321
Inscribed Circle Diameter: 0.625
Chip Breaker: With chipbreaker -no designation
Grade: 6640
EDP: 6752182
EAN: 3603602875488
MFG Part Number: 6752182
