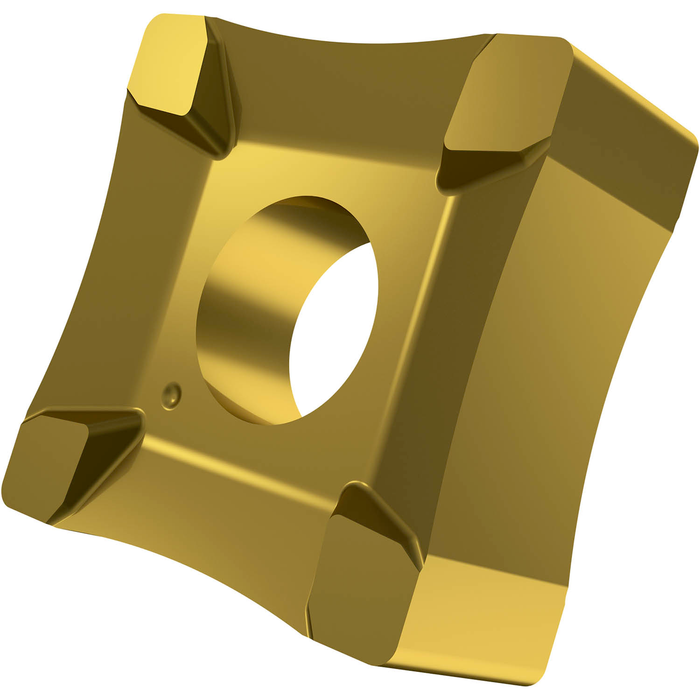

SNMX 19-R40:6640
SKU DOR6752365
Primary Use:
Double-sided scarfing insert, square with a main cutting edge length of 19.05mm, 8.15mm thick and a working radius of 40mm for tube diameters from 46 to 58mm, 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for deburring the outside of steel and stainless-steel tubes and pipes
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$41.57
-
Original price
$41.57
Original price
$41.57
$41.57
-
$41.57
Current price
$41.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

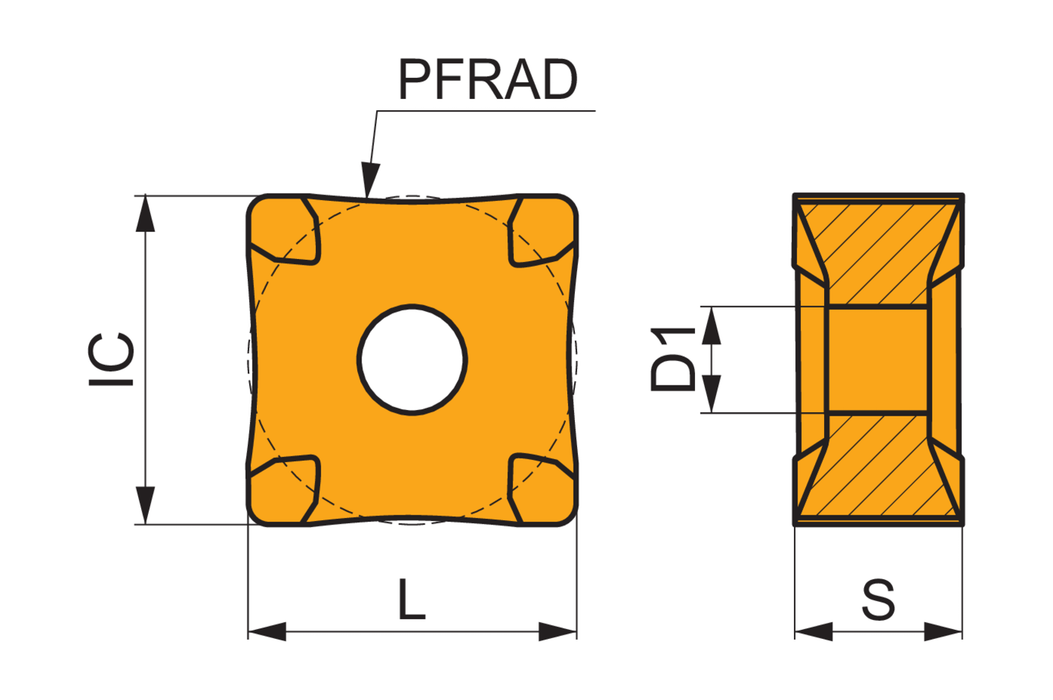

Insert Design: SNMX 19-R
Insert Shape Code: S - square
Insert Thickness: 0.321
Inscribed Circle Diameter: 0.75
Chip Breaker: With chipbreaker -no designation
Grade: 6640
EDP: 6752365
EAN: 3603602877314
MFG Part Number: 6752365
