TNGJ 281025-PF-S01:6630

TNGJ 281025-PF-S01:6630

SKU DOR6752812
by Dormer Pramet
Primary Use: Possible Use:

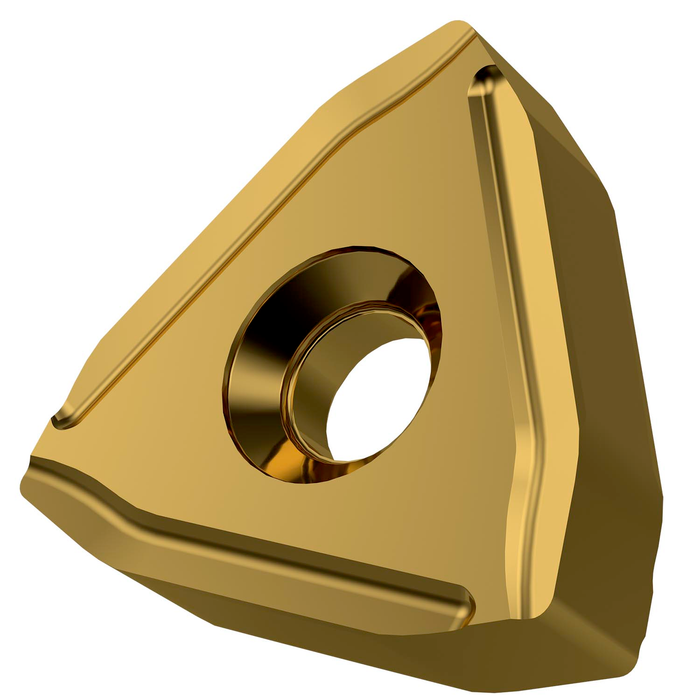

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 28.6mm, 10mm thick for 2.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S01 cutting edge preperation, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for high strength steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 3

For more information about this product, click here
$92.14 - $92.14
$92.14
$92.14 - $92.14
$92.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

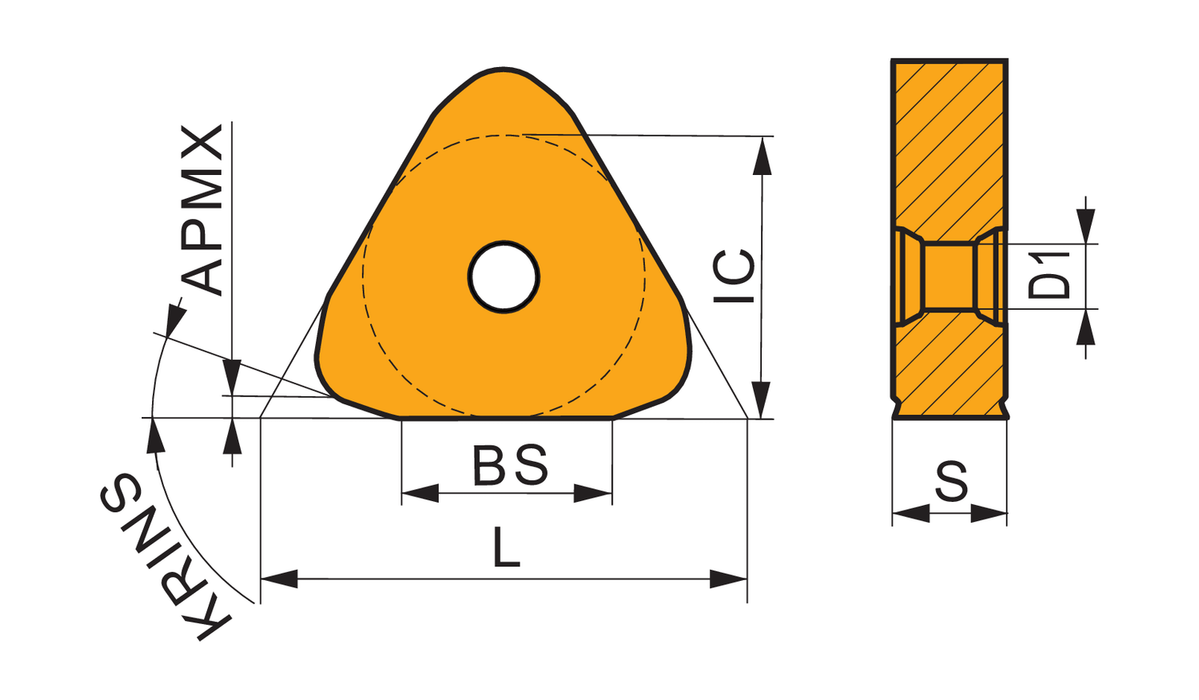

Max. Depth of Cut: 0.098

Insert Design: TNGJ

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.394

Inscribed Circle Diameter: 1.126

Chip Breaker: PF-S01

Grade: 6630

EDP: 6752812

EAN: 3603602881786

MFG Part Number: 6752812
