WNMF 201380-PM-S01:6630

WNMF 201380-PM-S01:6630

SKU DOR6752814
by Dormer Pramet
Primary Use: Possible Use:

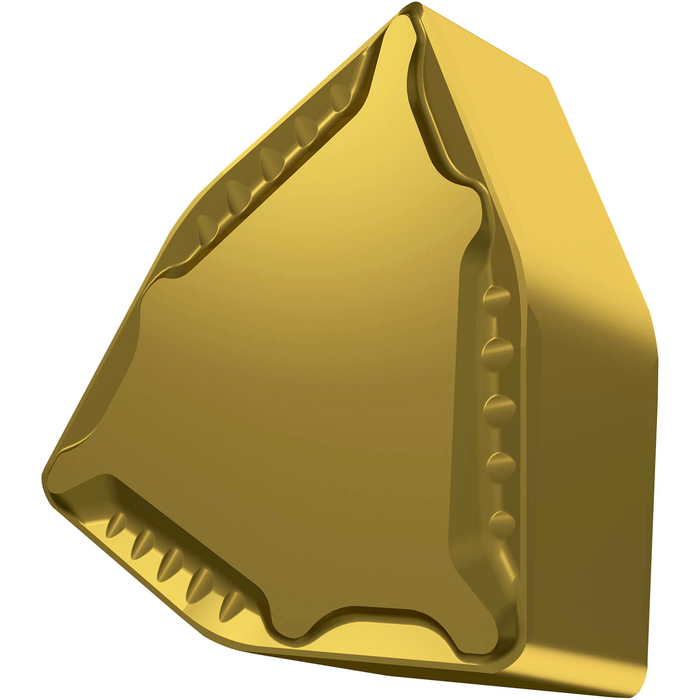

Double-sided negative barpeeling insert, 80° trigon with inscribed circle diameter of 31.75mm, 13mm thick for 8mm depth of cut, indexing accuracy according to ISO-tolerance class-M, chip-breaker PM with S01 cutting edge preperation, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for high strength steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 3

For more information about this product, click here
$120.71 - $120.71
$120.71
$120.71 - $120.71
$120.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

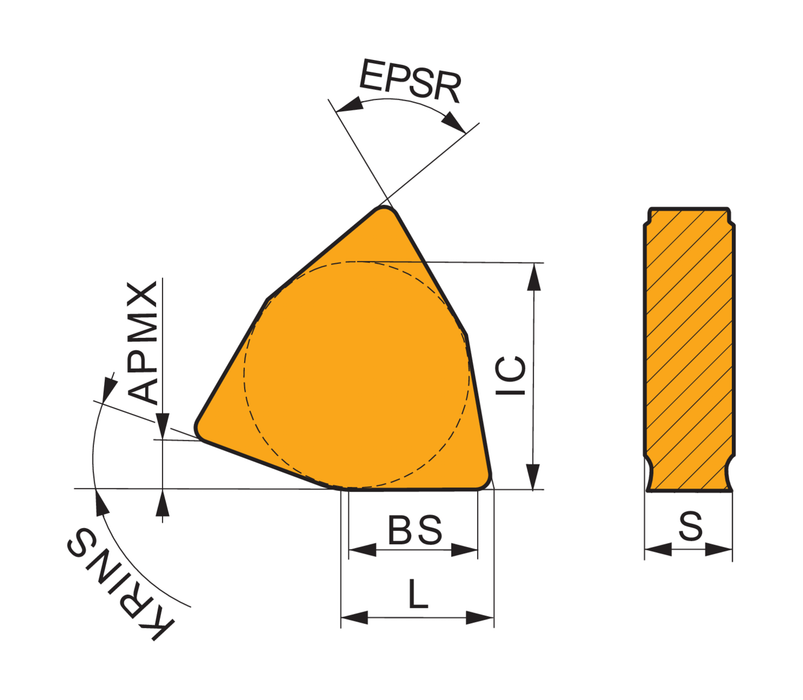

Max. Depth of Cut: 0.315

Insert Design: WNMF

Insert Shape Code: W - trigon

Insert Thickness: 0.512

Inscribed Circle Diameter: 1.25

Chip Breaker: PM-S01

Grade: 6630

EDP: 6752814

EAN: 3603602881809

MFG Part Number: 6752814
