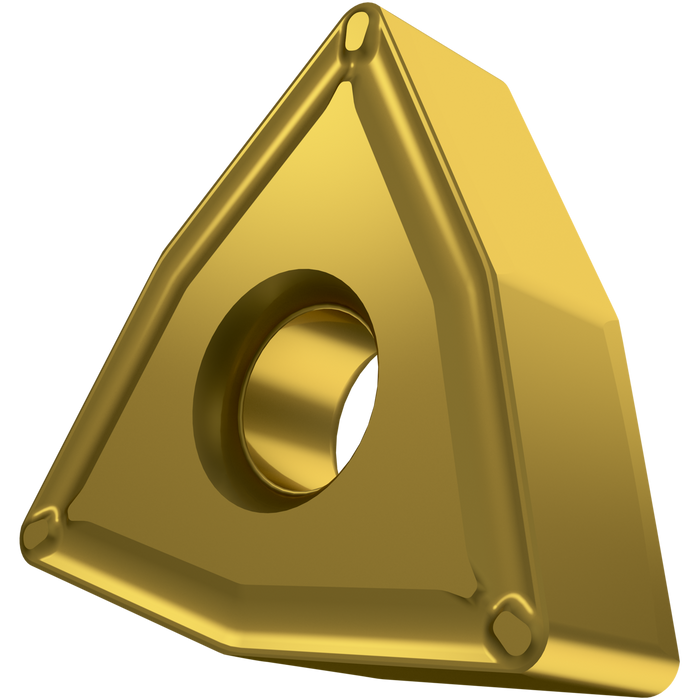

WNGU 150935-PM-S02:6630

WNGU 150935-PM-S02:6630

SKU DOR6752835
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative barpeeling insert, 80° trigon with inscribed circle diameter of 22.225mm, 9.52mm thick for 3.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S02 cutting edge preperation, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for medium strength steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$65.71 - $65.71
$65.71
$65.71 - $65.71
$65.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

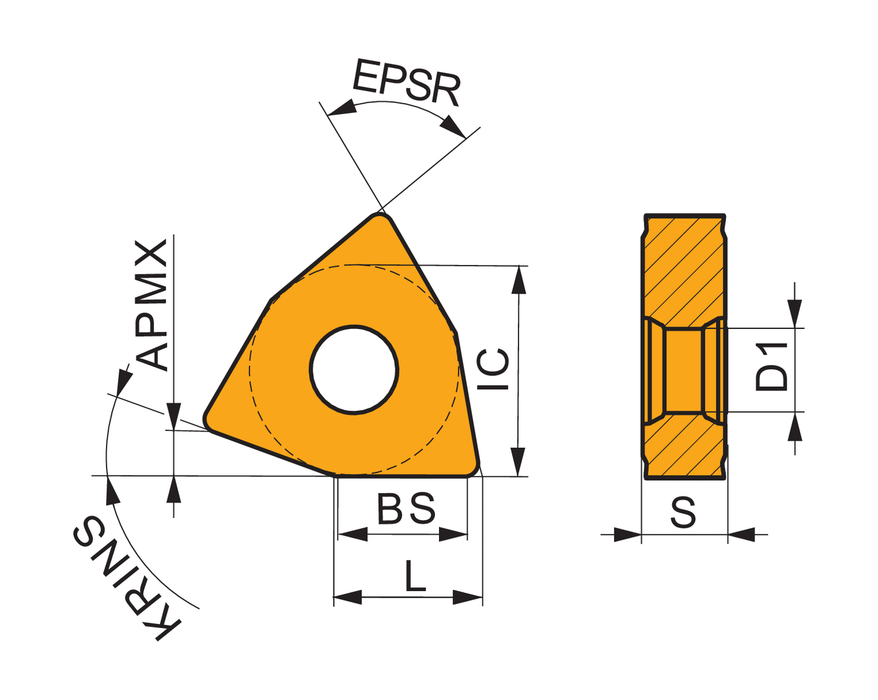

Max. Depth of Cut: 0.138

Insert Design: WNGU

Insert Shape Code: W - trigon

Insert Thickness: 0.375

Inscribed Circle Diameter: 0.875

Chip Breaker: PM-S02

Grade: 6630

EDP: 6752835

EAN: 3603602882011

MFG Part Number: 6752835
